Specifications

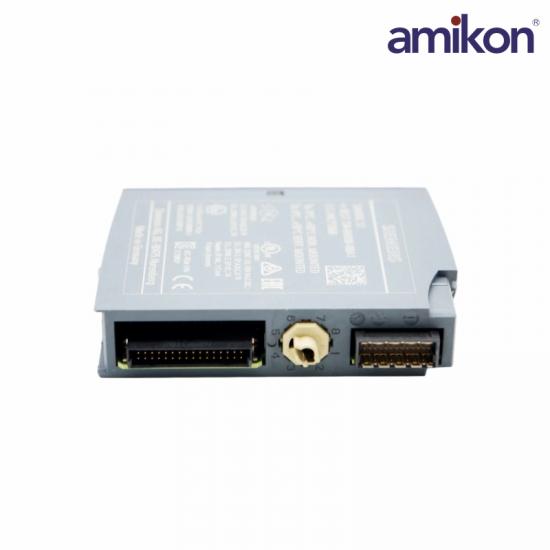

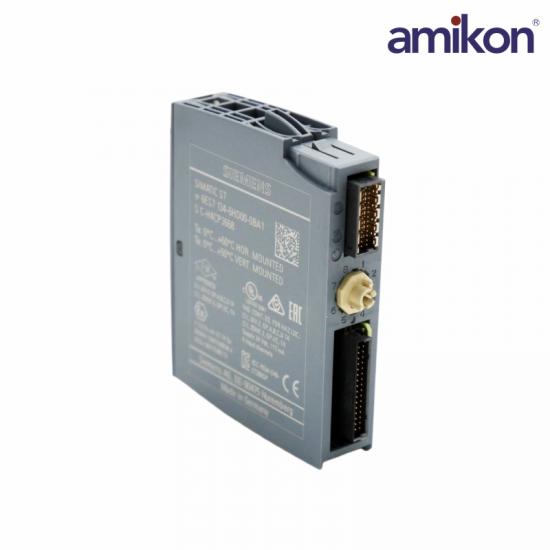

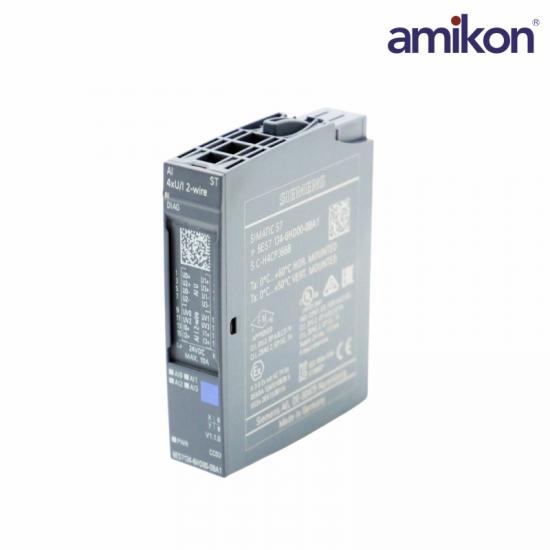

The Siemens 6ES7134-6HD00-0BA1 is an analog input module designed for the SIMATIC ET 200SP system, offering four channels for current or voltage measurement using a 2-wire standard configuration. This module is compatible with BU type A0 and A1, identified by color code CC03, and features integrated module diagnostics for quick fault detection. With a resolution of 16 bits and a measurement accuracy of +/-0.3%, the 6ES7134-6HD00-0BA1 ensures reliable and precise data collection, making it suitable for demanding industrial applications.

Frequently asked questions：

Q1: What is the Siemens 6ES7134-6HD00-0BA1 used for?

A: The 6ES7134-6HD00-0BA1 is a 16-bit analog input module for SIMATIC ET 200S systems, used to accurately acquire analog signals from sensors and field devices in industrial .

Q2: What is the 6ES7134-6HD00-0BA1 resolution and accuracy of this module?

A: The module provides 16-bit resolution with an accuracy of ±0.3%, ensuring precise measurement of input signals.

Q3: What is the 6ES7134-6HD00-0BA1 rated supply voltage for the module?

A: The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.

Q4: What is the 6ES7134-6HD00-0BA1 output current capability of the 6ES7134-6HD00-0BA1?

A: The maximum output current is 20 mA, with a short-term peak of 50 mA per channel for up to 10 seconds.

Q5: Where is this 6ES7134-6HD00-0BA1 analog input module typically applied?

A: It is commonly used in process monitoring, industrial , and control systems where high-accuracy analog signal acquisition is required.

Product Applications

Automobile manufacturing plant: Analog data acquisition for body workshop and painting workshop.

Steel/precious metal smelting plant: Monitoring parameters such as furnace temperature, pressure, and flow rate.

Water treatment plant: Pressure and liquid level monitoring for pumping stations and wastewater treatment processes.

Textile machinery factory: Precisely controlling the working state of textile machines.

Power and equipment factory: Integrated in the power distribution system or equipment control cabinet.

Module Key Features

Model: SIMATIC ET 200SP, AI 4xU/I 2-wire ST.

Function: Standard (ST) analog input, supporting 2-wire input.

Installation: Suitable for BaseUnit (BU) of Type A0/A1.

Function: Applicable for high-precision measurement and control requirements.
