Category：Drives

Product Line：SMC-3

Part Number：150-C201NBD

Weight：61.06 lbs (27.70 kg)

Current Rating：201 A

Rated Voltage：200–460V AC

Input Line：200–460V AC, 3-Phase, 50/60 Hz

Wiring：3-Wire

Control Voltage：120 / 240 VAC

Compatibility：Delta Compatibility

Enclosure Type：Open

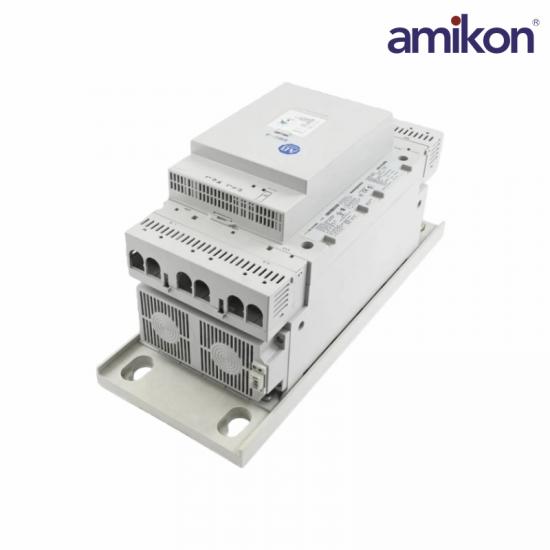

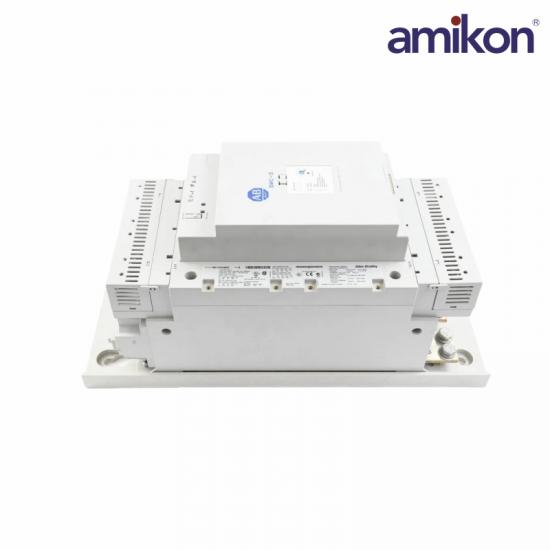

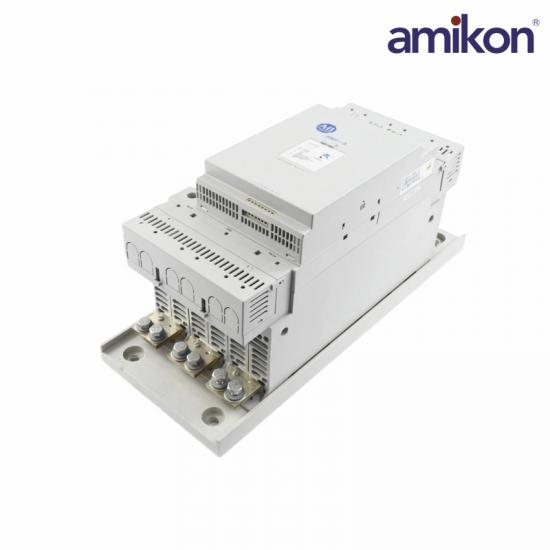

The product with part number 150-C201NBD is a Smart Motor Controller that belongs to the SMC-3 product family. This Smart Motor Controller product line is a solid-sate device with built-in Microprocessor technology for intelligent implementation of advanced motor control with inherent equipment protection.

This SMC-3 controller is capable of operating in Two (2) modes, as Line Controller or Delta Controller. With Line controller function, the output of the controller is 60.0 Hp at 200VAC, 75.0 HP at 230VAC, 150.0 Hp at 460 VAC while for Delta Controller, the controller produces an output of 100.0 Hp at 200VAC, 125.0 HP at 230 VAC and 250 HP at 460 VAC supply.

This controller has an integral auxiliary contact that can be supplied with a maximum voltage of 240VAC. The controller’s trip rating is 120% of motor Full Load Current (FLA).

Frequently asked questions：

Q1: What is the 150-C201NBD used for?

A: The 150-C201NBD is used to control and protect industrial motors, providing smooth starting and reliable operation.

Q2: What is the current rating of the 150-C201NBD?

A: It has a rated current of 201 A.

Q3: What voltage range does the 150-C201NBD support?

A: The controller supports 200–460 V AC.

Q4: What applications is the 150-C201NBD suitable for?

A: It is commonly used in pumps, compressors, conveyors, and heavy industrial machinery.
