Product Line:SMC-Flex

Part Number:150-F251NBDB

Weight:61.00 lbs (27.67 kg)

Series:Panelview 300

Input Voltage:200-480 Volts AC

Enclosure Type:Open

Display Type:LCD

Operating Temperature (Open):-5 to 50 Degrees, Celsius

Operating Temperature (Enclosed):-5 to 40 Degrees, Celsius

Storage Temperature:-20 to 75 Degrees, Celsius

Altitude (Maximum):2000 Meters (6560 Feet)

Humidity:5 to 95% (non-condensing)

Pollution Degree:2

Controller Type:Bulletin 150, Solid State Controller

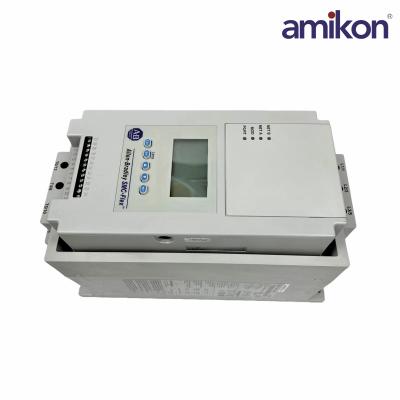

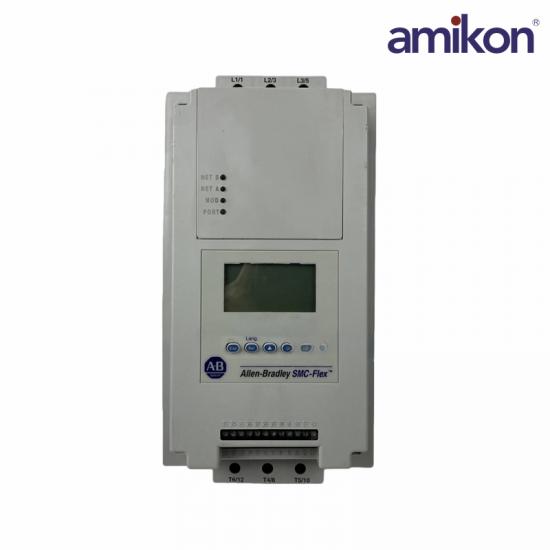

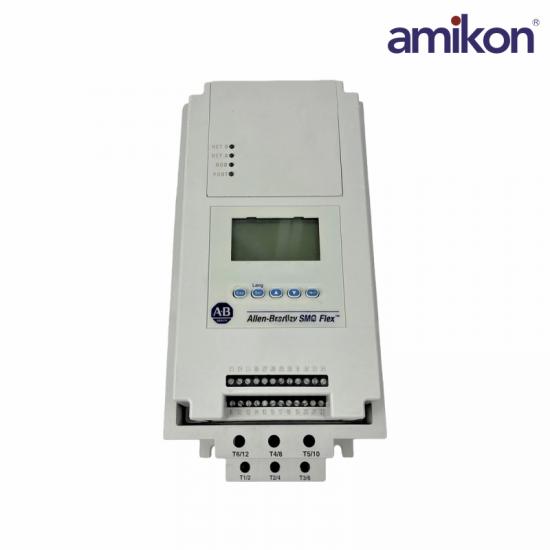

The 150-F251NBDB SMC-Flex Smart Controller contains a front keypad and a backlit LCD display, with the option of power and control wiring. For power wiring, the SMC-Flex controller contains a standard squirrel-cage induction motor or a Wye-Delta, six-lead motor. With respect to control wiring, the SMC-Flex uses a 2-and-3-wire control for a variety of applications. One DPI is included for connection to optional human interface and communication modules. Starting and stopping modes on the 150-F251NBDB include soft start, current limit start, dual ramp, full voltage, linear speed acceleration, preset slow speed, and soft stop. Protection and diagnostics options include power loss, line fault, voltage unbalance, excessive starts per hour, phase reversal, undervoltage, overvoltage, controller temperature, stall, jam, open gate, overload, underload, and communication fault.
