Product Line: 1715 Redundant I/O

Part Number: 1715-TASOF8

Module Type: Termination Assembly – Analog Output (Simplex)

Supported Modules: 1715-OB8DE

Weight: 3.00 lbs (1.36 kg)

Screw Torque: 0.5 N·m

Wire Size Range: 22 to 16 AWG

Power Dissipation: Maximum 3.6 Watts

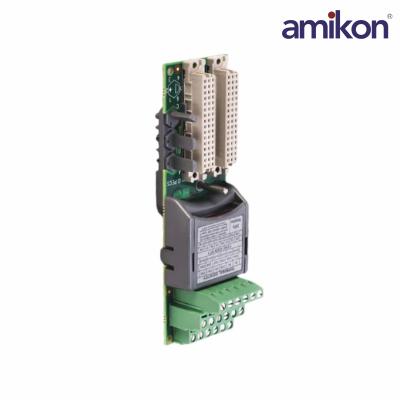

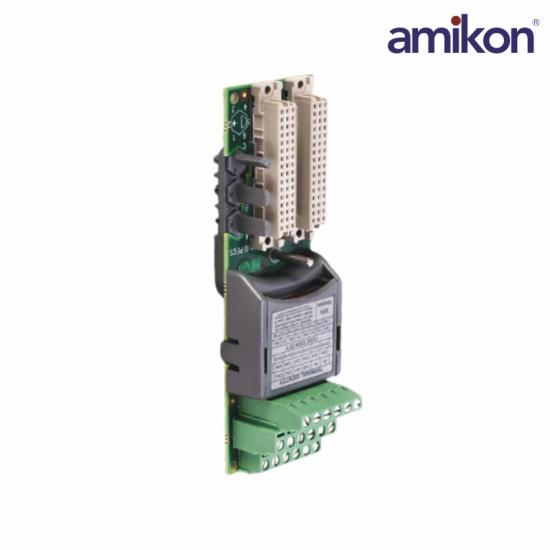

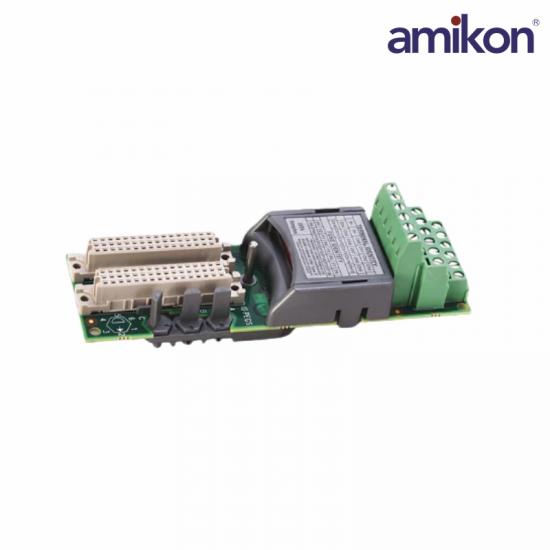

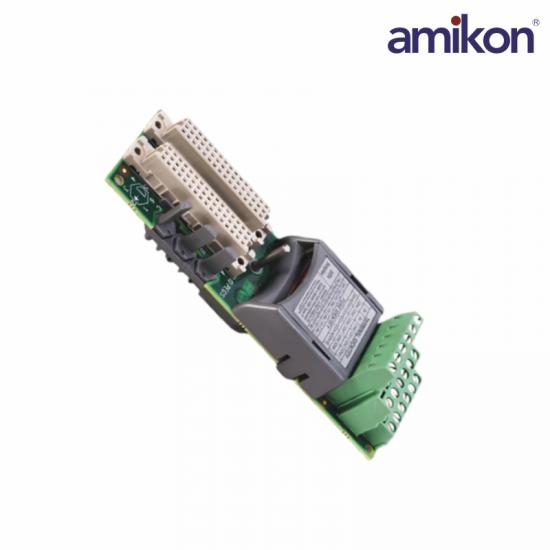

The 1715-TASOF8 is an 8-channel redundant I/O module termination assembly manufactured . It is rated at 0 to 24 milliamperes per channel, 18 to 32 Volts DC, and 3.6 Watts maximum power dissipation. This termination assembly is built to meet the demands of standard and hazardous industrial locations that require the use of the 1715 Redundant I/O systems. The 1715-TASOF8 supports DIN rail and panel mounting, and it uses a 5 Amps fuse, and it has a good immunity for radiated RF, surge transients, conducted RF, and electrostatic discharge. It can be installed with shielded copper wires that are 22 to 16 AWG rated 185 degrees Fahrenheit or more.

Frequently asked questions：

1.What is the main function of the 1715-TASOF8?

It serves as a termination assembly that connects field wiring to supported 1715 analog output modules in a redundant I/O system.

2.Which modules are compatible with this termination assembly?

The 1715-TASOF8 is designed to work with the 1715-OB8DE module.

3.What wire sizes can be used with the 1715-TASOF8?

It supports wire sizes from 22 AWG to 16 AWG, allowing flexible field wiring.
