1746-OX8 8-Point Isolated Relay Output Module

1746-OX8
1746-OX8
1746-OX8

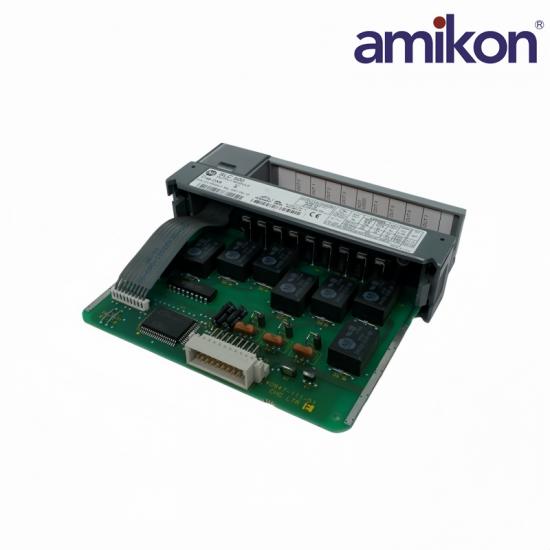

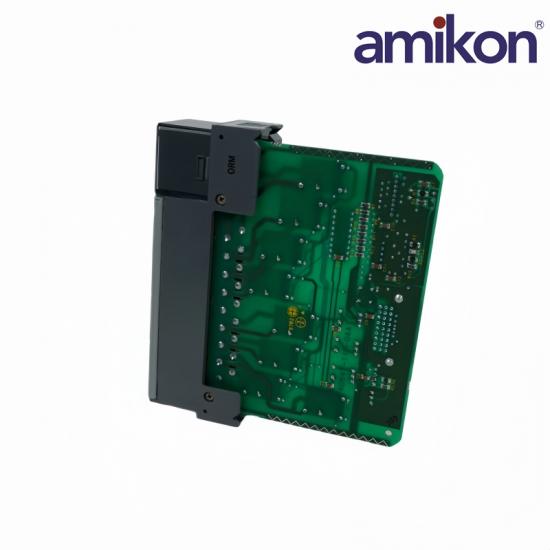

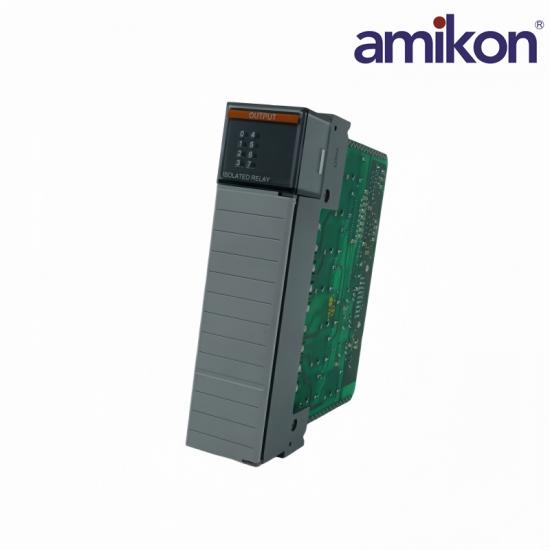

1746-OX8 8-Point Isolated Relay Output Module

✉  INQUIRE NOW

ORIGINAL MANUFACTURER · Industrial Discrete I/O

1746-OX8

Genius 8-Point Isolated Relay Output Module

MANUFACTUREROriginal Manufacturer
MODEL1746-OX8
PART NUMBER1746-OX8
PRODUCT TYPEGenius 8-Point Isolated Relay Output Module
SYSTEM FAMILYIndustrial Discrete I/O
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    1746-OX8
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Brand/Manufature:

    PLC module
  • Product Origin:

    USA
  • Lead Time:

    Brand New And 100% Original
  • Condition:

    IN STOCK
  • Certificate:

    12 Months

PLC Module

1746-OX8

Price and Availability Inquiry

The 1746-OX8 is a Isolated Relay Output Module for industrial automation applications. Confirm the complete model, electrical ratings, interfaces and installed configuration before ordering.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 1746-OX8 and required quantity in your inquiry.

PLC MODULE 1746-OX8

Technical Specifications

Verified identification, electrical, compatibility, installation and ordering data for 1746-OX8.

01Product IdentityModule identification
MODEL1746-OX8
PRODUCT TYPEIsolated Relay Output Module
OUTPUT POINTS8
OUTPUT TYPEAC/DC relay contacts
02Output ConfigurationRelay output architecture
VOLTAGE CATEGORYAC/DC relay
OUTPUT ISOLATION8 individually isolated points
DC OPERATING VOLTAGE5–125 V DC
AC OPERATING VOLTAGE5–265 V AC
03Switching & ResponseVerified relay operating data
SIGNAL DELAY10 ms on; 10 ms off (resistive load)
OFF-STATE LEAKAGE0 mA maximum
MINIMUM LOAD CURRENT10 mA at 5 V DC
OPERATING SHOCK10 g
04Power & EnvironmentBackplane and operating data
BACKPLANE CURRENT AT 5 V85 mA
BACKPLANE CURRENT AT 24 V90 mA
HEAT DISSIPATION8.60 W maximum
OPERATING TEMPERATURE0–60 °C

PLC MODULE 1746-OX8 PRODUCT SUPPORT

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 1746-OX8.

01

What distinguishes the outputs on 1746-OX8?

It provides eight relay outputs with individual isolation and one common per output, supporting separate AC/DC load circuits.

02

How should each isolated common be wired?

Treat every output/common pair as a separate circuit and verify conductor identification, voltage class and separation before energizing.

03

Which load characteristics must be checked?

Compare steady-state current, inrush, switching frequency and load type with the module rating; inductive loads require suitable suppression.

04

How should the removable terminal block be handled?

Isolate all field power, label each conductor and verify terminal position and common assignment before transferring the block.

05

What migration risks apply to relay outputs?

Do not assume another output module has the same isolation, common arrangement or contact behavior; compare the wiring diagram channel by channel.

06

How should output commissioning be completed?

Command and observe each output individually, confirm status indication and field voltage, then test the controlled device under safe conditions.

07

What information is required to order 1746-OX8?

Provide 1746-OX8, chassis reference, load voltages and types, terminal-block requirement, module revision and quantity.
