Part Number: 1747-L533

Weight: 0.56 lbs (0.26 kg)

Module Type: SLC 5/03 Processor

Inputs: 4096

Outputs: 4096

User Memory: 32,000 Words

Program Scan Time: 1 millisecond

I/O Scan Time: 0.225 milliseconds

I/O Chassis: 3

Chassis Module Slots: 30

Communication: DH-485, RS-232

Backup Memory: Flash

Backplane Current (5 Volts DC): 500 milliamps

Backplane Current (24 Volts DC): 175 milliamps

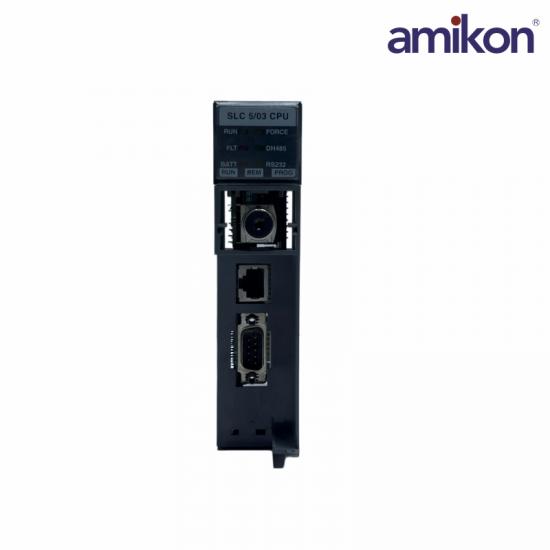

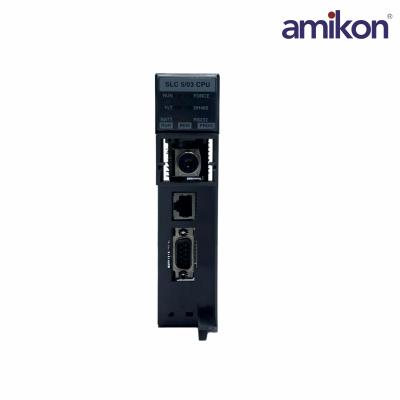

The 1747-L533 is an SLC 5/03 Processor that is a part of SLC 500 system. It is a small, simple and pocket-friendly processor with a wide range of applications such as small process control, material handling, HVAC control, etc. It contains a PLC-5 processor-based advanced instruction set. It can be stand-alone or distributed throughout the system for SCADA applications. The 1747-L533 processor has total user memory of 32K words with 28K words for data/program and 4K words for data. It has up to 4096 inputs, 4096 outputs, and 480 local analog I/Os. It has a program scan time per keyword of 1 ms and 0.225 ms of I/O scan time. The 1747-L533 has a backplane current of 500 mA at 5V DC and 175 mA at 24V DC. It has a maximum 2 local I/O chassis with a maximum of 30 module I/O slots in the local I/O chassis. For communication, the 1747-L533 uses DH-485 and RS-232 ports that can be configured for connection to a 1761-NET-AIC converter.

Frequently asked questions：

1.What is the 1747-L533?

The 1747-L533 is a Processor Unit Controller for industrial PLC applications.

2.What is the user memory of the 1747-L533?

The user memory is 32,000 words.

3.What is the program scan time of the 1747-L533?

The program scan time is 1 millisecond.

4.What is the I/O scan time of the 1747-L533?

The I/O scan time is 0.225 milliseconds.

5.How many I/O chassis does the 1747-L533 support?

It supports 3 I/O chassis.
