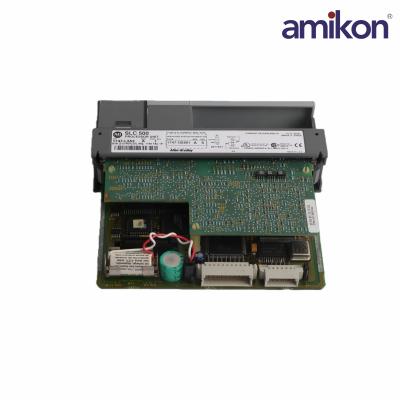

Part Number: 1747-L553

Module Type: SLC 5/05 Processor

Inputs: 4096

Outputs: 4096

Analog I/O: 480

User Memory: 64,000 words

Memory: Up to 64 KB, battery-backed RAM

Backup Memory: 1747-M13

Program Scan Time: 0.9 ms/K

I/O Scan Time: 0.225 milliseconds

I/O Chassis: 3

Chassis Module Slots: 30

Communication: Ethernet, RS-232

Ambient Temperature: 0 to 60 °C

The 1747-L553 is an SLC 5/05 processor that belongs to the SLC 500 Programmable Controller (PLC) platform. This controller has the highest memory among the SLC 5/05 category which is 64 KB memory. It has integrated RS32 Sub-D 9-Pin connector for establishing peer-to-peer communication with locally installed Human Machine Interface (HMI) or a programming workstation. It also has an integrated Ethernet that is ideally used for communication over a long distance, minimum of 100 meters at 10/100 mbps transmission speed. It is also ideal for establishing connection to multiple devices at a time. These Two (2) port may also be used simultaneously without affecting the processor’s  execution capability.

Frequently asked questions：

Q1: What is the 1747-L553 used for?

A: It’s a CPU module that runs user programs and controls I/O modules in an SLC 500 PLC system.

Q2: How much memory does the 1747-L553 have?

A: It has up to 64 K words of user memory, backed by battery RAM.

Q3: What communication interfaces does this module include?

A: It includes Ethernet and RS-232 ports for programming and device integration.

Q4: How many I/O points can it manage?

A: It supports up to approximately 4096 digital I/O points and 480 analog I/O when fully expanded.
