Description：

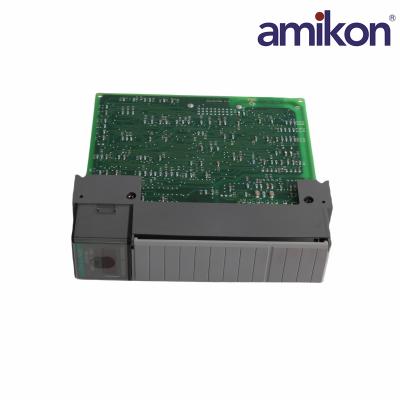

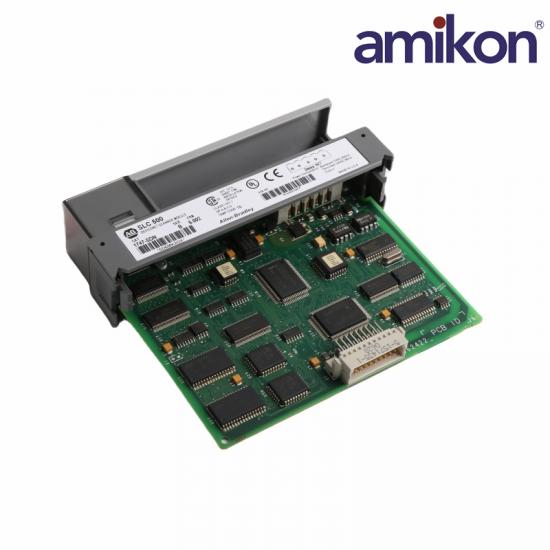

The 1747-SDN is a DeviceNet communication scanner. This scanner module is used to communicate with DeviceNet capable devices over the DeviceNet network or through DeviceNet adapter modules. This module may operate in slave mode; send and receive message in Polled, Strobe, Change-of-State and Cyclic I/O configuration. It also supports pass through configuration wherein, the 1747-SDN acts as a bridge and connects a separate DeviceNet network.

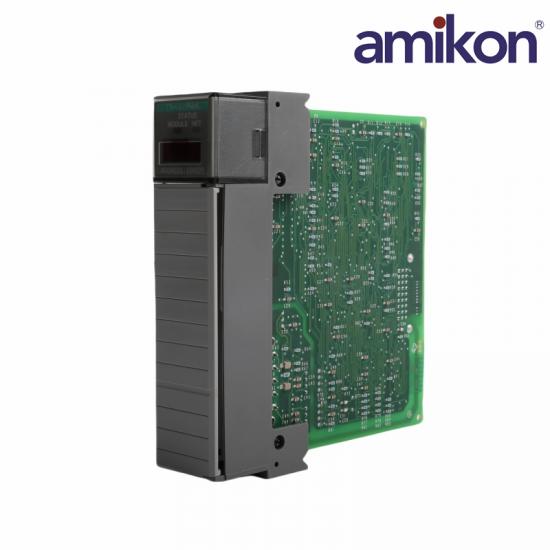

The 1747-SDN’s front panel is installed with Two (2) LED status indicators such as Module indicator to report the module’s operation and a Network status LED that indicates the DeviceNet communication link. It also has an LCD display that provides module address and error indication. The DeviceNet terminal is installed behind the access door and provided with a 10-pin linear plug inserted into the DeviceNet port.

Specification：

Frequently asked questions

What are this module’s communication options?
The 1747-SDN uses Ethernet and RS-232 communication.

What type of memory does this module use?
The 1747-SDN uses flash backup memory.

What are compatible processors for use with the 1747-SDN?
The 1747-SDN supports SLC 5/02 processor and higher.

What is the maximum number of DeviceNet nodes does the 1747-SDN support?
Up to 63 DeviceNet nodes are supported by the 1747-SDN

What is the data transmission rate supported by the 1747-SDN?
The 1747-SDN supports 125 kbps transmission.

Product Applications

Automotive Manufacturing: Used in body welding, final assembly lines, and parts processing to achieve high-speed networking of robots, sensors, and main control PLCs.
Food and Beverage: Used in filling, packaging, and conveyor belt production lines to precisely control the sequence and actions of equipment at each workstation.
Chemical and Salt Chemical Industry: Connects various explosion-proof or remote instruments and actuators in continuous production and distributed measurement and control systems.
Metallurgy and Glass Manufacturing: Used in blast furnace charging systems, glass processing, and rolling production lines to collect real-time data from harsh environments.
Paper and Chemical Fiber Textile: Used in cleanroom paper or chemical fiber production lines to synchronize multi-motor drives and complex transmission control points via a bus.
