Part Number: 1761-L20AWA-5A

I/O Count: 20 points

Input Type: 120V ac

Memory: 1 K EEPROM (737 instruction words, 437 data words)

Communication Port: RS232

Analog Circuits: 4 Inputs, 1 Output

Protocol: DF1

Safety Feature: Master Control Relay

Digital Outputs: 8 Contact Outputs

No. of Discrete Inputs: 12

Dimensions (L x D x H): 7.87 x 2.87 x 3.15 inches

Input Voltage Type: 120 Volts AC

Voltage Range: 79-132 Volts AC

Output Type: 8 Relay Outputs

UPC: 10662072766498

Discrete Output Voltage: 24-125 VDC; 0-240 VAC

Analog Input: 4 Inputs

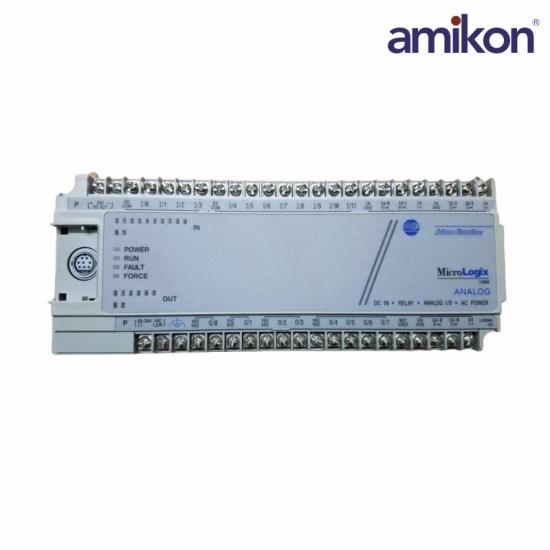

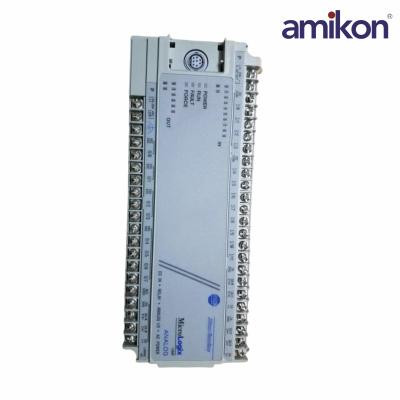

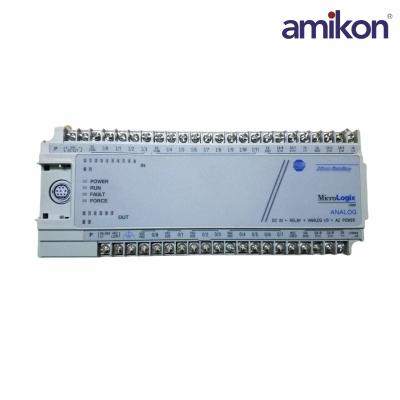

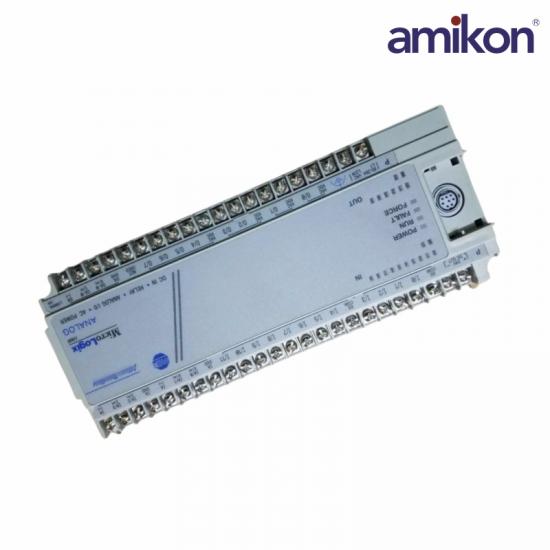

The 1761-L20AWA-5A is an controller. It is an AC power supply controller. This controller is provided with Twelve (12) AC inputs, Four (4) analog inputs, Eight (8) relay outputs, and One (1) analog output. It also has a DF1 RS-232 communication port. The entire controller measures 7.87 x 2.87 x 3.15 inches. It also has several LED indicators, namely status LEDs, input LEDs, and output LEDs. It also has a 1K EEPROM memory that can handle up to 437 data-table words and 737 instruction words.

This controller is capable of being programmed to perform Basic sequences such as Bit Operation, Timers and Counter instructions. Aside from bit operations, Comparison, Math or Arithmetic operations, Data Handling Instructions, Program Flow Control, Message Instructions and other operations.

The analog input signal type compatible for this controller are Voltage signal with range of -10.5 to 10.5 VDC and Current signals with range of -21 to 21 mA. The analog data is converted with a resolution of 16-bit signed integer with input coding of -32767 to +32767.

This controller supports vertical or horizontal mounting with the use of a DIN Rail or mounting screw option. When wiring the controller, use #14 to #22 AWG Solid wires or #16 to #22 AWG Stranded wires.
