1762-IF4 4-Channel Analog Input Module

1762-IF4
1762-IF4
1762-IF4

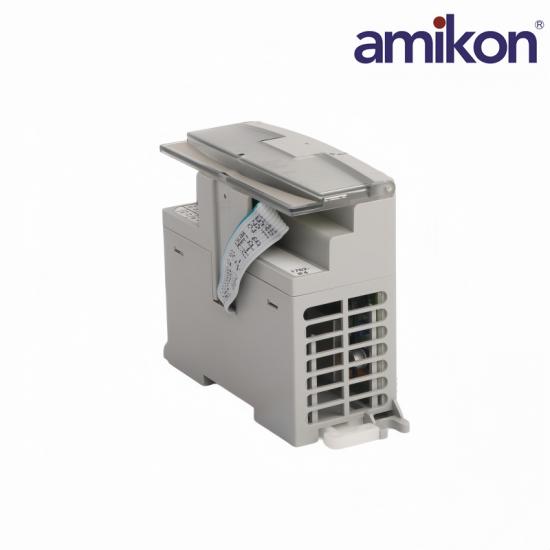

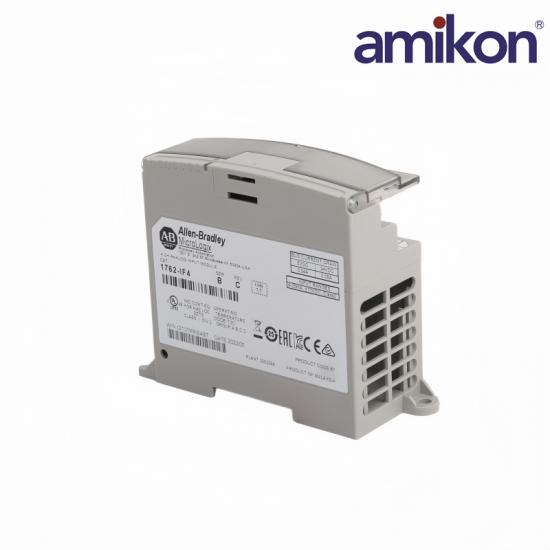

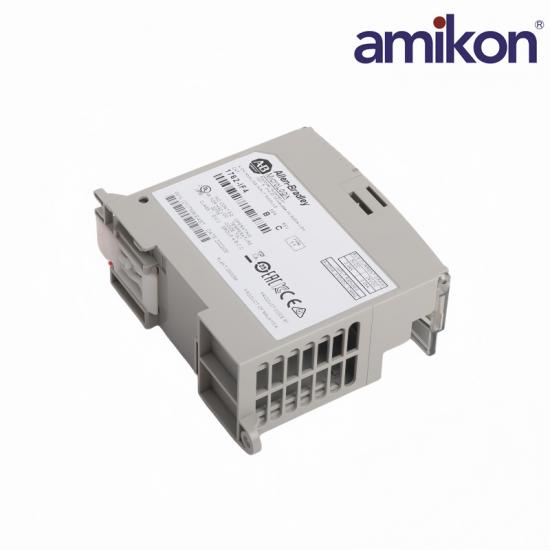

1762-IF4 4-Channel Analog Input Module

✉  INQUIRE NOW

PLC MODULE · ANALOG I/O MODULES

1762-IF4

4-Channel Current/Voltage Analog Input Module

MANUFACTURERPLC Module
MODEL1762-IF4
PART NUMBER1762-IF4
PRODUCT TYPEDifferential Analog Input Module
SYSTEM FAMILYAnalog I/O Modules
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    1762-IF4
  • Product Origin:

    USA
  • Brand/Manufature:

    PLC Module
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

PLC Module Analog I/O Modules

1762-IF4

Price and Availability Inquiry

The 1762-IF4 is a four-channel differential analog input module supporting bipolar voltage and current signals with selectable conversion and channel diagnostics.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 1762-IF4 and required quantity in your inquiry.

1762-IF4

Technical Specifications

Official identification, electrical, interface, installation and ordering data for the 1762-IF4 4-channel current/voltage analog input module.

01Product IdentityOfficial model identification
ManufacturerPLC Module
Article Number1762-IF4
Product Designation4-Channel Current/Voltage Analog Input Module
Product FamilyAnalog I/O Modules
02Analog InputsPublished signal configuration
INPUT CHANNELS4 differential bipolar
VOLTAGE RANGE−10…10 V DC
CURRENT RANGE−21…21 mA full scale
RESOLUTION15 bit
03Conversion & AccuracyPublished performance data
CONVERTERSuccessive approximation
UPDATE TIME130–530 ms selectable
ACCURACY AT 25 °C±0.24% full scale typical
COMMON-MODE REJECTION>55 dB at 50/60 Hz
04Power & MechanicalInstallation data
5 V DC DRAW40 mA
24 V DC DRAW50 mA
DIMENSIONS90 × 40 × 87 mm
OPERATING RANGE−20–65 °C

1762-IF4 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 1762-IF4.

01

Which signals can 1762-IF4 measure?

It accepts four differential bipolar voltage or current inputs, including −10…10 V DC and a −21…21 mA full-scale range.

02

How many channels are available?

The module provides four configurable differential analog input channels.

03

Which conversion resolution is published?

The official product data lists 15-bit analog input resolution.

04

Can the update rate be adjusted?

Yes. Published typical update choices range from 130 ms to 530 ms, depending on the selected filtering and configuration.

05

Which diagnostics are available?

Channel status reports overrange, underrange, open-circuit or module-error conditions through the input data.

06

How should analog wiring be installed?

Use shielded signal cable, keep it separate from power wiring, terminate shields consistently and verify current or voltage mode per channel.

07

Which information should be sent before replacement?

Provide 1762-IF4, channel ranges, scaling format, wiring diagram, supply budget and clear photos of the module and terminal labels.
