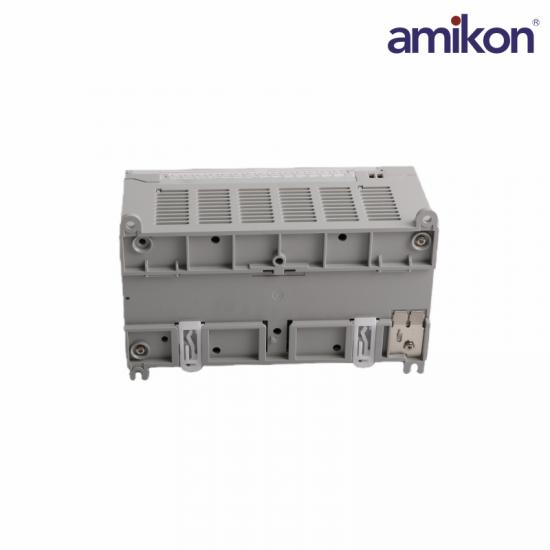

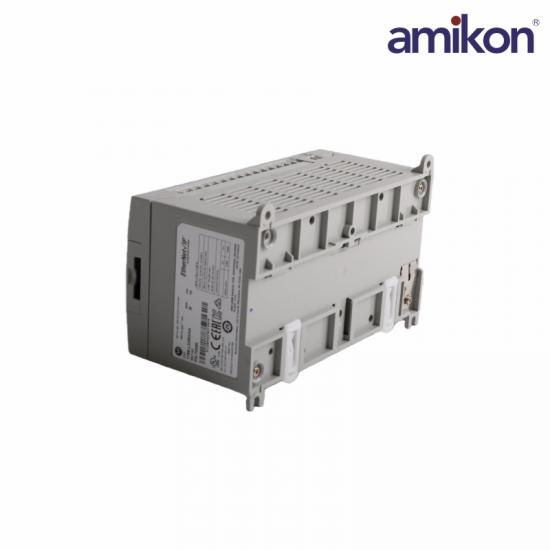

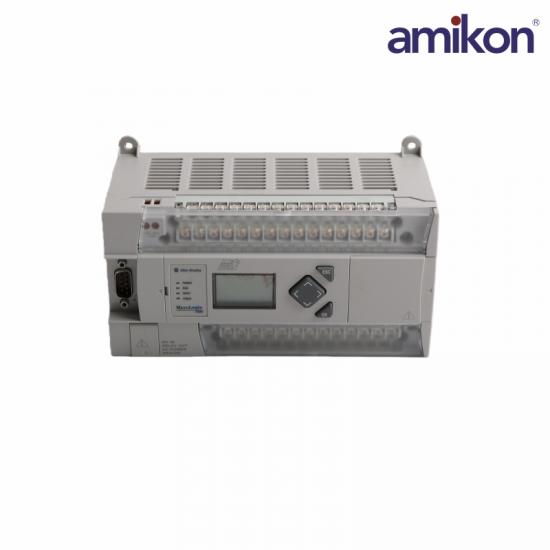

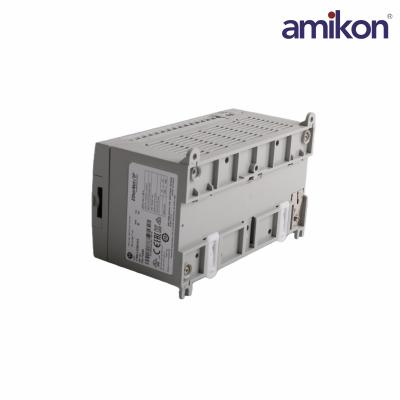

Part Number: 1766-L32BWA

Weight: 2.06 lbs (0.94 kg)

Module Type: Controller

Inputs: 12 Digital Fast 24V DC, 8 Digital Normal 24V DC

Outputs: 12 Relay

Number of I/O: 32 points

Operating Power: 110–240 V AC

Number of Discrete Inputs: 20 (120 V AC)

Channel Count: 20 IP, 12 OP

Analog Input Signal Range: None

Memory: 20 KB

Number of Discrete Outputs: 12 Relay

Feature: Built-in RTC

Power Supply: 100–240 V AC

Input Power: 100–240 V AC

Operating Frequency: 47–63 Hz

Wire Size: 22–14 AWG

Power Consumption: 120 VA

Cable Length: 30 m

Power Supply Inrush Current: 120 V AC: 25 A for 8 ms; 240 V AC: 40 A for 4 ms

Resolution: 12 bit

This controller has embedded Twelve (12) Fast 24V DC Inputs, Eight (8) standard 24VDC inputs and Twelve (12) Relay outputs. The High-speed inputs support fast switching devices with rated frequency of 100 kHz. The standard 24VDC Inputs is used for general purpose application while the Relay Outputs may be operated with different voltage categories, for energizing electrical loads with different nominal voltage actuations.

The integrated communication ports include One (1) combo isolated RS232/RS485port, One (1) RS232 communication port and One (1) Ethernet I/P port. These communication ports are capable of being operated individually to communicate with different partner devices. Supported protocols include DF1, DH485, ASCII, DNP3 Serial, DNP3 Ethernet, MODBUS RTU, MODBUS Ethernet, and ASCII protocol.

Frequently asked questions：

Q1: What is the 1766-L32BWA used for?

A: It is used as a controller for small- to medium-scale systems with digital I/O control.

Q2: How many outputs and I/O points does this controller have?

A: It has 12 relay outputs and 32 total I/O points.

Q3: What is the operating power range of the 1766-L32BWA?

A: The controller operates with 110–240 V AC.
