Part Number: 1766-L32BWAA

Weight: 3.00 lbs (1.36 kg)

Module Type: Controller

Outputs: (12) Relay, (2) Analog

Number of I/O: 38 I/O points

Operating Power: 110 to 240 Volts AC

Channel Count: (20) IP, (12) OP

Analog Input Signal Range: 0…10.0V DC - 1 LSB

Memory: 20 KB

Feature: Built-in RTC

Number of Discrete Outputs: Twelve (12) Relay

Mounting Options: Panel and DIN Rail

Number of Analog Outputs: Two (2) Single Ended

Power Supply: 100/240V AC

Operating Frequency: 47–63 Hz

Power Consumption: 120 VA

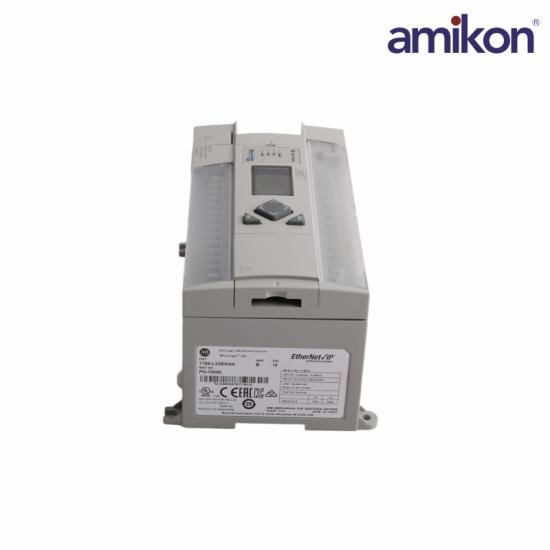

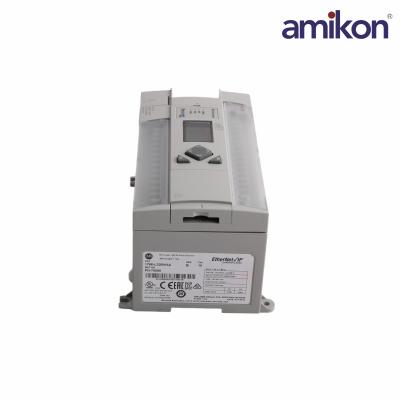

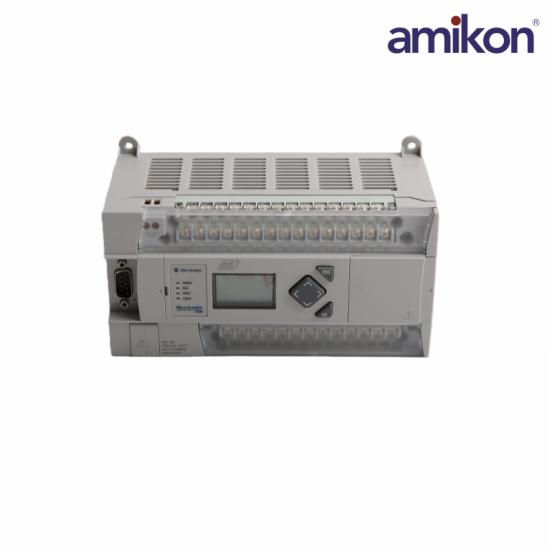

The 1766-L32BWAA is a PLC. It comes with the EtherNet/IP network, online editing capabilities, and a built-in LCD with enhanced network capabilities. There is also a backlight on the LCD to set the network configuration and view the controller and I/O status. The 1766-L32BWAA controller requires 120 to 240 Volts AC input power and it has battery-backed RAM. It supports 32 digital I/O points that consist of 12 digital fast 24 Volts DC inputs, 8 digital normal 24 Volts DC inputs, 12 relay outputs, and 6 analog (12 bits) I/O points with 4 inputs, 2 outputs. It can be expanded with as many as seven 1762 expansion I/O modules. It has dimensions of 3.5 x 7.08 x 3.43 inches and it weighs 2 pounds. For communication, the 1766-L32BWAA has an isolated RS-232/485 port, an Ethernet port, and a non-isolated RS-232 port. It also has an embedded real-time clock to provide a reference for applications that need time-based control. For installation, it has the panel or DIN-rail mounting options with an open enclosure. It is suitable for use in a clean and dry industrial environment with circuits not exceeding Over-Voltage Category II. The 1766-L32BWAA controller comes with an Ethernet port that provides DNP3 protocol support as well as a web server and email capabilities. It has 2 Serial ports with DH485/DF1/Modbus RTU/DNP3/ASCII protocol support, up to 6 embedded 100 kHz high-speed counters, and a 20 KB memory for user programs and data.

Frequently asked questions：

Q1: What is the 1766-L32BWAA?

A: The 1766-L32BWAA is a PLC controller , designed for controlling industrial systems with integrated I/O.

Q2: How many I/O points does it support?

A: The controller has 38 I/O points, including 20 digital inputs (IP) and 12 digital outputs (OP).

Q3: What is the 1766-L32BWAA operating power range?

A: The controller operates on 110 to 240 V AC.

Q4: What analog input signals does it support?

A: It supports 0–10.0 V DC analog inputs with 1 LSB resolution.
