Product Type: Analog Input Module

Number of Inputs: 4 inputs (Differential or Single Ended)

Input Type: Analog Input

Number of Outputs: 2 Single Ended

Power Supply Distance Rating: 8

Input / Output Current Range: 0–21 mA

Current Signal Normal Ranges: 0–20 mA; 4–20 mA

Current Signal Full Range: 0–21 mA; 3.2–21 mA

Input / Output Voltage Range: 0–10.5 VDC

Voltage Signal Normal Ranges: ±10 VDC, 0–10 VDC, 0–5 VDC, 1–5 VDC

Inputs: 4 Isolated Differential

Communication Cable: 4 Point

Series: A and B

Shipping Weight: 2 pounds

Shipping Dimensions: 8 × 8 × 5 inches

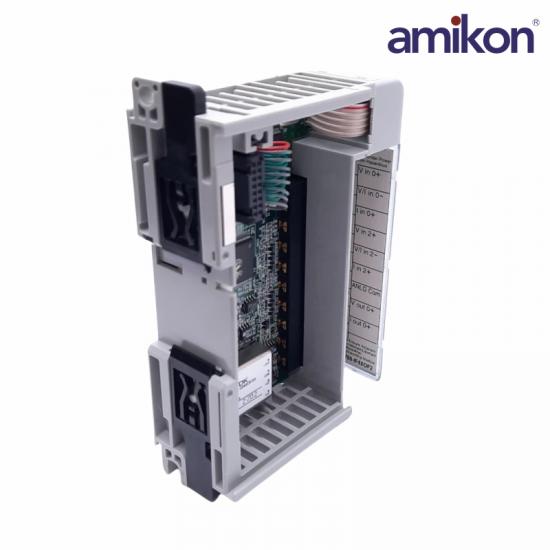

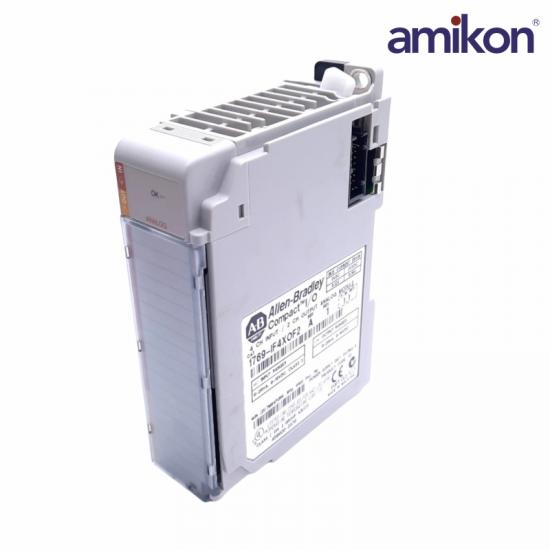

The 1769-IF4XOF2 is a Compact I/O module that feature embedded channels with combination analog input and output interfaces. This module is compatible for use as analog input modules with family of controllers.

The 1769-IF4XOF2 is a cost effective with low resolution conversion. It is ideal for interfacing process variables that does not require high-level of criticality or high-accuracy measurements. This module features an embedded Four (4) analog input channels, configurable for single ended or differential input wiring. The input channel accepts +10V dc or 0 to 20 mA signal types while the output provides analog signals in the form of Voltage with range of 0 to 10V dc and Current with 0 to 20 mA range. Input and output full ranges are 0 to 10.5V dc and 0 to 21 mA.
