Brand/Manufature:
PLC ModuleProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Part Number/Catalog No.: 1769-OF2 |
Current: 0 to 21 mA, 3.2 to 21 mA |
|
Module Type: Analog Output Module |
Power Supply Distance Rating: 8 |
|
Input Type: Analog |
Current Draw @ 5.1V: 120 mA |
|
Conversion Rate: 2.5 ms |
Heat Dissipation: 2.36 W |
|
Step Response: 2.9 ms |
Calibration: None required (guaranteed by hardware design) |
|
Resolution: 14 bits (unipolar); 14 bits plus sign (bipolar) |
Slot Width: 1 |
|
Analog Ranges: |
Communication Cable: 2 Point |
|
Voltage: ±10V DC, 0 to 10V DC, 0 to 5V DC, 1 to 5V DC |
Series: A and B |
|
Current: 0 to 20 mA, 4 to 20 mA |
Wire Size (Solid): 22 to 14 AWG |
|
Full Scale Analog Ranges: |
Shipping Weight: 2 lbs. |
|
Voltage: ±10.5V DC, -0.5 to 10.5V DC, -0.5 to 5.25V DC, 0.5 to 5.25V DC |
Shipping Dimensions: 8 x 8 x 5 in. |

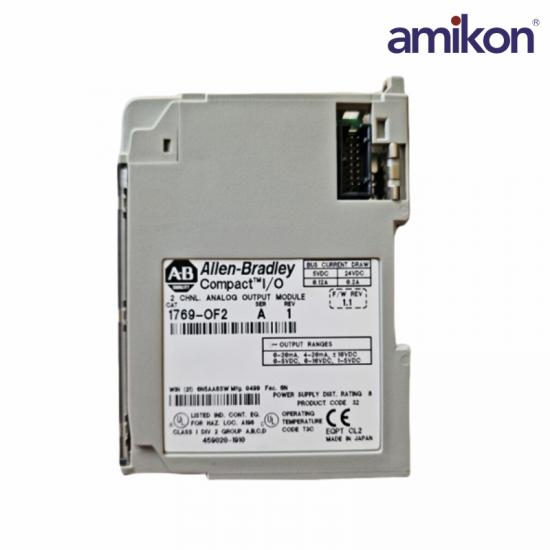

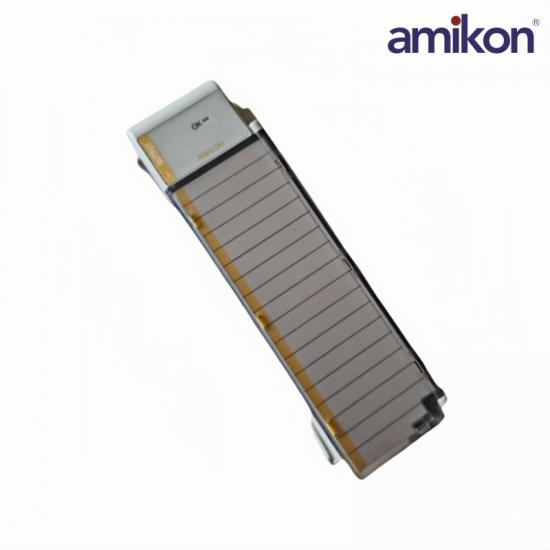

The 1769-OF2 is a Two (2) channel analog output module. This module is a single-slot width module with each channel capable of providing analog voltage and current signals such as ± 10VDC, 0 to 10VDC, 0 to 5VDC, 1 to 5VDC and 0-20 mA and 4-20 mA. This output module may be used to drive modulating devices, re-transmit analog data to another receiving element such as panel meters and data logger and as input of signal isolators and splitters.

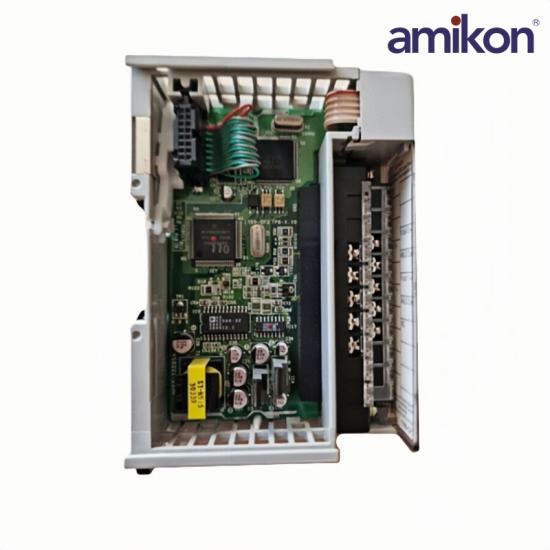

The 1769-OF2 features Two (2) single ended output channels with sigma-delta Digital-to-Analog (DAC) converter. Depending on the configured output signal, the module’s resolution are ±10V dc: Sign + 14 bits, 0.64 mV 0 to +5V dc: Sign + 13 bits, 0.64 mV 0 to +10V dc: Sign + 14 bits, 0.64 mV +4 to +20 mA: Sign + 14 bits, 1.28 µA +1 to +5V dc: Sign + 13 bits, 0.64 mV 0 to +20 mA: Sign + 14 bits, 1.28 µA. Overall, the digital resolution across full range is 14 bits (unipolar); 14 bits plus sign (bipolar) with conversion rate 2.5 ms and step response of 2.9 ms.
The 1769-OF2 output may be linked to Proprotional + Integral + Derivative (PID) controller, used for implementing manual and automatic control of analog control loops. If used with CompactLogix version 20.
