1771-IAD/B 16-Point 120 V AC/DC Input Module

1771-IAD/B
1771-IAD/B
1771-IAD/B

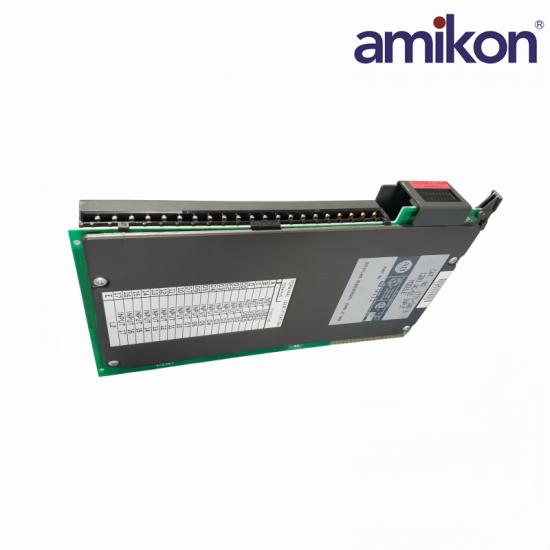

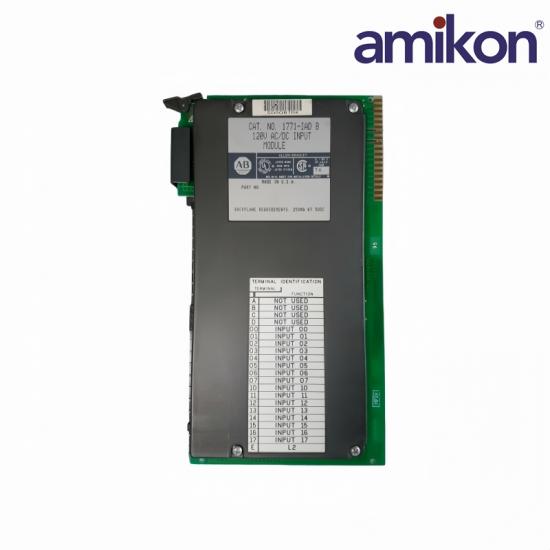

1771-IAD/B 16-Point 120 V AC/DC Input Module

✉  INQUIRE NOW

PLC MODULE · HIGH-VOLTAGE DIGITAL INPUT MODULES

1771-IAD/B

16-Point 120 V AC/DC Input Module

MANUFACTURERPLC Module
MODEL1771-IAD/B
PART NUMBER1771-IAD/B
PRODUCT TYPEHigh-Voltage Digital Input Module
SYSTEM FAMILYHigh-Voltage Digital Input Modules
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support

  • Item NO.:

    1771-IAD/B

  • Product Origin:

    USA

  • Brand/Manufature:

    PLC Module

  • Product Origin:

    USA

  • Lead Time:

    IN STOCK

  • Condition:

    Brand New And 100% Original

  • Certificate:

    Coo
Inquire Now

PLC Module High-Voltage Digital Input Modules

1771-IAD/B

Price and Availability Inquiry

The 1771-IAD/B is a Series B revision 16-point high-voltage digital input module rated for nominal 120 V AC or 125 V DC field signals.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 1771-IAD/B and required quantity in your inquiry.

1771-IAD/B

Technical Specifications

Official identification, electrical, interface, installation and ordering data for the 1771-IAD/B 16-point 120 v ac/dc input module.

01Product IdentityOfficial model identification
ManufacturerPLC Module
Article Number1771-IAD/B
Product Designation16-Point 120 V AC/DC Input Module
Product FamilyHigh-Voltage Digital Input Modules
02Input SpecificationsPublished channel and voltage data
INPUT POINTS16
NOMINAL VOLTAGE120 V AC, 125 V DC
ON-STATE VOLTAGE79–138 V AC/DC
INPUT IMPEDANCE11.2 kΩ at 60 Hz
03Timing & PowerSelectable filtering and module load
AC TURN-ON DELAY5 ms or 20 ms selectable
DC TURN-ON DELAY3 ms or 10 ms selectable
TURN-OFF DELAY25 ms
POWER DISSIPATION8.8 W maximum
04Electrical LimitsSignal thresholds and revision check
OFF-STATE VOLTAGE43 V maximum
AC ON-STATE CURRENT5.95 mA minimum at 79 V
DC ON-STATE CURRENT1.5 mA minimum at 79 V
REVISION IDENTIFIERSuffix /B must match the required revision

1771-IAD/B Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 1771-IAD/B.

01

Which field signals can 1771-IAD/B monitor?

It accepts sixteen nominal 120 V AC or 125 V DC digital field signals with a published on-state range of 79–138 V.

02

How should the /B suffix be handled when ordering?

Treat the complete code 1771-IAD/B as the ordering identifier and verify the installed revision from the front and side labels.

03

Which input-delay settings are available?

The module provides selectable turn-on filtering: 5 ms or 20 ms for AC signals and 3 ms or 10 ms for DC signals.

04

How can an engineer confirm a valid on-state?

Verify that the field voltage is within 79–138 V and that the circuit supplies at least the published minimum input current.

05

Which checks reduce false input indications?

Inspect common wiring, leakage current, field-device type, grounding and the selected input-delay setting before energizing.

06

How should legacy replacement and wiring verification be approached?

De-energize the chassis, document terminal assignments and switch settings, then install only after the complete revision code is confirmed.

07

Which details should accompany an inquiry?

Provide 1771-IAD/B, quantity, field voltage, existing revision, label photos and the required input-delay configuration.
