Brand/Manufature:
PLC ModuleProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
CooPart Number: 1771-OB
Weight: 1.44 lbs (0.65 kg)
Module Type: Digital DC Output Module
Number of Outputs: 8 outputs
Voltage Category: 10–60 Volts DC, Source
DC Operating Voltage: 10–27 Volts
Backplane Current: 165 milliamperes
Max Continuous Current per Output: 1.5 amperes
Max Continuous Current per Module: 8 amperes
Wiring Arm: 1771-WH
Coating: Conformal coat
Data Format: BDC or natural binary
Typical AC Signal Delay (Off): 45 ms (±15 ms)
Typical DC Signal Delay (Off): 50 ms

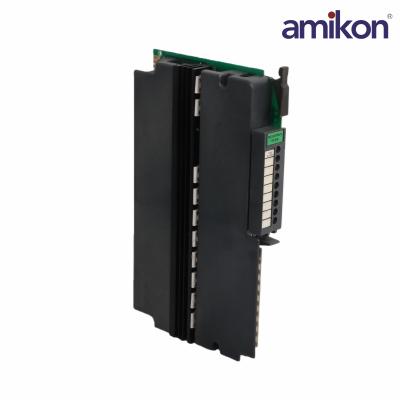

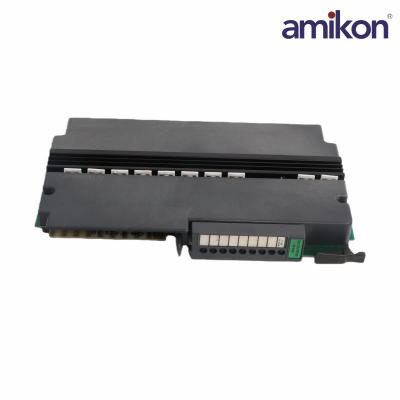

The 1771-OB is a DC Output Driver Module that can control DC motor starters, indicators, and solenoids. It receives electric power through the 1771 I/O backplane chassis from the power supply casing and requires 165 mA from the output of this supply. The unit is shipped in a static protective bag to help protect against damage to electrostatic discharge. Electrostatic discharge can, in some cases, decrease the performance or damage of the module. Remember to wear an approved ground earthing hook device or to touch a grounded object to detach before handling the module.
With 8 outputs and an input voltage range of 10 to 27 Volts DC, the 1771-OB has an output current of 1.5 A per output (not to exceed 8 A per module). Its maximum surge current is 4 A for 1 millisecond and is repeatable every 1 second.
The Off-state Leakage Current for this unit is 1 mA per output, while its On-state Voltage Drop is 2 Volts DC.
With a delay time of 10 milliseconds, this module’s power dissipation is 16.9 Watts (maximum) and 0.9 Watts (minimum); its thermal dissipation is 57.6 BTU/hour (maximum) and 3.0 BTU/hour (minimum).
