1797-TB3 Intrinsically Safe I/O Terminal Base

1797-TB3
1797-TB3
1797-TB3

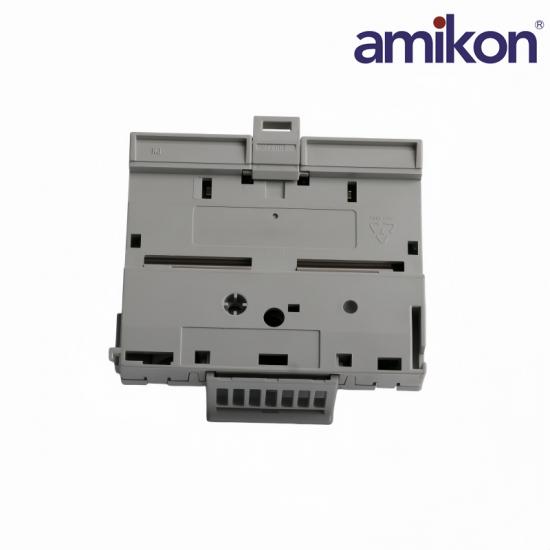

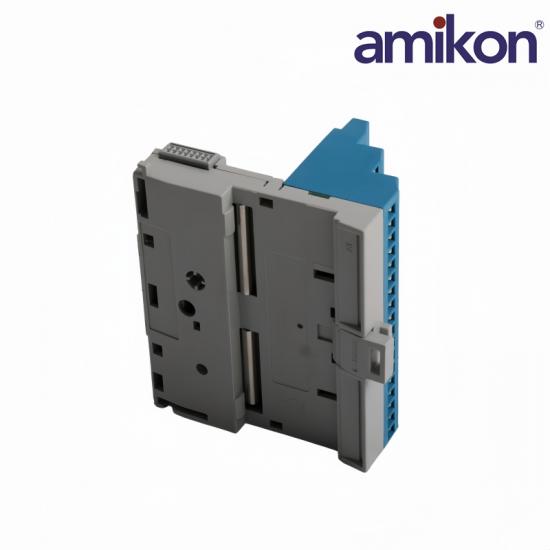

1797-TB3 Intrinsically Safe I/O Terminal Base

✉  INQUIRE NOW

PLC MODULE · INTRINSICALLY SAFE TERMINAL BASES

1797-TB3

Intrinsically Safe I/O Terminal Base

MANUFACTURERPLC Module
MODEL1797-TB3
PART NUMBER1797-TB3
PRODUCT TYPEScrew-Clamp Terminal Base
SYSTEM FAMILYIntrinsically Safe Terminal Bases
ORDER SUPPORTModel Verification

INDUSTRIAL AUTOMATION SPARE PARTS PARTNER

20 Years of Experience in Industrial Automation Supply

AMIKON supplies industrial automation spare parts to maintenance, engineering and procurement teams worldwide. Our focus includes discontinued and hard-to-find DCS, PLC and TSI components, helping customers identify the correct model, source replacement parts and support urgent maintenance requirements.

Discontinued Parts SourcingModel Identification SupportGlobal Customer SupportIn-Stock Supply Support
  • Item NO.:

    1797-TB3
  • Product Origin:

    USA
  • Brand/Manufature:

    PLC Module
  • Product Origin:

    USA
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

PLC Module Intrinsically Safe Terminal Bases

1797-TB3

Price and Availability Inquiry

The 1797-TB3 is a screw-clamp terminal base for intrinsically safe plug-in I/O modules, with three terminal rows, a 96-pin female connector and backplane-bus connection.

Sales SupportDirect specialist contact
QuotationCurrent commercial details
DeliveryDHL · FedEx · UPS
Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist
WhatsApp +86 18965423501
Request a Quote on WhatsApp Send Email Inquiry
For faster service, please include the model 1797-TB3 and required quantity in your inquiry.

1797-TB3

Technical Specifications

Official identification, electrical, interface, installation and ordering data for the 1797-TB3 intrinsically safe i/o terminal base.

01Product IdentityOfficial model identification
ManufacturerPLC Module
Article Number1797-TB3
Product DesignationIntrinsically Safe I/O Terminal Base
Product FamilyIntrinsically Safe Terminal Bases
02Terminal ConfigurationPublished wiring-interface data

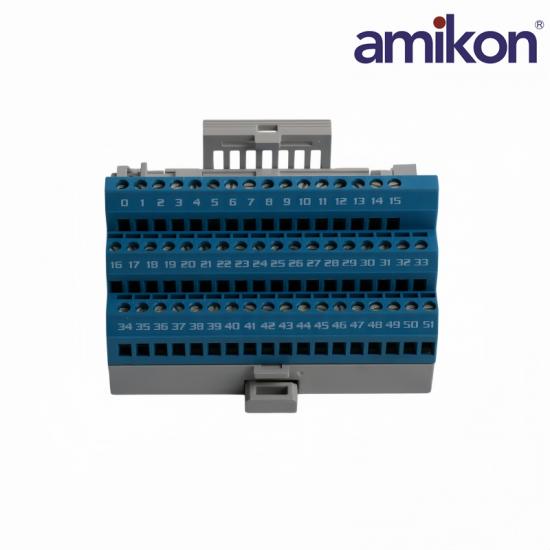

TERMINAL ARRANGEMENT1 row of 16, 2 rows of 18
TERMINAL TYPEScrew clamp
SCREW TORQUE0.8–1.0 N·m
MODULE CONNECTOR96-pin female
03Intrinsic-Safety LimitsElectrical limits by terminal group
SELECTED TERMINALSBelow 10 V DC, below 2.5 A
OTHER SIGNAL TERMINALSBelow 30 V DC, below 100 mA
BACKPLANE CONNECTIONBelow 10 V DC, below 400 mA
CHANNEL ISOLATIONDetermined by the inserted module
04Mechanical & EnvironmentPublished installation limits
DIMENSIONS WITH MODULE94 × 94 × 69 mm
WEIGHTApproximately 200 g
OPERATING TEMPERATURE-20…70 °C
RELATIVE HUMIDITY5–95%, noncondensing

1797-TB3 Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 1797-TB3.

01

Which modules can be mounted on the 1797-TB3?

Use only compatible intrinsically safe plug-in I/O modules and verify their terminal assignment and keying before installation.

02

How are the wiring terminals arranged?

The base provides one row of sixteen terminals and two rows of eighteen, plus a 96-pin female module connector.

03

Which torque applies to the screw terminals?

Tighten screw-clamp terminals within the published 0.8–1.0 N·m range.

04

Why must terminal-group limits be checked separately?

Different terminals have different voltage and current limits; the inserted module instructions define the permitted circuit use.

05

How should adjacent bases be connected?

Remove the factory bus cover only when joining another approved terminal base, and maintain the required intrinsically safe installation practice.

06

Which environmental limits apply in service?

Operate between -20 and 70 °C at 5–95% noncondensing relative humidity.

07

Which evidence is needed for a replacement order?

Provide 1797-TB3, the inserted module code, hazardous-area classification, terminal photos and the complete system drawing.
