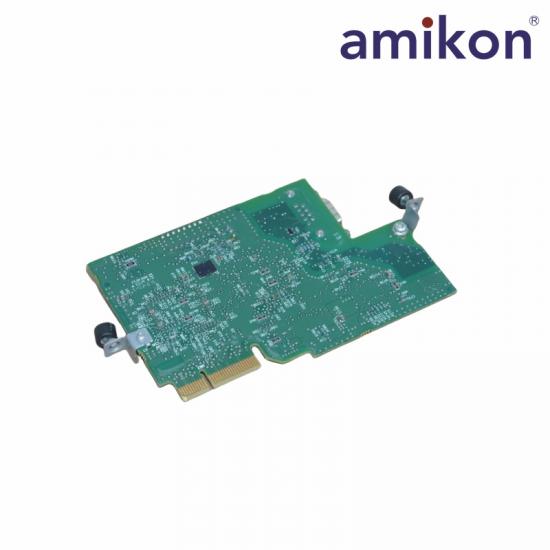

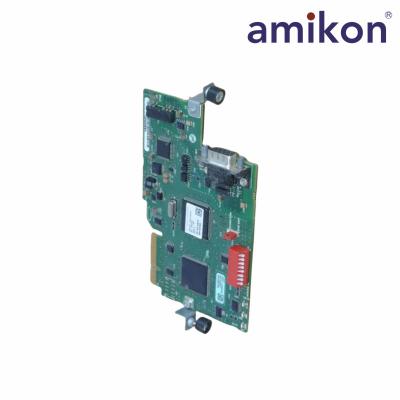

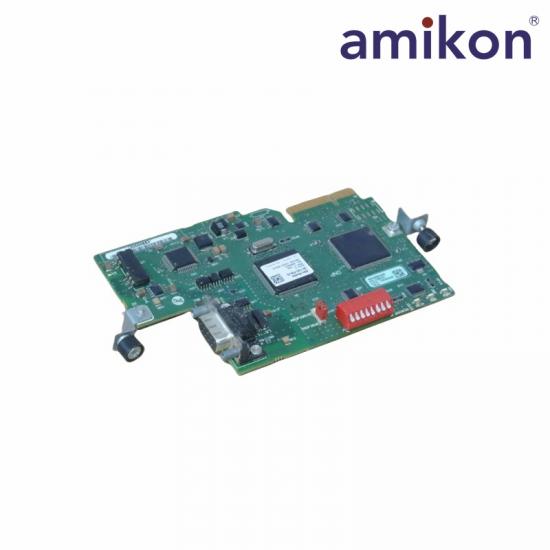

➱20-750-PBUS advanced network communication module

20-750-PBUS PROFIBUS option module is the advanced network communication module for installation into PowerFlex 750-Series drives and PowerFlex 755T drive products. It is designed to be easily installed and configured with many advanced features in configuration, including the parameter-configured 32-bit Datalinks in the I/O and Acyclic Messaging support to meet application requirements. There are various configuration tools to configure the option module and host drive, "Connected Components Workbench" software and the Studio 5000 Logix Designer application are the recommended tools for configuring the 20-750-PBUS PROFIBUS option module. It is also compatible with PowerFlex 20-HIM-A6 or 20-HIM-C6S HIM (Human Interface Module) on the drive, if available, or third-party PROFIBUS configuration software, such as ProSoft Configuration Builder.

General Information

· Module Name: 20-750-PBUS Advanced Network Communication Module

· Series: PowerFlex 750-Series

· Function: Provides PROFIBUS DP network communication capabilities for PowerFlex 750-Series drives.

Technical Specifications

Network Communication

· Network Protocol: PROFIBUS DP (Decentralized Peripherals)

· Data Rates: Supports various data rates up to 12 Mbps

· Node Address Range: 0 to 125

· Profile Support: PROFIdrive and other standard profiles

Electrical Characteristics

· Power Consumption: Typically low, derived from the drive's internal power supply

· Input Voltage: 24V DC nominal (from the drive)

· Current Consumption: Typically 0.1 A

Physical Characteristics

· Dimensions: Compact form factor suitable for integration into PowerFlex 750-Series drives

· Weight: Lightweight, making it easy to handle and install

· Mounting: Directly mounts into the communication slot of PowerFlex 750-Series drives

Discounted price will be support if you buy big quantity of 20-750-PBUS
