Brand/Manufature:
PLC ModuleProduct Origin:
USALead Time:
IN STOCKCondition:
Brand New And 100% OriginalCertificate:
Coo|
Operating Temperature: 32-122°F (0-50°C) |
Installation Clearance: 80 mm (3.10 in.) |
|
Output Current: 15 A |
Minimum Enclosure Depth: 302 mm (11.9 in.) |
|
Part Number/Catalog No.: 2094-BC02-M02-M |
Control Input Fuse: FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A) |
|
Voltage Rating: 400/460 VAC |
Dimensions: 4.9 x 11.9 x 13.2 in (125 x 302 x 336 mm) |
|
Power Dissipation: 36-75 Watts |
Weight: 13.0 lbs (5.90 kg) |
|
Converter Section Output: 15 kW |
Max Bus Capacitance: 8955 Microfarads |
|
Inverter Section Output: 72 Watts |
Power Module: Integrated Axis Module |
|
Heat Dissipation of Converter Section: 44 W at 20% |
Nom Drive Voltage: 360-480 Volts (3 Phase) |
|
Heat Dissipation of Inverter Section: 72 W at 40% |
Wattage: 6.6 kWatts |

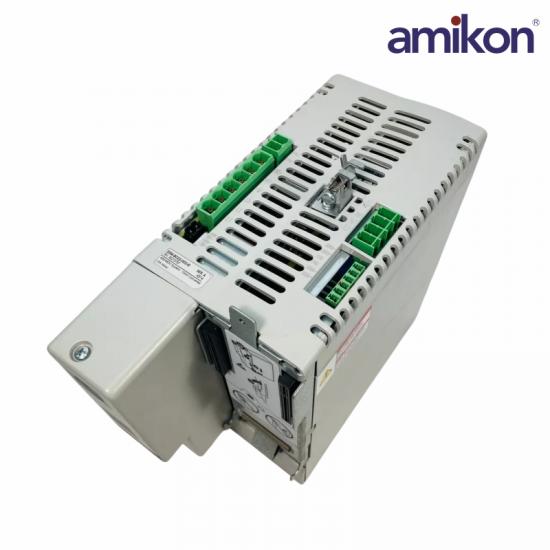

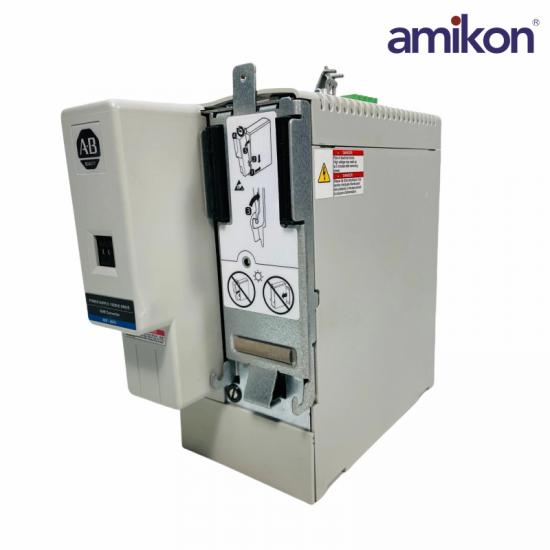

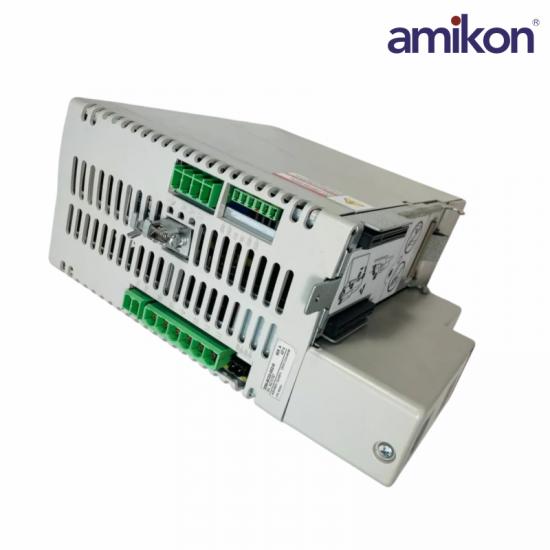

The 2094-BC02-M02-M is a Kinetix 6200 component. This module is an Integrated Power Axis Module (IAM) that features an integrated converter and inverter circuitry. This module is one of the essential parts of a Kinetix system, having an integrated Safe speed monitor. This module is operated with 400VAC class input power. This IAM module is designed to function with One (1) control module.
The 2094-BC02-M02-M, together with the 2094-BMxx-M drive modules and Kinetix 600M integrated drive motor system are built with solid-state motor short circuit protection. When installed with an appropriate branch circuit protection, this module is rated for use on a circuit that is able to deliver a maximum of 200,000 Amperes for fuse and 65,000 Amperes for circuit breakers. Appropriate Bussmann fuse for Control Input power for the 2094-BC02-M02-M is the FNQ-R-10 with 10 Ampere rating or FNQ-R-7.5 with 7.5 Ampere rating and recommended Allen-Bradley fuse circuit breaker is 1492-SPM2D060 or 1492-SPM1D150. For DC bus power, recommended Bussmann fuse is FWJ-40A and Mersen Fuse A70QS40-4.
