Part Number / Catalog No.: 2094-BC04-M03-S

Operating Temperature: 32 to 122°F (0 to 50°C)

Power Dissipation: 94–255 W

Converter Section Output: 28 kW

Inverter Section Output Current: 30 A

Input Voltage Range: 400 / 460 VAC

Bandwidth:

Velocity Loop: 500 Hz

Current Loop: 1300 Hz

PWM Frequency: 4 kHz

Internal Shunt Continuous Power: 200 W

Internal Shunt Peak Power: 22.5 kW

Module Location: Leftmost of the Power Rail

AC Input Voltage: 324–528 V rms, 3-Phase (Nominal: 360–480 V)

AC Input Frequency: 47–63 Hz

AC Input Current (Nominal RMS): 44.0 A

AC Input Current (Max Inrush 0-Peak): 31.1 A

DC Input Voltage (Common Bus Follower): 458–747 V

DC Input Current (Common Bus Follower): 41.5 A

Internal Shunt Resistor: 28.75 Ω

Efficiency: 97%

Weight: 21.1 lbs (9.60 kg)

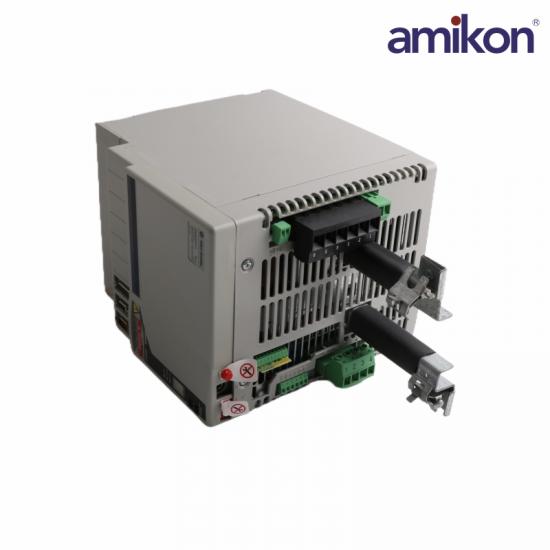

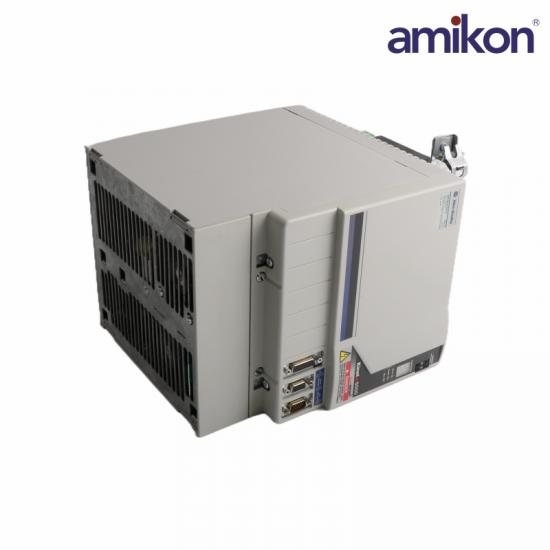

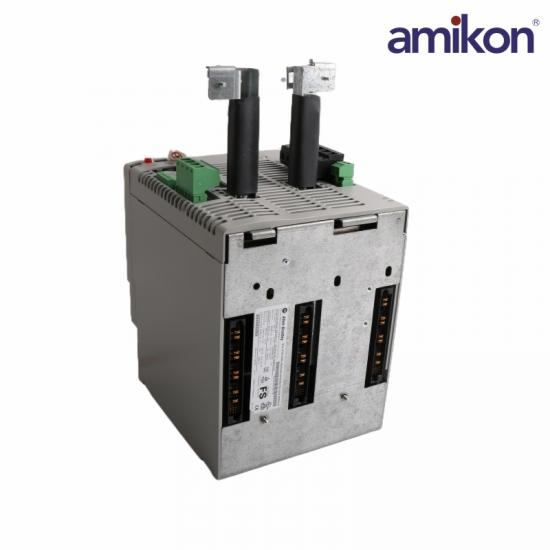

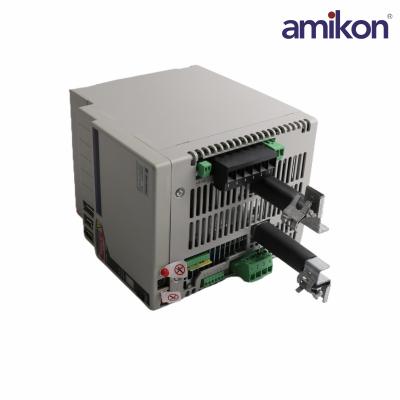

The 2094-BC04-M03-S is a Kinetix 6000 Drive system module.   that is designed to function as an Integrated Axis Module for inverter.   This module has an output power rating of 53 Watts at 20% loading, 72 Watts at 40% loading, 93 Watts at 60% loading, 116 Watts at 80% loading and 142 Watts at 100% loading.

This module has a converter and inverter section.   The converter section has an output rating of 28kW and 30 Ampere for inverter.   This module is also referred to as an AM power module.   It ships with a wiring plug connector set for motor power (MP) and motor/resistive brake power (BC).   Connector kits Input and Output interfaces, safety, and auxiliary feedback signals with catalog numbers 2090-K6CK-D44M and 2090-K6CK-D44S0 and motor feedback with catalog number 2090-K6CK-D15M are not provided with this module.

Ground jumper settings is not always required when using this module.   However, ungrounded or high impedance power configurations require ground jumper settings.   To set ground jumper settings, the Integrated Access Module (IAM) is removed from the power rail, opening the power module and modifying the jumper position to the appropriate location.   By default, the module is set to grounded position wherein P16 and P17 are shorted while the ungrounded configuration has P18 and P19 terminals shorted.
