Weight: 7.0 lbs (3.18 kg)

Nom Drive Voltage: 360-480 Volts (3 Phase)

Part Number/Catalog No. : 2094-BM01-M

Product Description: Integrated Axis Module

Continuous Output Current: 6.1 A

Peak Current: 8.6 A

Continuous Power Out (Nom): 3.9 kW

Power Dissipation: 57-126 Watts

Voltage Class: 400V

Efficiency: 98%

Internal Shunt Continuous Power: 50W

Internal Shunt Peak Power: 5.6 kW

Dimensions: 2.76 x 11.9 x 13.2 in (70 x 302 x 336 mm)

Operating Temperature: 32-122°F (0-50°C)

Output Current: 9 Amperes

Power Module: Axis Module

Max Bus Capacitance: N/A

Wattage: 3.9 kWatts

Voltage Rating: 460 Volt (AC)

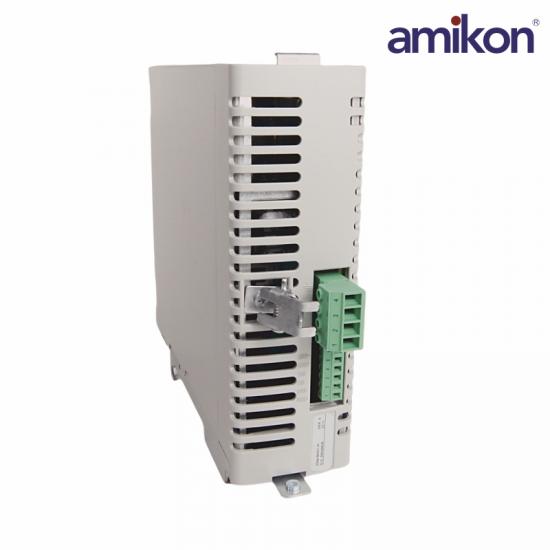

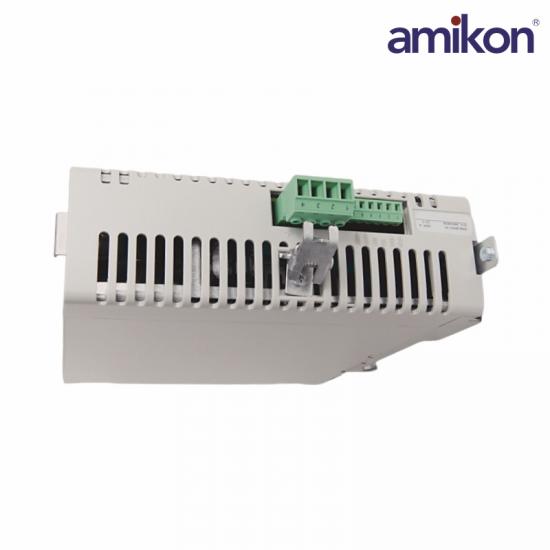

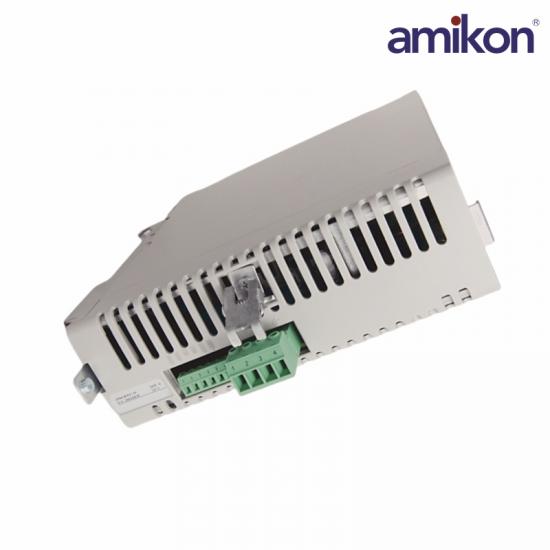

The 2904-BM01-M is an component designed for use with Kinetix 6000 Drives. This drive functions as an Axis Module (AM), belonging to the 400VAC voltage category with continuous current of 6.1 A and peak current of 15.3 A. Thos axis module also has an efficiency of 98% and short-circuit current rating of 200,000 A (rms) symmetrical.

The 2904-BM01-M is directly installed to a Kinetix drive power rail. It is typically installed beside the Integrated Axis Module (IAM), along the power rail where the module draws power to energize internal circuitry. This axis module is connected to motors and motion devices via feedback cables, auxiliary feedback cables, I/O and safety wiring. Axis Modules also allow installation of control modules for integration of control inputs to the module.

The 2904-BM01-M has Bandwidth velocity loop of 500Hz, and current loop frequency of 1300Hz with a Pulse Width Modulation (PWM) frequency of 4 kHz. This module is built with an internal shunt with continuous power of 50 W and peak power of 5.6 kW and internal shut resistor rating of 115 Ohms. Voltage rating when shunt on is 805VDC while for shunt off, voltage rating is 765VDC. This module has an efficiency of 98% with capacitance of 150 ?F and capacitance energy adsorption of 19 Joules.

This module has Rated power output of 57 Watts at 20%, 75 Watts at 40%, 90 Watts at 60%, 108 Watts at 8-% and 126 Watts at 100% loading. For calculating enclosure ventilation, these power output data may be used.
