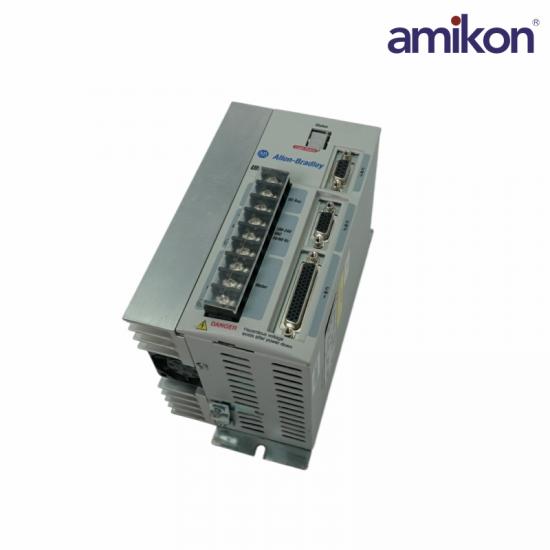

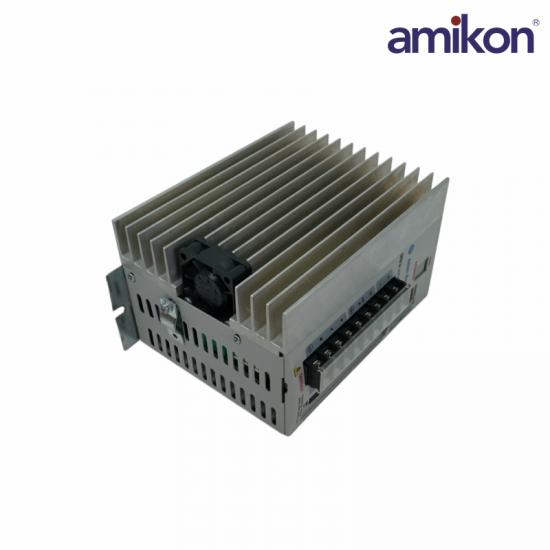

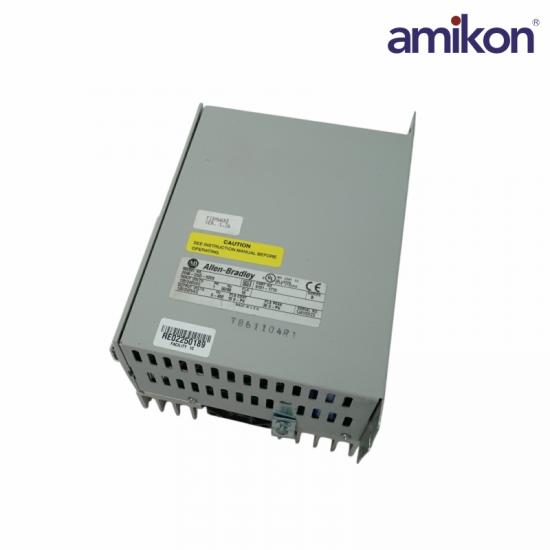

The 2098-DSD-020X is an Digital Servo Drive (DSD) from the Ultra 3000 Product family of motion control components. This drive is mainly used to interface with Servo motors such as Servo Motor series to implement motion and position control to the connected load. The 2098-DSD-020X accepts feedback position data from encoders such as the sine/cosine and incremental external encoders from the Bulletin 842HR, 844D, 847H, and 847T. The 2098-DSD-020X product is operable at an input supply voltage of 120VAC / 240 VAC, 1-Phase, 50-60 Hz, and an input current of 18 Amperes. This servo drive delivers an output voltage of 120 / 240 VAC, 3-Phase, programmable frequency range of 0-400 Hz, maximum continuous output current of 10 amperes, and maximum peak output current of 30 Amperes.
Specification：
|
Part Number |
2098-DSD-020X |
|
Bus Overvoltage |
400 VDC |
|
Bus Capacitance |
1880 μF |
|
Input Voltage (AC) |
120 - 240 Voltage rms, 1-Phase |
|
Input Frequency (AC) |
47-63 Hz |
|
Output Current (Continuous) |
30 Amps (0-peak) |
|
Output Current (Intermittent) |
10 Amps (0-peak) |
|
Continuous output power @ 230 VAC |
1.0 kW |
|
Continuous output power @ 480 VAC |
2.0 kW |
|
Output voltage |
120 / 240 VAC rms, 3-Phase |
|
Output current, peak |
30 Amperes |
|
Output frequency |
0-400 Hz |
Frequently asked questions
What are available series of the 2098-DSD-020X servo drive?
The 2098-DSD-020X are available in Series A, B and C.
Does the 2098-DSD-020X support SERCOS communication as well?
No. SERCOS port is not available natively to this drive.
Does the 2098-DSD-020X come with integrated communication interface?
Yes. The 2098-DSD-020X has built-in DeviceNet communication interface.
Does the 2098-DSD-020X support indexing feature?
Yes. The 2098-DSD-020X supports indexing function.
What is the output frequency of the 2098-DSD-020X?
The 2098-DSD-020X has an output frequency of 0-400 Hz.
Product Applications
Packaging and printing machinery: Used to achieve high-speed and high-precision packaging lines, label pasting, bag making and paper transmission control.
Industrial robots and specialized machines: As the main driving units of mechanical hands or control machines, used for precise positioning.
Material processing machinery: Used for paper cutting machines, metal processing, and shearing equipment, meeting the high requirements for the motion process.
Semiconductor and electronic component manufacturing: Relying on high-precision servo responses, applied in equipment that requires micron-level position feedback.
Warehousing and logistics systems: Used for automated conveying lines, lifting equipment and sorting systems.
