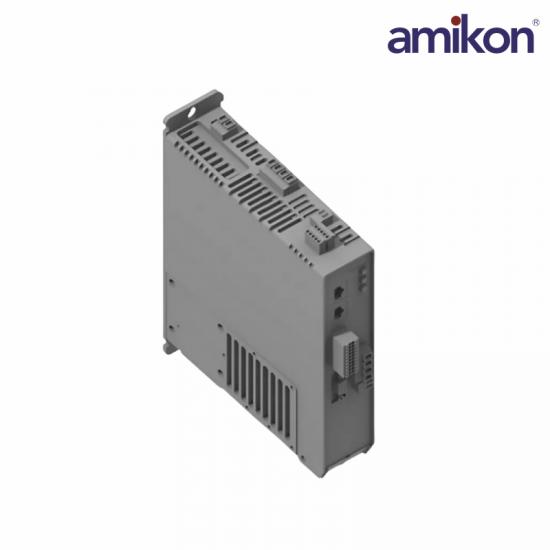

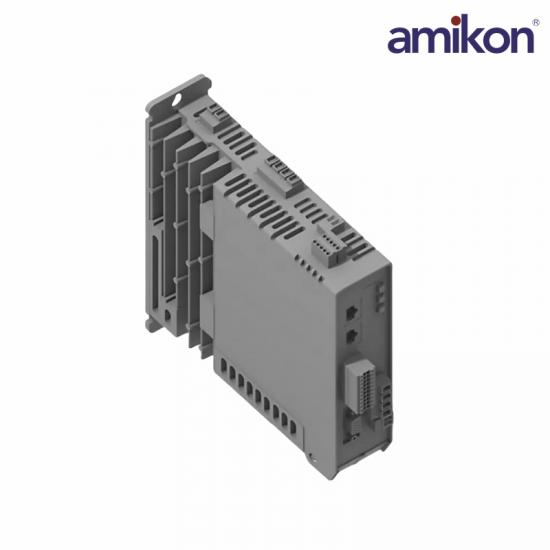

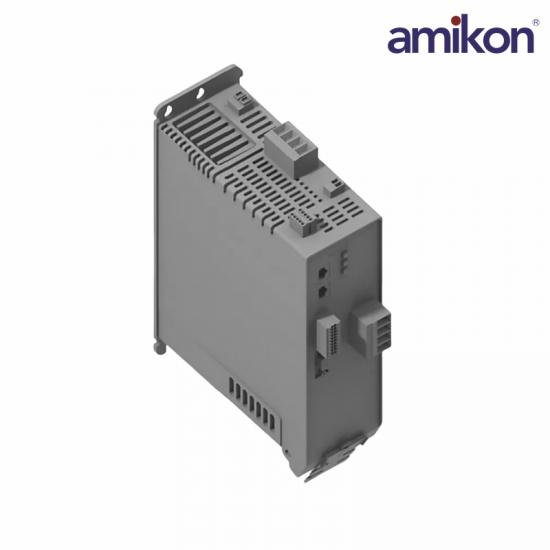

The 2198-C4030-ERS drive as a Kinetix servo drive. This drive belongs to the Kinetix 5300 drives series. It is rated for 11.7 Amps of continuous output current and 6.25 kilowatts of continuous 3-phase output power.

The 2198-C4030-ERS drive is a servo drive manufactured by as part of the Kinetix 5300 drives product line. The Kinetix 5300 servo drives are designed to provide integrated motion through the EtherNet/IP network for the applications that use continuous 3-phase output power and require continuous current levels. The 2198-C4030-ERS servo drive operates on an input voltage of 342 to 528 Volts RMS, and it has a continuous output power of 6.25 kilowatts. It also features a continuous output current of 11.7 Amps RMS and a continuous output current of 16.5 Amps 0-pk.

The 2198-C4030-ERS servo drive, like other drives in the Kinetix 5300 series, has a wide range of features and indicators which include a 4-character status display screen, a motor brake connector, a shunt resistor connector, digital inputs, and an auxiliary feedback connector and motor cable shield clamp. The 2198-C4030-ERS servo drive uses a wire size of 24 to 10 AWG, a strip length of 0.31 inches, and a torque value of 4.4 to 5.3 pounds on an inch for the AC input power. For the motor power, this servo drive uses the same wire size, strip length, and torque value as it does for the AC input power. For the 10 AWG wire size conductors, the operators are advised to use a torque value of 0.7 to 0.8 N-m or about 6.27.1 pounds on an inch. The strip lengths, wire size, and torque value specifications that are shown here for the 2198-C4030-ERS servo drive apply to the single-axis connectors which come with the drive.
