PLC Module Three-Phase EMC Line Filters

2198-DB42-F

Price and Availability Inquiry

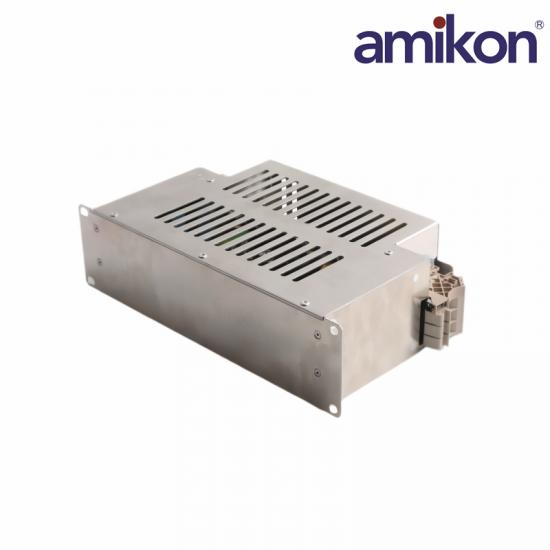

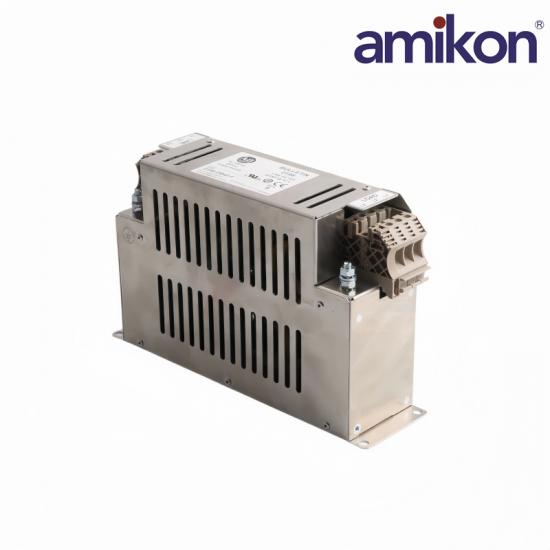

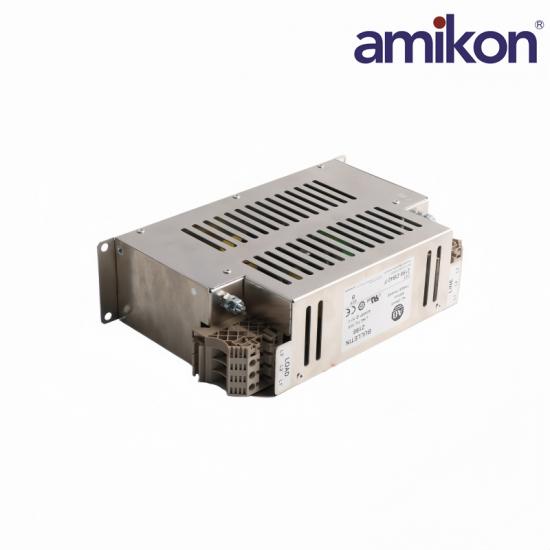

The 2198-DB42-F is a 42 A three-phase electromagnetic-compatibility line filter for reducing conducted interference at a compatible servo-drive input.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 2198-DB42-F and required quantity in your inquiry.

2198-DB42-F

Technical Specifications

Official identification, electrical, interface, installation and ordering data for the 2198-DB42-F 42 a three-phase emc line filter.

01Product IdentityOfficial model identification

ManufacturerPLC Module

Article Number2198-DB42-F

Product Designation42 A Three-Phase EMC Line Filter

Product FamilyThree-Phase EMC Line Filters

02Electrical RatingPublished filter identification

RATED CURRENT42 A

PHASE COUNT3

FILTER FUNCTIONConducted-emission attenuation

INSTALLATION SIDEDrive input line

03Mechanical DataPublished mounting dimensions

OVERALL SIZEApproximately 272 × 162 × 73 mm

MOUNTING HARDWAREM6

MOUNTING-HOLE DIAMETER6.5 mm

MOUNTING METHODPanel mounted

04Connection ChecksEMC installation requirements

LINE CONNECTIONThree-phase supply side

LOAD CONNECTIONCompatible drive side

PROTECTIVE BONDLow-impedance panel bond required

CURRENT LIMITDo not exceed 42 A
