The  22B-D6P0N104 AC Drives offer advanced control and energy management capabilities, ideal for optimizing industrial machinery performance across various sectors.

Power Capacity (HP):7.5 to 100 HP

Input Current (Amps):32.7 to 304

Output Current (Amps):28 to 270

Maximum Frequency (Hz):60 Hz

Braking Method:DC Injection

Control Technology:Microprocessor-based

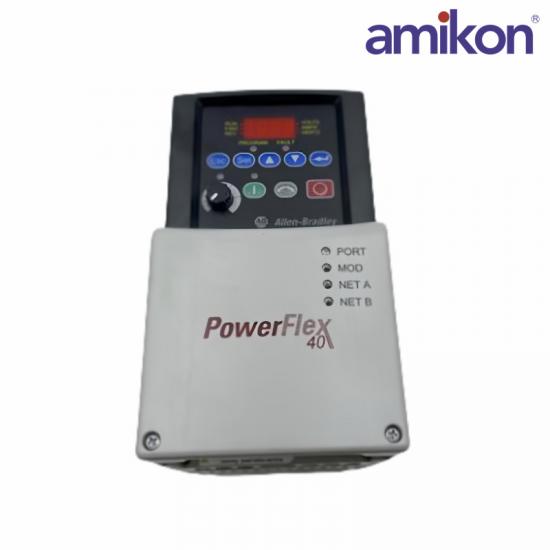

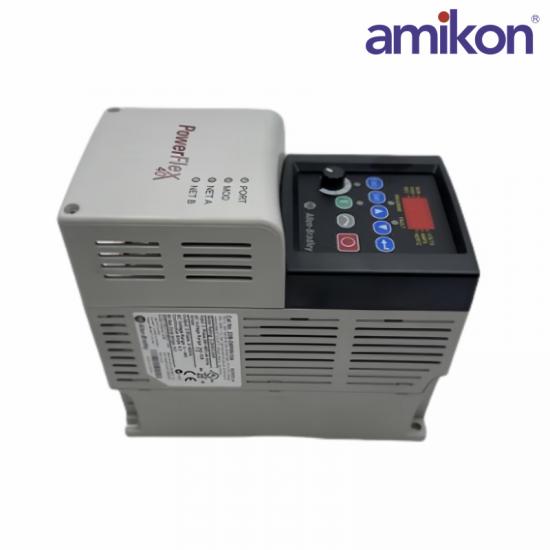

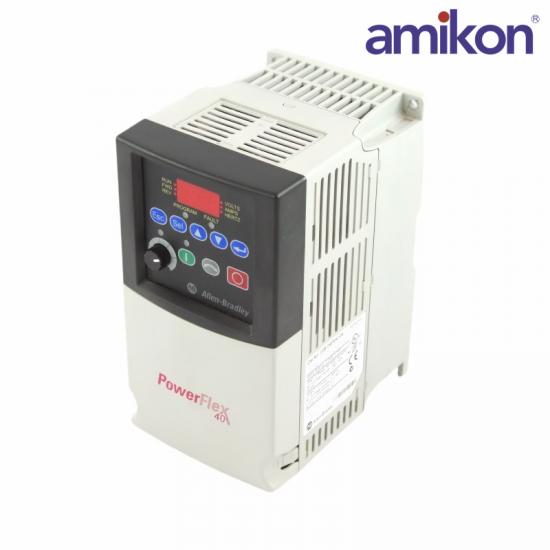

The PowerFlex 40 22B-D6P0N104 AC Drives are designed with cutting-edge technology to ensure seamless integration into modern industrial systems. This model specifically offers high torque capability and precision control, making it suitable for applications requiring high power density and dynamic performance.

Featuring a microprocessor-based control system, the 22B-D6P0N104 enables real-time adjustments to meet varying process demands. It supports various communication protocols, facilitating seamless connectivity with other components in your network.

22B-D6P0N104 Input Voltage:380-480VAC

Input Phase: 3-Phase

Rated Current output: 6.0 A

Rated Power:2.2 kW (3.0 HP)

Installation:Panel Mount

Enclosure Rating: IP20 / NEMA UL Type Open

Keypad: LED Keypad

Built-in Communication port: RS485

22B-D6P0N104 I/O Terminal: Discrete Inputs: 3 fixed for START/STOP/REV; 4 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 0…10V or 4…20 mA (unipolar) 1 +/- 100V (bipolar) Discrete Output: 1 - N.O/N.C. dry contact; 2 Digital / Optocoupler

Voltage: 480 Volts AC

Enclosure:Panel Mount - IP20, NEMA/UL Type Open

Horsepower:3 Horsepower

Amperage:6.0 Amps

Communication:RS-485

Input Type:Keypad
