Description：

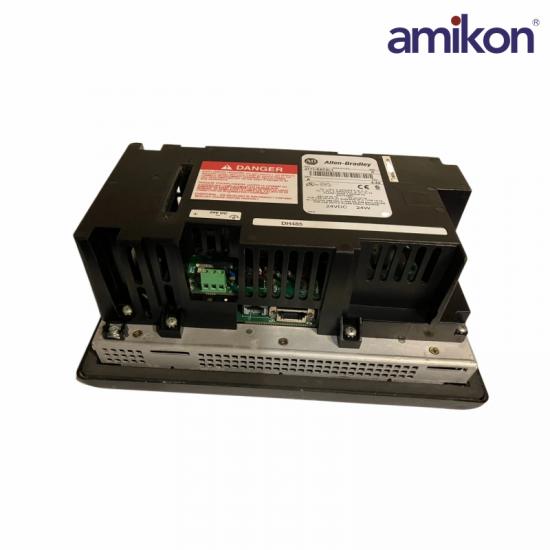

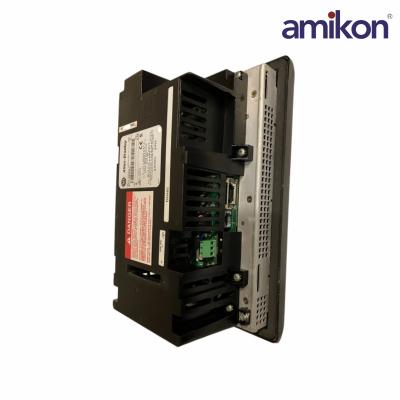

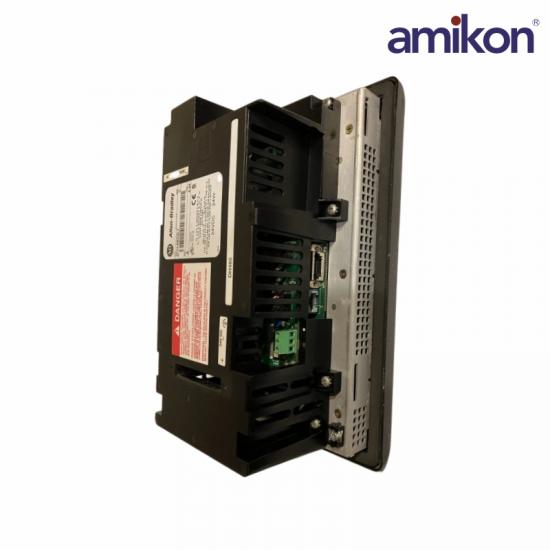

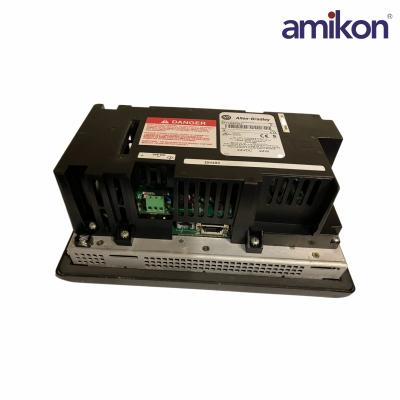

The 2711-K6C2L1 is a visualization device that generally called as Human Machine Interface (HMI). This PanelView Standard Operator Terminal is a cost-effective solution for implementing real-time monitoring and interface. It may be downloaded with custom designed application that represents the control points of a machine or process.

This HMI terminal does not require a license to operate. This HMI comes with a DH485 communication interface.

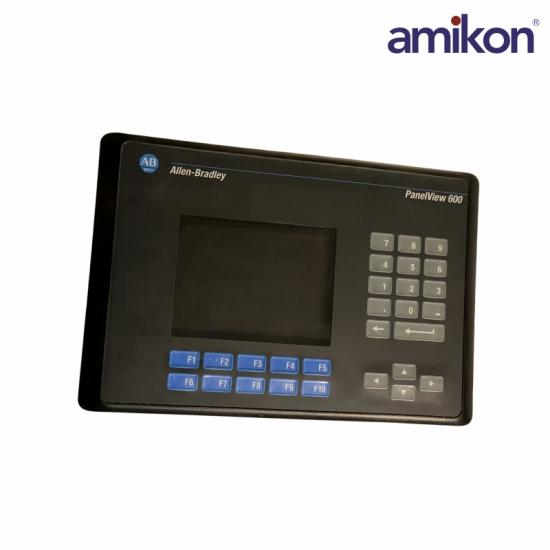

The 2711-K6C2L1 display the process mimic through the 5-inch screen that features VGA resolution of 320 x 234 pixels having a display area of 15 x 86 mm (4.54 x 3.4 in.). It is installed with a field-replaceable backlight with an expected lifespan of 50,000 hr rated half-life. Machine operator or process user may enter control commands via the embedded keypad interface which has Ten (10) function keys, numeric keypad and navigation buttons. Only the function keys are configurable for local and global assignments. These buttons are designed up to 1 million actuations.

Specification：

Frequently asked questions

1.Does this HMI come with a Real-time clock?

Yes, it has a battery-backed clock which also timestamps critical data.

2.What is the internal memory allocation of the 2711-K6C2L1?

This 2711-K6C2L1 has 190KB runtime and 240KB non-volatile memory.

3.What is the 2711-K6C2L1 power consumption of the 2711-K6C2L1?

The 2711-K6C2L1 power consumption of this HMI is 34 W max (1.9 A at 24V DC)

Product Applications

Mechanical manufacturing and processing: Used for controlling individual equipment, such as small packaging machines, material conveyors, machine tools, and assembly lines.

Food and beverage processing: Targeted at environments with high cleanliness requirements, used for monitoring processes such as mixing, filling, and labeling.

Logistics and material handling: Provides human-machine interaction interfaces in warehouse logistics systems.

Municipal engineering and small water treatment: Used for pump control, liquid level monitoring, and simple process control.
