Description：

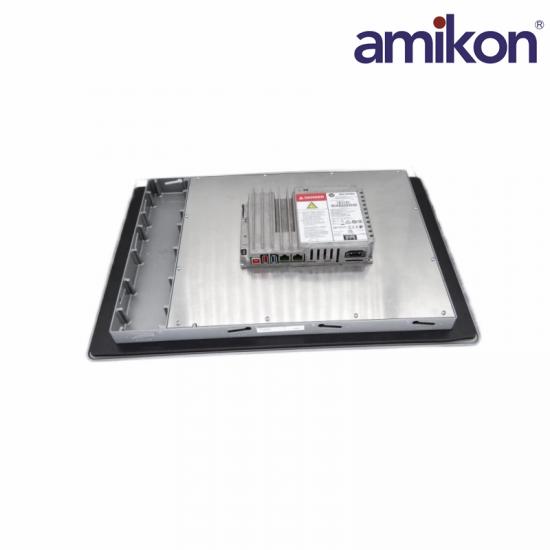

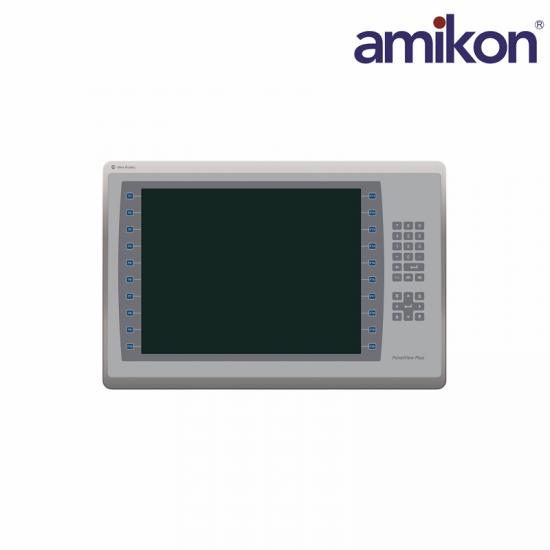

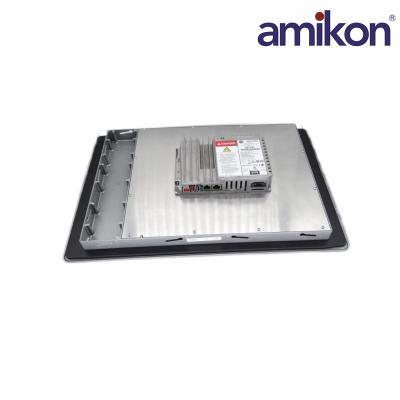

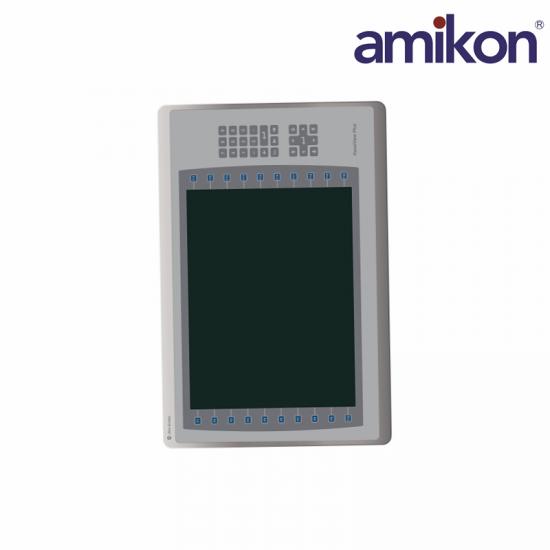

The 2711P-B15C22D9P is a visualization component that is manufactured. PanelView Plus 7 Performance operator terminal. This operator terminal is an industrial device, typically called as Human Machine Interface (HMI) that enables control of process or machine to implement in the factory floor.

The 2711P-B15C22D9P is a DC powered device that operates at an input supply range of 18-32VDC with nominal supply of 24VDC. It has a maximum power consumption of 50 W or 2.1 A at 24V DC. It measures 322 x 484 x 69.6 mm 12.68 x 19.06 x 2.74 in and weight approximately 4.14 kg (9.13 lb).

When installing the device, appropriate enclosures are NEMA and UL Type 12, 13, 4X, also rated IP66 as Classified by UL. This device is flush mounted to the mentioned enclosures and must be operated at an operating temperature of 0…55 °C (32…131 °F). Install appropriate cooling devices to maintain the required operating temperature with reference to the device’ typical heat dissipation of 61 BTU.

Specification：

Frequently asked questions

What are the power supply requirements for the 2711P-B15C22D9P?

It requires a strict 24V DC input voltage. It does not support direct AC mains power.

 What is the screen size and resolution of this specific HMI?

 It features a 15.0-inch color TFT LCD screen with an XGA (1024 x 768) resolution.

Does the 2711P-B15C22D9P provided with Ethernet ports?

Yes. There are (2) Ethernet communication ports that supports linear, star and ring topologies.

Does the 2711P-B15C22D9P come with an adjustable brightness?

Yes. The screen brightness can be adjusted via the operator terminal’s configuration menu.

Product Applications

Automotive Manufacturing: Real-time monitoring and equipment control for body welding, stamping lines, and final assembly workshops.

Oil & Gas: Monitoring critical parameters in drilling, pipeline transportation, and refining processes under harsh environments.

Water & Wastewater Treatment: Process display, alarm logging, and remote control for pumping stations and water treatment plants.

Food & Beverage Packaging: Managing high-speed packaging lines, ingredient mixing, and production batch tracking.
