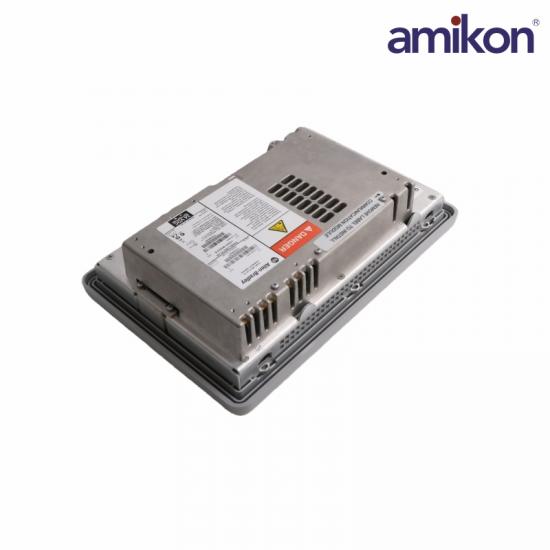

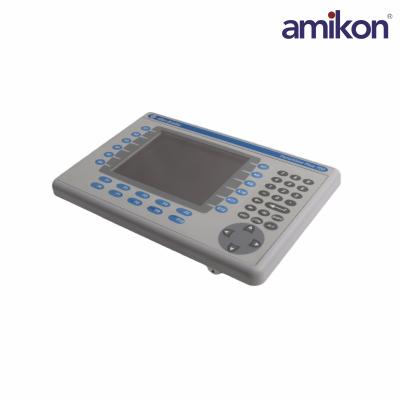

The 2711P-B7C4D1 is an PanelView Plus 700 operator terminal. This operator terminal functions as a Human Machine Interface (HMI) used for implementing centralized monitoring and control of machines and processes. This device is equipped with colored graphic display, dual input interfaces such as keypad and touchscreen interfaces and a variety of communication ports.

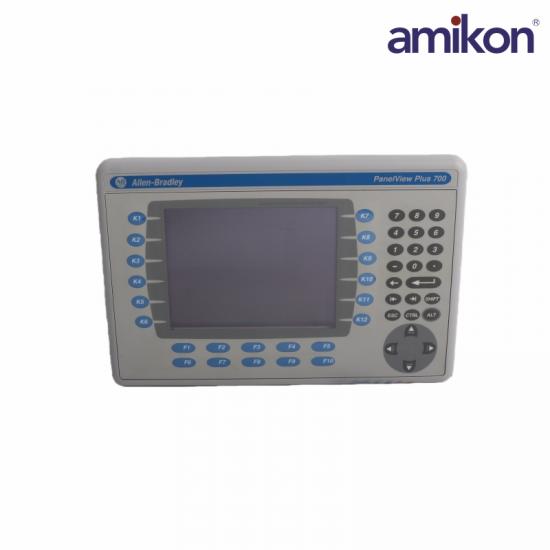

Specifically, the 2711P-B7C4D1 comes with a 6.5-inch color display screen with resolution of 640 x 480 pixels and display area of 132 x 99 mm (5.2 x 3.9 in.). The display is made of Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) that is installed with a backlight having an estimated operational lifespan of CCFL 50,000 hours life, min. The dual input interface such as keypad are composed of Function keys, numeric and navigation buttons with actuation rating of 1 million presses and recommended operating force of 340 g. The touchscreen input interface is made of an analog resistive touchscreen interface with 1 million presses and operating force of 10-110 g.

Frequently asked questions：

Q1: What is the 2711P-B7C4D1?

A: The 2711P-B7C4D1 is an PanelView Plus operator interface panel, designed for industrial HMI applications to provide real-time monitoring and control of systems.

Q2: What is the nominal operating voltage of this panel?

A: The 2711P-B7C4D1 operates on a nominal voltage of 24 VDC, which is standard for most industrial control environments.

Q3: What type of input power does it use?

A: This operator interface panel uses DC power input, ensuring stable and reliable performance in systems.

Q4: How much internal memory is available?

A: The 2711P-B7C4D1 device is equipped with 64 MB of internal memory, allowing storage of applications, configuration files, and runtime data.
