Description：

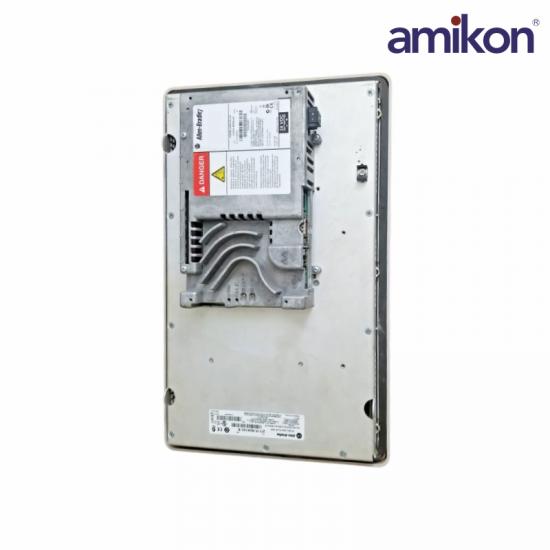

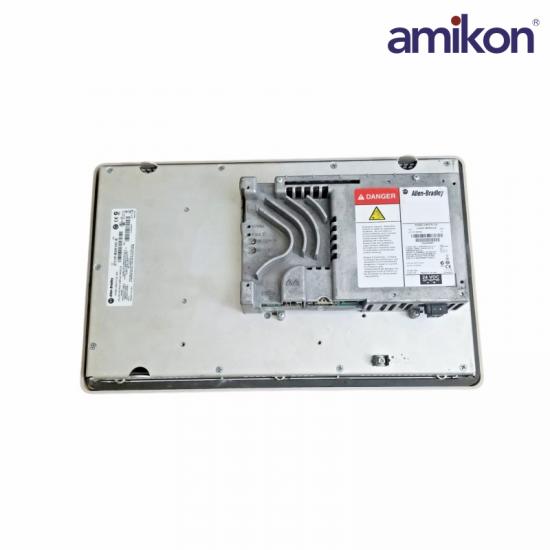

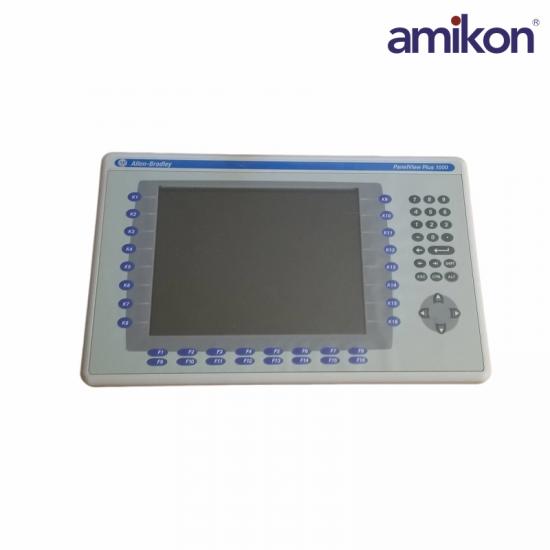

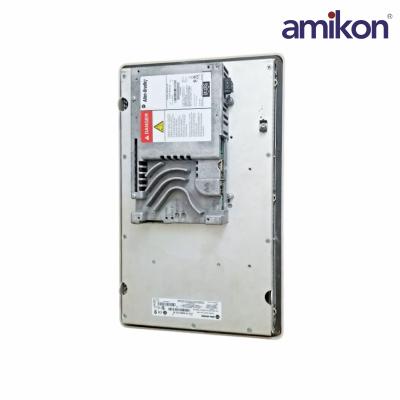

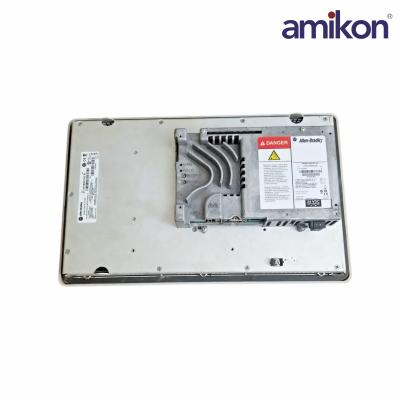

The current 2711P-K10C4D8 is an HMI that allows the user to interact with their machine. This operator interface has a 10.4 in. Color Display. The user is able to control the operator interface by utilizing the Keypad to input information and data. This unit is powered using 18-32 VDC power. This unit has the following internal memory: 512 MB RAM. If applicable this unit has an internal backlight replacement part number of 2711P-RL10C2. The approximate shipping weight and dimensions are 8 lbs. and 16 x 14 x 8 in. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.

Specification：

Frequently asked questions

Q1: What is the 2711P-K10C4D8 Operator Terminal?

A1: It is an industrial operator interface terminal designed for machine monitoring, control, and visualization in systems.

Q2: What is the 2711P-K10C4D8 display size of this terminal?

A2: The 2711P-K10C4D8 terminal features a 10.4-inch display screen.

Q3: What display resolution does it provide?

A3: The 2711P-K10C4D8 display resolution is 640 × 480 with 18-bit color graphics support.

Q4: What is the 2711P-K10C4D8 input voltage range?

A4: The 2711P-K10C4D8 operator terminal supports an input voltage range of 18–30 VDC.

Q5: What is the 2711P-K10C4D8 input power specification?

A5: The 2711P-K10C4D8 terminal operates with an input power supply of 18–32 VDC.

Product Applications

Automobile manufacturing plants: Workstations with high reliability requirements, such as painting lines, welding workstations, and final assembly lines.

Steel and metallurgical plants: Harsh environments; this terminal is highly durable and suitable for rolling mills and blast furnace control systems.

High-end equipment manufacturing: High-speed packaging machines, CNC machine tools, and large material handling systems.

Food and beverage processing plants: Meeting high standards of hygiene and data recording requirements.

Water treatment and logistics transportation: Scenarios requiring centralized monitoring and complex HMI graphics.
