Description：

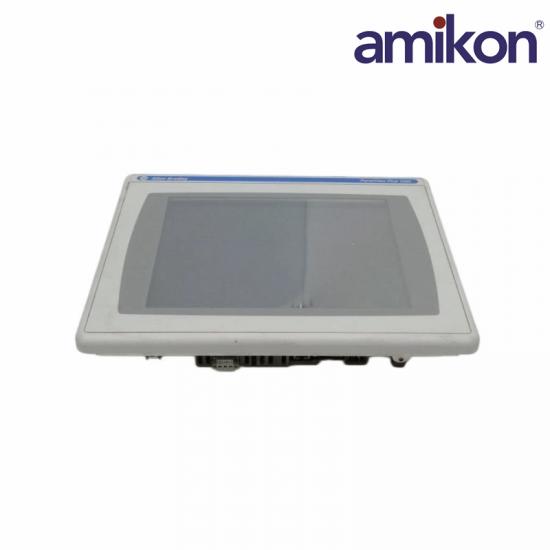

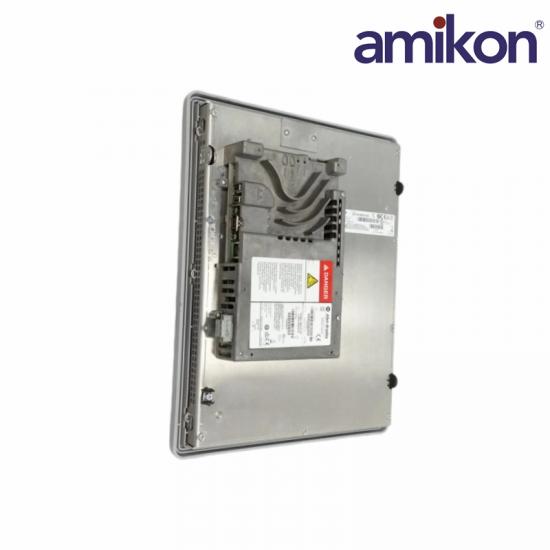

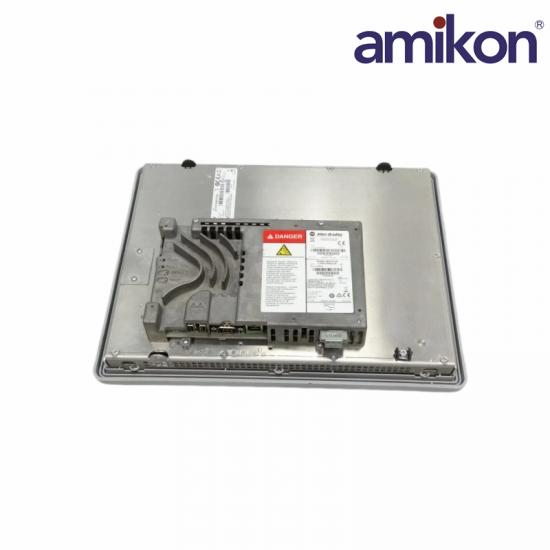

The 2711P-T12C4A8 is a PanelView Plus 6 operator terminal that features a 12.1-inch colored display screen, an embedded Analog resistive touch screen, integrated 512 MB Flash and 512 MB Random Access Memory (RAM) with integrated Ethernet, and RS232 communication port as well as USB interface. This operator terminal is powered by an input voltage of 100 to 240 VAC along a frequency of 50-60 Hz.

The 2711P-T12C4A8 supports horizontal or landscape installation orientation to an enclosure rated NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP54, IP6. To mount this operator terminal, create a panel cut-out with dimensions of 257 x 338 mm or 10.11 x 13.29 in. Additionally, maintain a mounting clearances of 51 mm (2 in.) (Top), 102 mm (4 in.) (Bottom), 25 mm (1 in.) (Side). Install appropriate climate control devices such as a fan or heater.

The 2711P-T12C4A8 is installed with a built-in battery with minimum expected operational lifespan of Four (4) years. It is primarily utilized to provide critical data timestamps. This battery-backed clock has an accuracy of +/- 2 minutes. In the event of low charge, the battery is field replaceable with catalog number 2711P-RY2032.

Specification：

Frequently asked questions

1.What type of input does this module have?

The 2711P-T12C4A8 has a color touchscreen input.

2.What are this module’s communication options?

This unit uses both Ethernet and an RS-232 port for communication across a network.

3.What type of memory does this unit have?

The 2711P-T12C4A8 has a memory capacity of 512 MB RAM.

4.What are the supported topology of the embedded Ethernet port?

The Ethernet port is limited only for linear topology.

5.What is the power supply requirement of the 2711P-T12C4A8.

The 2711P-T12C4A8 requires a power supply voltage range of 100-240VAC along a frequency of 50-60 Hz.

Product Applications

Oil, Chemical and Natural Gas: Used for pump station control, tank farm monitoring, and local monitoring of distillation towers and oil pipelines.

Water Treatment and Environmental Engineering: Applied to centralized or distributed control cabinets in urban wastewater treatment plants and waterworks.

Power and Energy Monitoring: Applied to auxiliary equipment control in power plants, integrated of substations, and local control cabinets for wind/solar power generation.
