Category：Panelviews

Product Line：PanelView Plus 7

Part Number：2711P-T15C21D8S

Weight：5.00 lbs (2.27 kg)

Display Size：15 in.

Product Family：PanelView Plus 7 Standard terminals

Operator Input：Touch

Display Type：Color active-matrix TFT

Display Area：304 × 228 mm

Resolution：1024 × 768 XGA, 18-bit color graphics

Communication Ports：1 × Ethernet, 2 × USB host

Input Voltage Range：18–30 VDC

Power Consumption：50 W max (2.1 A at 24 V DC)

Backlight：White LED, solid state, Life: 50,000 h min at 40 °C to half-brightness, backlight is not replaceable

Input Type：Touchscreen

Display Color：TFT Color Display

Memory：512 MB

Input Voltage：24 VDC

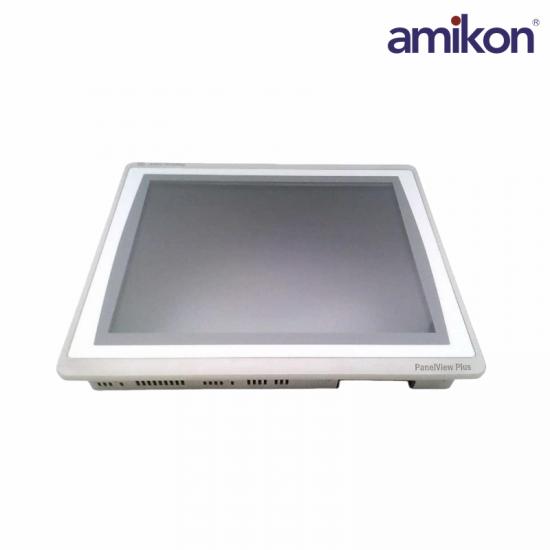

The 2711P-T15C21D8S comes with a 15-inch, color Thin-Film-Transistor (TFT_ LCD screen with viewing area of 304 x 228 mm, display resolution of 1024 x 768 XGA, 18-bit color graphics and aspect ratio of 4:3.   For operator interaction, the 2711P-T15C21D8S is provided with an analog resistive touchscreen interface with actuation lifespan of 1 million presses.   This touchscreen interface is recommended to be operated at an actuation force of 100 grams, with a gloved finger or plastic stylus.   With touchscreen input, operator is permitted to directly interact with the published runtime objects.   Communication is established using the embedded One (1) Ethernet interface that supports linear topology.   This port may be directly connected to a ethernet port or via an external ethernet switch such as Stratix Ethernet switch.   This operator terminal is powered by supplying a voltage supply input of 18-30VDC with nominal supply of 24VDC.   It has a power consumption of 50 W max (2.1A at 24V DC) and Heat dissipation of 30 Watts or 102 BTU.   It has an operating temperature of 0-55 °C (32-131 °F), operating altitude of 2000 M and operating shock and vibration of 15 g at 11 ms and 2g peak at 57…500 Hz, respectively.
