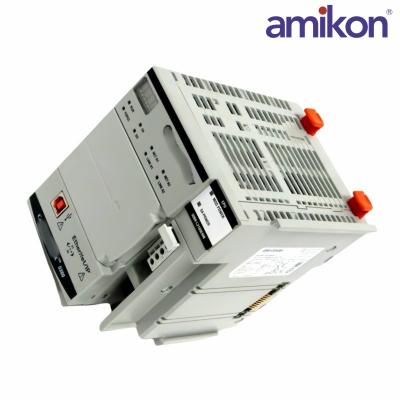

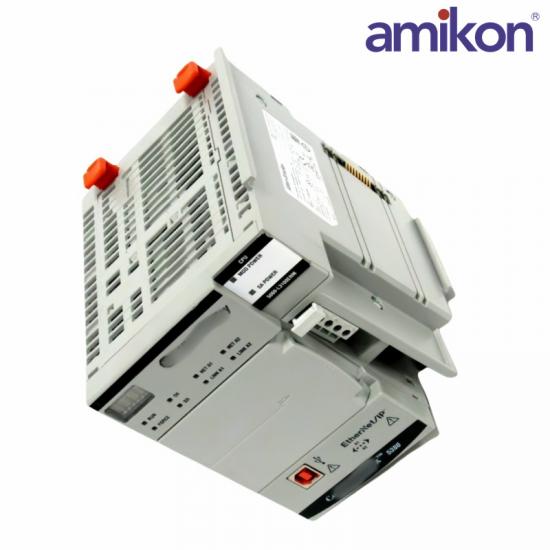

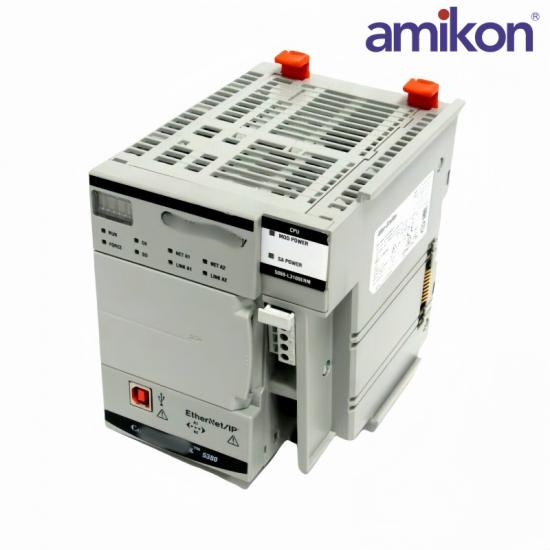

The 5069-L3 100ERM is a motion controller from 5380 series, designed to handle high-performance motion control tasks in industrial systems. It is a part of the  5380 family, providing powerful motion control capabilities, along with integrated control and safety functions, all within a compact, modular platform.

The 5069-L3 100ERM is designed to manage high-speed motion control applications, including servo motors, variable frequency drives (VFDs), and other motion components.

It 5069-L3 100ERM supports multi-axis motion control, ideal for applications such as robotics, material handling, packaging, assembly lines, and CNC machinery.

This 5069-L3 100ERM motion controller integrates motion control and standard functions into a single controller, reducing the need for separate motion controllers or PLCs.

The 5069-L3 100ERM features a high-performance processor that supports real-time motion control processing.

The 5069-L3 100ERM processor can control both point-to-point motion and more complex continuous motion in multi-axis systems.

The 5069-L3 100ERM controller can handle a variety of motion profiles such as linear, circular, and cam-based profiles.

The 5069-L3100ERM is compatible with various motion modules, including servo drives and motion I/O modules, enabling precise control of actuators, motors, and other mechanical components.

Ethernet/IP: Supports Ethernet/IP communication for high-speed data transfer and integration with other systems.

The 5069-L3 100ERM controller supports Motion over Ethernet/IP, which enables high-performance motion control communication across the network for more synchronized and real-time motion control.

The 5069-L3100ERM supports CIP Motion over Ethernet/IP, which ensures standardized motion communication for compatibility with other devices.

The 5069-L3 100ERM is part of the  modular system, allowing for easy integration of additional motion I/O modules and other peripherals.

The 5069-L3 100ERM  includes safety features like Safe Torque Off (STO), Safe Stop 1 (SS1), and Safe Speed Monitor (SSM), ensuring safe operation in critical applications where human interaction with moving machinery is common.

The 5069-L3100ERM operates within a wide temperature range of -25°C to 60°C (-13°F to 140°F), making it suitable for diverse industrial environments.

The 5069-L3 100ERM is powered by a 24V DC supply, which is standard for most industrial control systems.

5069-L3 100ERM Dimensions:

Height: 5.0 inches (127 mm)

Width: 4.4 inches (112 mm)

Depth: 3.5 inches (89 mm)
