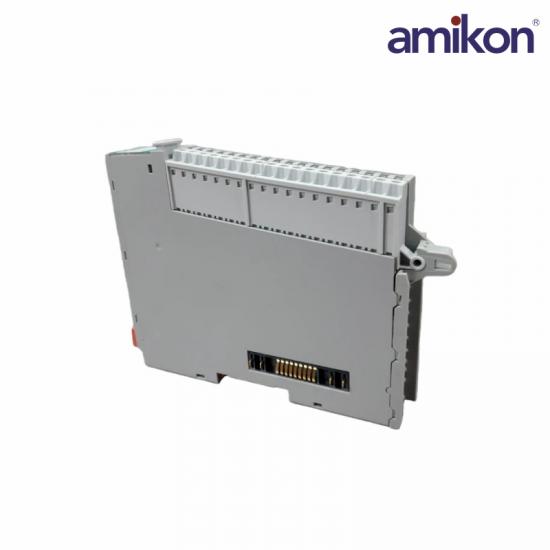

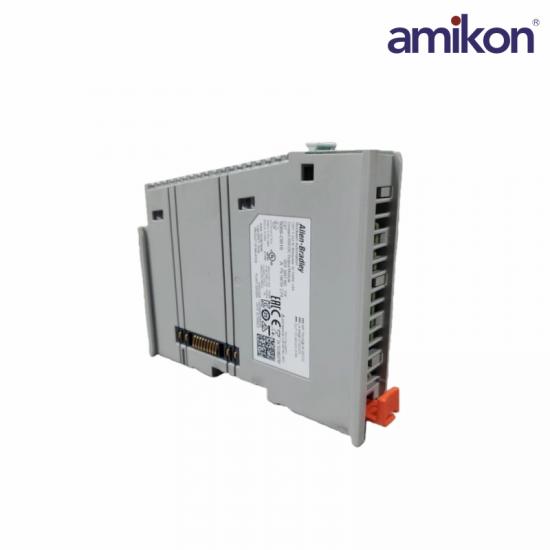

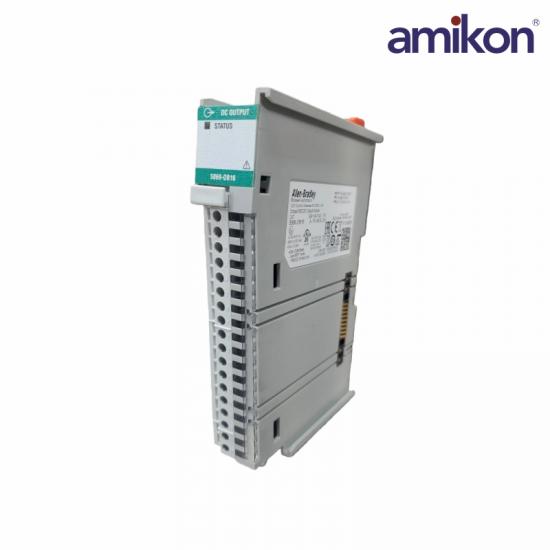

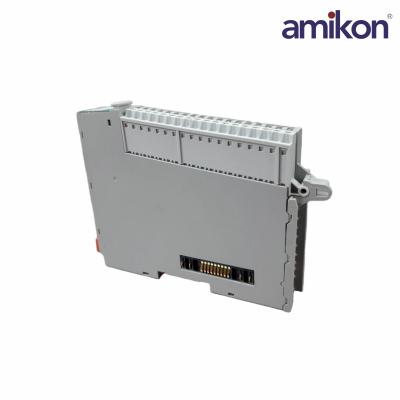

Part Number: 5069-OB16

Weight: 0.56 lbs (0.26 kg)

Module Type: DC Output Module

Series: Compact 5000 I/O

Number of Outputs: Sixteen (16) DC Output Channels

Output Configuration: 1 Group of 16 Channels (Sourcing)

Output Voltage Signal, Nominal: 24 VDC

Output Voltage Signal Range: 10–32 VDC

Voltage Category: 12/24 Volts DC Source

Output Voltage Range: 10–32 Volts DC

Duration of Fault Mode per Point:

1 s, 2 s, 5 s, 10 s, Forever (Default)

Power Dissipation: 3.25 Watts

Minimum Pulse Width: 200 µs @ 0.5 A @ 25 °C (77 °F)

The 5069-OB16 is a Discrete output module that belongs to the Compact 5000 I/O product family. It provides an output voltage range of 10-32VDC with nominal output of 24VDC. It has an output current rating of 0.5 A resistive per channel @ 10…32V DC and 8 A resistive per module @ 10…32V DC, max. Each channel is able to withstand maximum surge current of 1 A for 10 ms per point that is repeatable for every 2s.

Similar to other output modules, this 5069-OB16 module is mainly used to energize and actuate electrical loads. However, the 5069-OB16 is compatible with devices that operates at voltage category of 12/24VDC. This module has a minimum On-state voltage of 10VDC and maximum of 32VDC with minimum On-state current of 1 mA per channel. Each channel has an output delay time of ? 100 µs, ±10 µs @ 25 °C (77 °F) @ 0.5 A for On to Off and Off to On transitions. The module’s output has a minimum pulse width of 200 µs @ 0.5 A @ 25 °C (77 °F).

Frequently asked questions：

Q1: What is the 5069-OB16?

A: The 5069-OB16 is an Compact I/O digital output module designed for use with control systems, providing reliable 24 VDC sourcing outputs for industrial applications.

Q2: What is the nominal output voltage of the 5069-OB16?

A: The 5069-OB16 module has a nominal output voltage of 24 VDC, making it compatible with most standard industrial field devices.

Q3: What is the 5069-OB16 supported output voltage range?

A: The 5069-OB16 supports an output voltage range of 10 to 32 VDC, allowing flexibility for various industrial power supply conditions.
