PLC Module Industrial Incremental Encoders

845H-SJDZ24FWY2C

Price and Availability Inquiry

The 845H-SJDZ24FWY2C is a Size 25 optical incremental encoder with 1024 pulses per revolution, quadrature channels, a zero index and a 5 V differential line-driver output.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model 845H-SJDZ24FWY2C and required quantity in your inquiry.

845H-SJDZ24FWY2C

Technical Specifications

Official identification, electrical, interface, installation and ordering data for the 845H-SJDZ24FWY2C 1024 ppr size 25 incremental encoder.

01Product IdentityOfficial model identification

ManufacturerPLC Module

Article Number845H-SJDZ24FWY2C

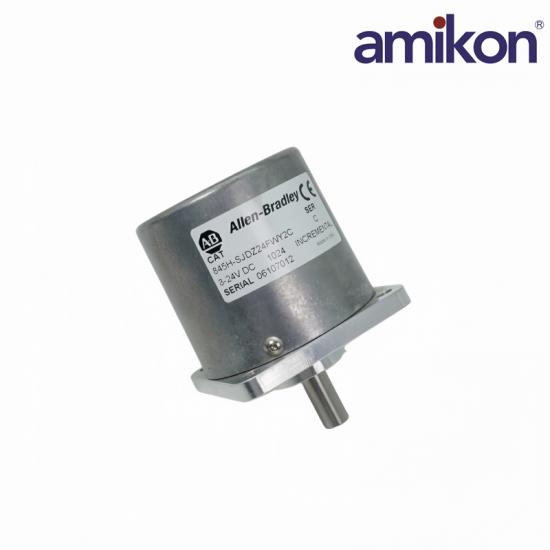

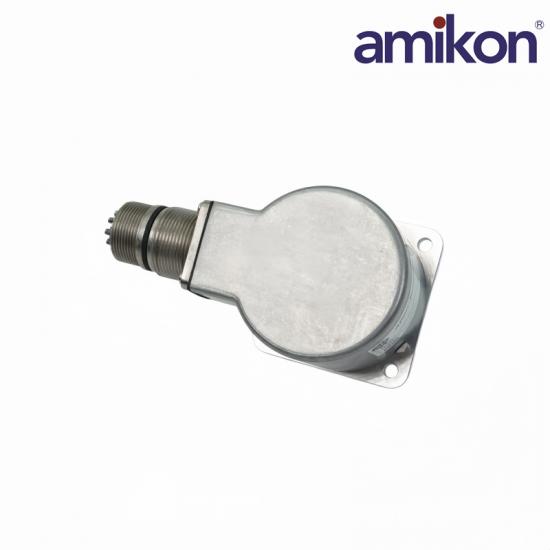

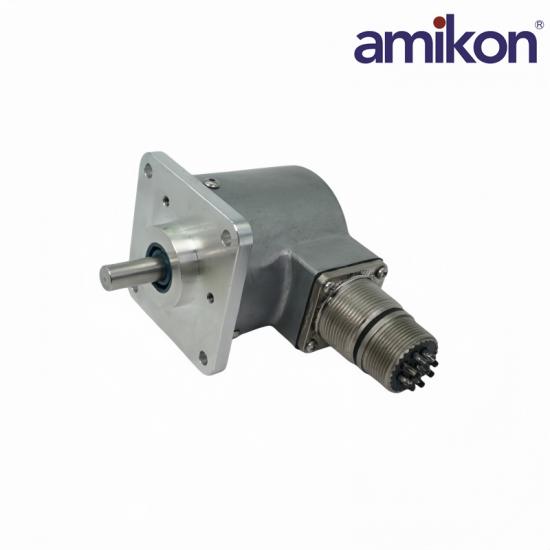

Product Designation1024 PPR Size 25 Incremental Encoder

Product FamilyIndustrial Incremental Encoders

02Incremental SignalPublished encoder output data

RESOLUTION1024 pulses per revolution

CHANNELSA and B plus zero index

QUADRATURE90° electrical separation

MAXIMUM FREQUENCY210 kHz

03Electrical & ConnectionOption-code configuration

SUPPLY8–24 V DC

CURRENT150 mA maximum

OUTPUT5 V differential line driver

CONNECTORRadial; mating connector included

04Mechanical & EnvironmentSize 25 operating limits

MAXIMUM SPEED6000 rpm

ENCLOSUREIP66 / NEMA Type 4

OPERATING TEMPERATURE0 to 60 °C

DYNAMIC RATING50 g shock; 20 g vibration

845H-SJDZ24FWY2C Product Support

Frequently Asked Questions

Product-specific compatibility, application, installation, commissioning and ordering guidance for 845H-SJDZ24FWY2C.

How many pulses per revolution does this encoder provide?

Option code FW identifies 1024 pulses per revolution; confirm that the receiving counter is configured for the intended edge multiplication.

Which signals must the receiving device accept?

The encoder supplies quadrature A and B channels plus a zero index through a 5 V differential line-driver interface.

Which supply range is required?

The specified electrical option uses an 8–24 V DC supply and draws up to 150 mA.

How is the field cable connected?

This configuration uses a radial connector and includes the mating connector; verify pin assignments before energizing.

Which mechanical limits apply to the shaft?

Keep operating speed at or below 6000 rpm and align the coupling so radial and axial loading remain within the encoder installation limits.

Can the encoder be installed in washdown or dusty areas?

Its enclosure is rated IP66 / NEMA Type 4, but cable entry, mating connector and shaft sealing must also be installed correctly.

Which details should accompany an order?

Provide 845H-SJDZ24FWY2C exactly, required quantity, shaft and mounting photos, connector orientation and the existing wiring diagram.
