Manufacturer : ADLINK

Model Number:PCI-9114

Type:Multi-Function DAQ Card

Number of channels: 16

Maximum input range: 24 V, non-polarity

Digital logic levels: 0 - 24 V, non-polarity

Input high voltage: 5 - 24 V

Input low voltage: 0 - 1.5 V

Input resistance: 2.4 KΩ @ 0.5 W

Isolation voltage: 2500 VRMS

Data transfers: Programmed I/O

Output voltage: +12 V and -12 V

Resettable fuse protection: 500 mA

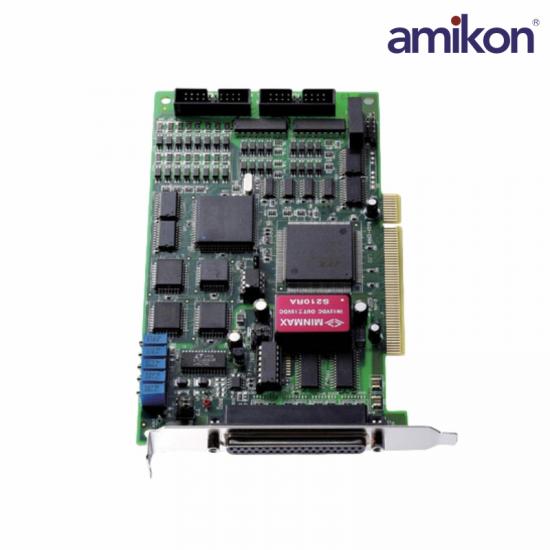

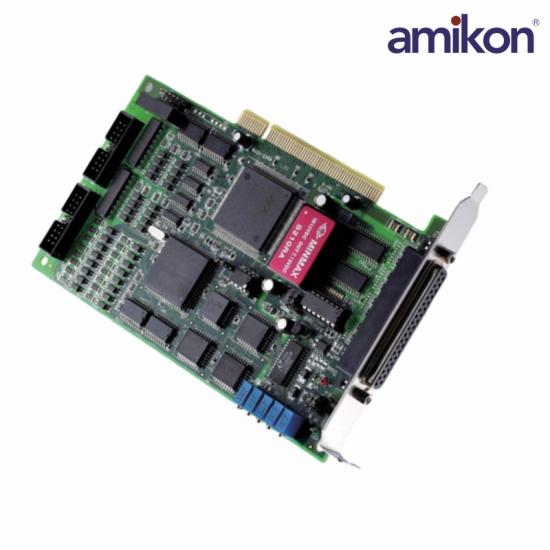

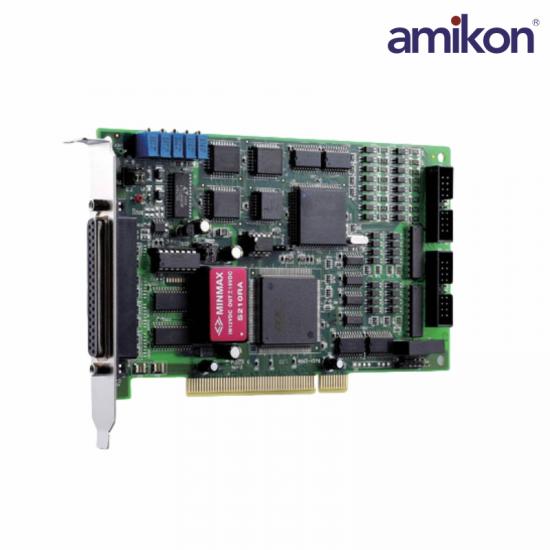

ADLINK PCI-9114 series are 32-CH, 16-bit, high resolution multi-function DAQ Cards. The PCI-9114 device features flexible configurations on analog input. The devices are divided into 2 kinds: normal gain version and high gain version. Both versions provide 4 programmable input ranges for bipolar and unipolar inputs. The A/D on the PCI-9114DG device features a sampling rate of 100 kS/s with resolution at 16 bits, while PCI-9114A-DG/HG device features a sampling rate of up to 250kS/s with resolution at 16 bits. The device supports automatic analog input scanning, and offers a differential mode for 8-CH analog inputs and maximum noise elimination, as well as single-ended modes for 16- CH analog inputs. The PCI-9114 also features 1-CH 16-bit general purpose timer/counter, 16-CH TTL isolated digital inputs and 16-CH TTL isolated digital outputs. ADLINK PCI-9114 delivers cost-effective and reliable data acquisition capabilities and is ideal for a broad variety of applications.
