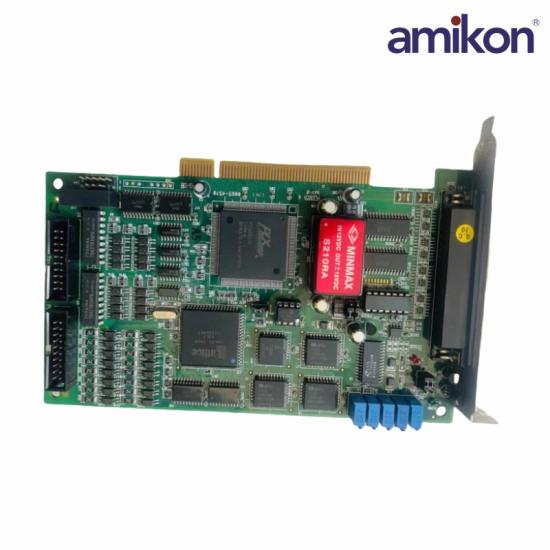

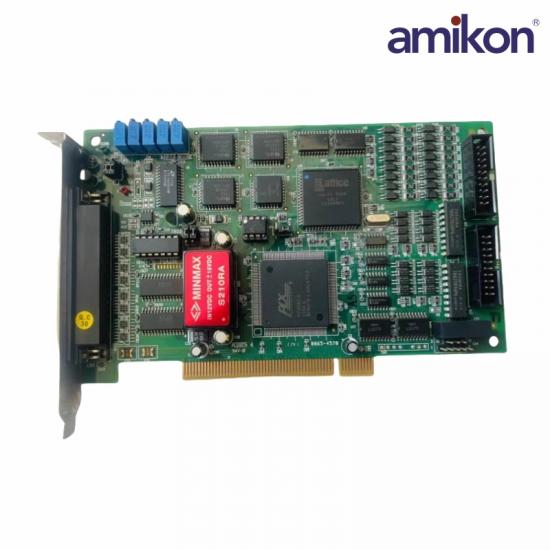

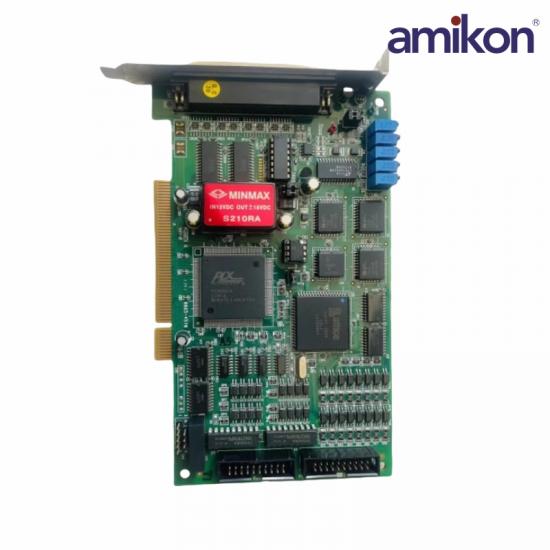

Model: PCI-9114A-DG

Form Factor: PCI bus interface

A/D Resolution: 12-bit

Sampling Rate: Up to 250 kS/s (single-channel)

Analog Input Channels: 32 single-ended or 16 differential

Analog Input Range: ±5 V, ±10 V

Bus Compatibility: 5V PCI (32-bit)

Operating System Support: Windows 10/8/7, Linux

Driver & SDK Support: LabVIEW®, MATLAB®, Visual C++®, Visual Basic®

Power Consumption: +5V @ < 1 A

Operating Temperature: 0 °C to 50 °C

Storage Temperature: -20 °C to 70 °C

Humidity: 5% to 90%, non-condensing

ADLINK PCI-9114A-DG series are 32-CH, 16-bit, high resolution multi-function DAQ Cards. The PCI-9114 device features flexible configurations on analog input. The devices are divided into 2 kinds: normal gain version and high gain version. Both versions provide 4 programmable input ranges for bipolar and unipolar inputs. The A/D on the PCI-9114DG device features a sampling rate of 100 kS/s with resolution at 16 bits, while PCI-9114A-DG/HG device features a sampling rate of up to 250kS/s with resolution at 16 bits. The device supports automatic analog input scanning, and offers a differential mode for 8-CH analog inputs and maximum noise elimination, as well as single-ended modes for 16- CH analog inputs. The PCI-9114 also features 1-CH 16-bit general purpose timer/counter, 16-CH TTL isolated digital inputs and 16-CH TTL isolated digital outputs. ADLINK PCI-9114A-DG delivers cost-effective and reliable data acquisition capabilities and is ideal for a broad variety of applications.
