Description：

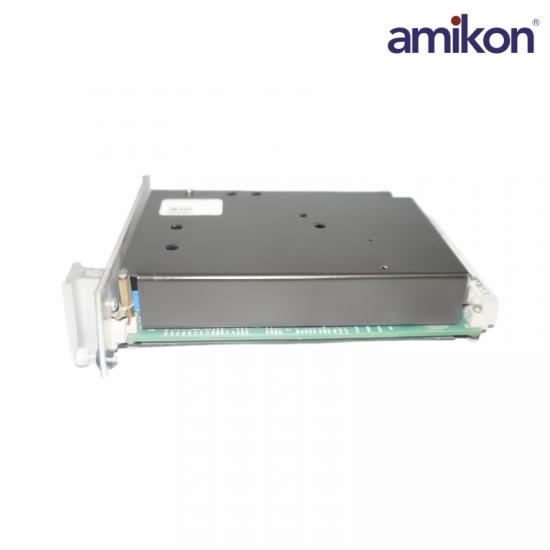

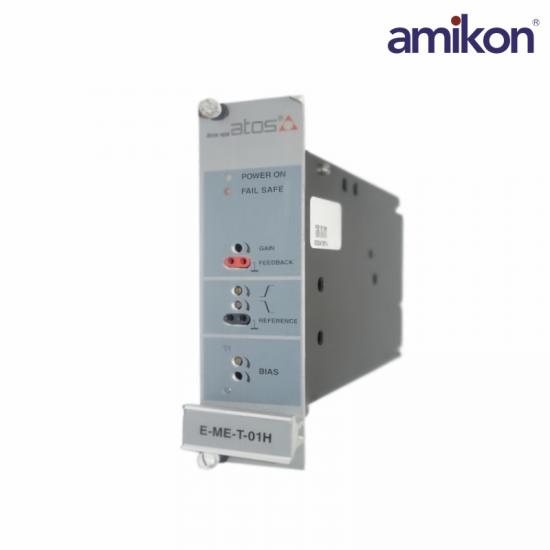

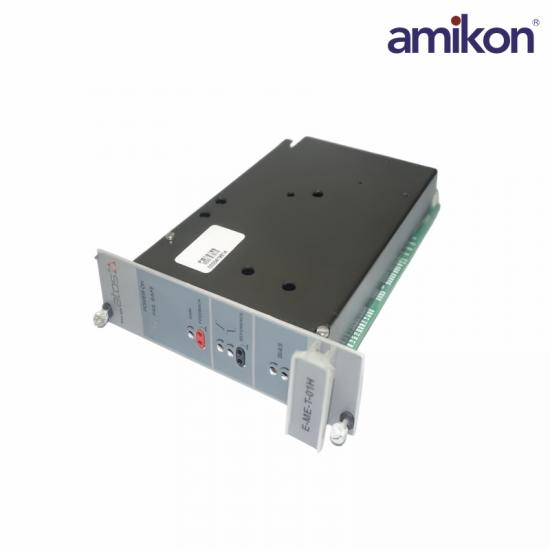

The ATOS E-ME-T-01H is a high-performance Analog Electronic Driver used for precise control of proportional hydraulic valves in industrial and motion control systems. This driver module provides accurate signal regulation and stable valve control, making it suitable for hydraulic applications requiring high dynamic response and reliable operational performance.

With a maximum power consumption of 50W, the E-ME-T-01H supports efficient operation in demanding industrial environments. The module accepts reference signal variation ranges of ±10V (switch position 1) and ±5V (switch position 2), allowing flexible integration with different control systems and architectures. The spool feedback signal through connector T2 operates at ±5V, ensuring accurate closed-loop control and stable valve positioning.

The driver features high input signal impedance with voltage Ri >50 kΩ (/I option Ri = 316 Ω), helping maintain reliable signal integrity during operation. It also provides potentiometer supply outputs of +10V/10mA at contact 10c and -10V/10mA at contact 14c for external control adjustments and calibration functions.

Specification：

Frequently asked questions

Q1: What is the ATOS E-ME-T-01H Analog Electronic Driver?

A1: It is an analog electronic driver used for controlling proportional hydraulic valves in industrial and motion control systems.

Q2: What type of reference signal does the E-ME-T-01H driver use?

A2: The driver uses a 4–20 mA reference signal for command and control input.

Q3: What is the E-ME-T-01H required supply voltage?

A3: The E-ME-T-01H supply voltage is 24 VDC.

Q4: What is the E-ME-T-01H maximum power consumption of this driver?

A4: The E-ME-T-01H maximum power consumption is 50 W.

Q5: What is the E-ME-T-01H solenoid supply current specification?

A5: The E-ME-T-01H solenoid supply current is 3.3 A with square wave PWM control.

Product Applications

Semiconductor Manufacturing: Precision workpiece stage displacement systems for high-precision equipment (with high response speed to achieve nanometer-level stepping).

Automotive and Parts Manufacturing: Hydraulic servo control systems for body stamping equipment and production lines.

Chemical and Coal Chemical Industries: Precise fluid and valve opening regulation in high-temperature and high-pressure environments.

Road/Rail Transportation and Marine Engineering: Hydraulic transmission control for heavy-duty machinery, tunnel boring machines, and ship steering gear.

Packaging/Paper/Printing: Tension control and correction systems for high-speed production lines.

Features:

bias regulation

scale and dissymmetrical ramps regulation

voltage(standard) or current (/1 option) reference signal

voltage(standard) or current (/C option) feedback signal

test point for reference and feedback con trol on front panel

factory pre-set

Eurocard format (DIN 41494-plug-in unit)

electronic filters on input and output lines

CE mark according to EMC directive

both sides of the card with shielded cover

with E faston connector
