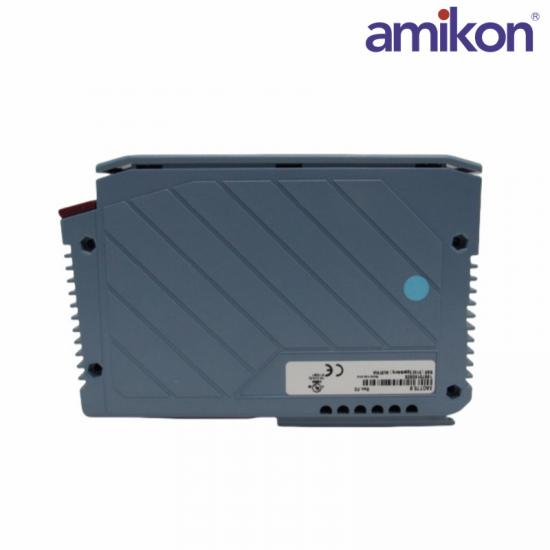

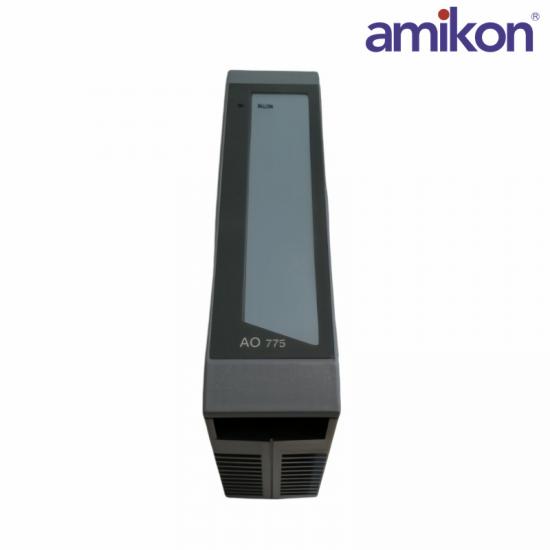

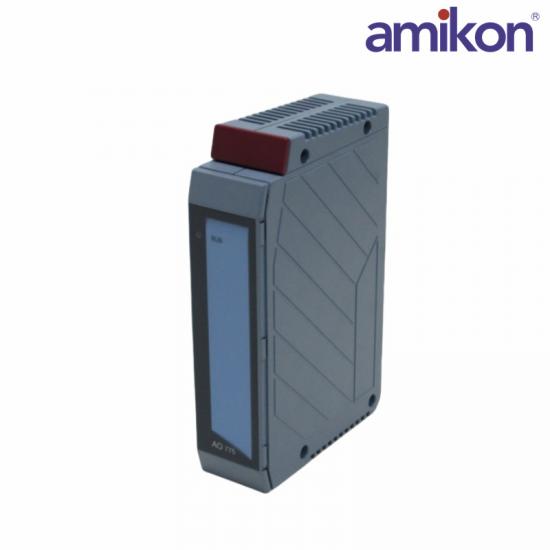

AO775 3AO775.6 Short description

I/O module 8 analog outputs 0 to 20 mA

AO775 3AO775.6 Power consumption：

24 VDC   4.5 W

5 VDC 1.0 W

Total 5.5 W

AO775 3AO775.6 Analog outputs：

Output：0 to 20 mA

Digital converter resolution：11-bit

Conversion time：250 µs for all outputs

Output protection ：Short-circuit proof

Basic accuracy：±0.5% at 20°C

AO775 3AO775.6 Operating conditions：

Degree of protection per EN 60529 IP20

AO775 3AO775.6Ambient conditions：

Temperature：

Operation：0 to 60°C

Storage：-25 to 70°C

Relative humidity：

Operation：5 to 95%

The B&R AO775 3AO775.6 is a high-performance analog output module that provides precise control of analog signals in industrial systems. It is ideal for controlling equipment that requires variable analog inputs, such as actuators, drives, and process control systems. This module integrates smoothly within B&R systems, offering flexible configuration options and robust performance in demanding industrial environments.

AO775 3AO775.6 Typically 4 channels.

Resolution: 12-bit or higher, providing precise control over the analog output

Accuracy: ±0.1% of full scale, minimizing output errors and ensuring accurate control

Output Load Capacity:

Voltage Output: Minimum load resistance of 2 kΩ per channel

Current Output: Maximum load resistance of 500Ω per channel

Dimensions: Approximately 100 mm x 25 mm x 120 mm
