Description：

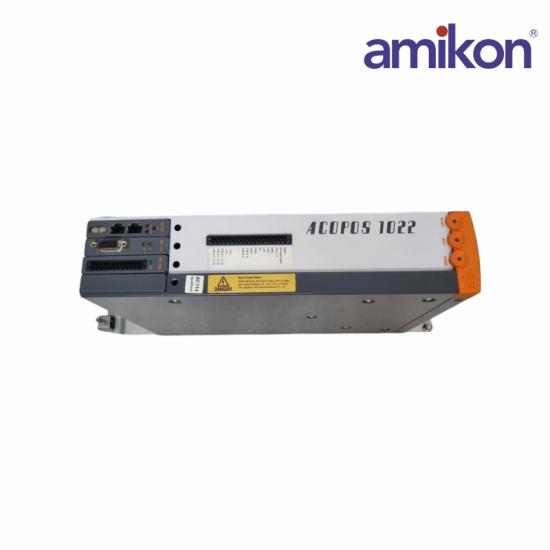

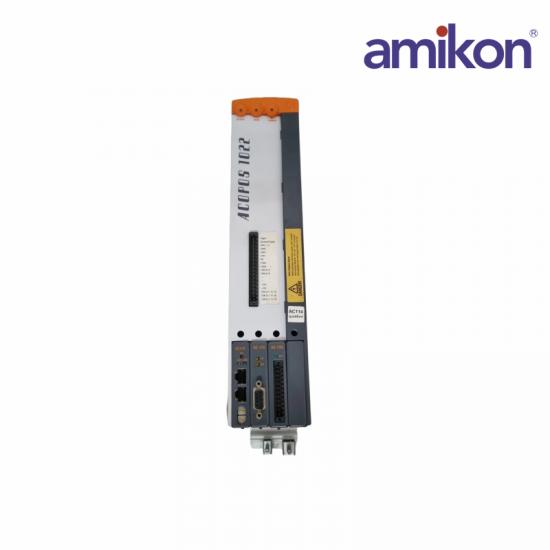

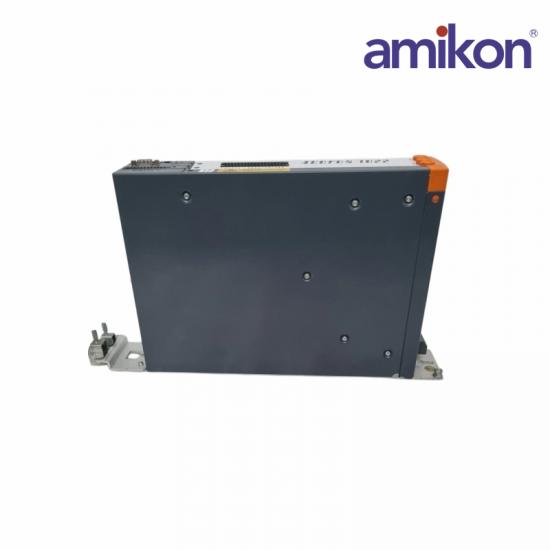

The B&R 8V1022.001-2 is an ACOPOS 1022 servo drive designed for industrial , CNC machinery, and robotics. It features a modular mechanical design, integrated line filter, integrated braking resistor, and handles a continuous output current of 2.2 A with a 1 kW power rating

The drive features four plug-in module slots, allowing flexible system expansion and configuration. It operates at a frequency of 50/60 Hz ±4% and supports a maximum installed load of 3 kVA. With a 400 VAC inrush current of 4 A and a minimum switch-on interval of more than 10 seconds, the unit ensures stable startup performance. The servo drive incorporates a DC bus capacitance of 235 µF and accepts a 24 VDC input supply with a tolerance of ±25% (maximum 30 VDC). Its input capacitance of 8200 µF and altitude derating specification of 0.22 Aeff per 1000 m above 500 m contribute to dependable operation in a wide range of industrial environments.

Specification：

Frequently asked questions

Q1: What is the B&R 8V1022.001-2 Servo Drive used for?

A: The B&R 8V1022.001-2 is a servo drive used to control and regulate servo motors in industrial systems. It provides precise motion control for applications requiring accurate positioning, speed regulation, and torque control.

Q2: How many plug-in module slots does the 8V1022.001-2 provide?

A: The 8V1022.001-2 servo drive features 4 slots for plug-in modules, allowing system expansion and flexible configuration based on application requirements.

Q3: What input frequency does the 8V1022.001-2 servo drive support?

A: The 8V1022.001-2 drive supports an input frequency of 50 / 60 Hz ±4%, making it compatible with most industrial power systems worldwide.

Q4: What is the maximum installed load of the 8V1022.001-2?

A: The 8V1022.001-2 servo drive supports a maximum installed load of 3 kVA, enabling it to power a wide range of motion control applications.

Product Applications

Packaging Machinery: Used for precise positioning in high-speed filling, labeling, sealing, and palletizing systems.

Textile Machinery: Controls high-speed, high-precision transmission in looms and dyeing equipment, improving fabric production quality.

Plastics and Rubber Machinery: Applied to mold closing and injection control in injection molding machines, ensuring precise and smooth movements.

Robots and Manipulators: Provides rapid dynamic response for multi-axis joints, enabling highly flexible grasping and handling.

Printing and Paper Machinery: Offers extremely high synchronization accuracy and speed control, ensuring accurate color registration and constant paper tension.

Machine Tools and Metalworking: Used for feed axis control in CNC machine tools, meeting the high rigidity and high precision requirements of metal cutting.
