Part Number:BES 516-114-SA1-05

Hysteresis H max. (% of Sr): 15.0 %

Load Capacitance max. at Ue: 0.15 µF

MTTF (40 °C): 1255 a

No-load Current Io max., undamped: 15 mA

Operating Voltage Ub: 10–30 VDC

Output Resistance Ra: 6.2 kΩ + D / 10.0 kΩ + D

Pollution Degree: 3

Protected Against Miswiring: Yes

Rated Insulation Voltage Ui: 75 V DC

Rated Operating Current Ie DC: 400 mA

Rated Operating Voltage Ue DC: 24 V

Rated Short Circuit Current: 100 A

Ready Delay Tv max.: 10 ms

Repeat Accuracy max. (% of Sr): 5.0 %

Residual Current Ir max.: 80 µA

Switching Frequency: 300 Hz

Utilization Category: DC -13

Voltage Drop Static max.: 1.5 V

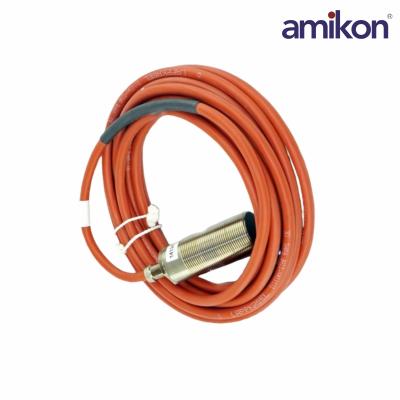

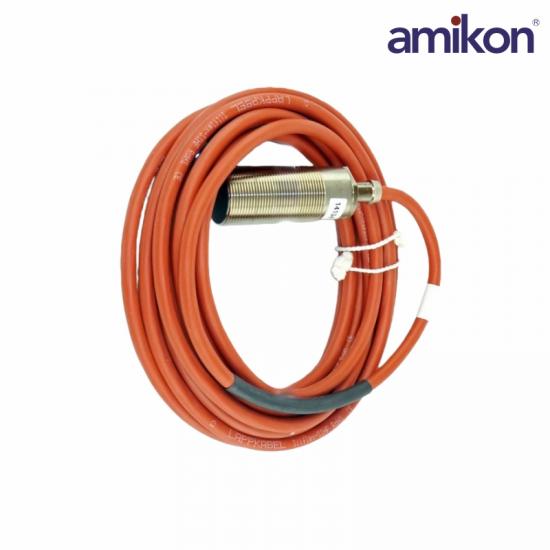

The BALLUFF BES 516-114-SA1-05 is a high-performance inductive proximity sensor designed for precise non-contact detection of metallic objects in industrial systems.

It delivers reliable switching signals even in harsh environments, supporting high-speed operation and stable performance under industrial conditions.

Frequently asked questions：

Q1: What is the BALLUFF BES 516-114-SA1-05 used for?

A: It is used for non-contact detection of metallic objects in industrial and machinery systems.

Q2: What is the switching frequency of this sensor?

A: The sensor supports a switching frequency of 300 Hz, suitable for fast-moving applications.

Q3: What is the pollution degree rating of the BES 516-114-SA1-05?

A: It has a Pollution Degree 3, making it suitable for harsh industrial environments.

Q4: What type of output resistance does this sensor have?

A: The output resistance is 6.2 kΩ + D / 10.0 kΩ + D, depending on wiring configuration.
