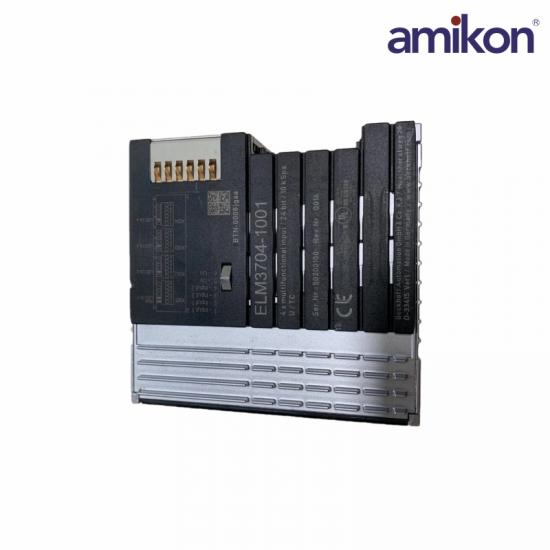

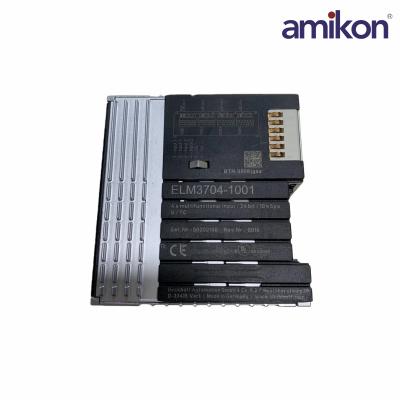

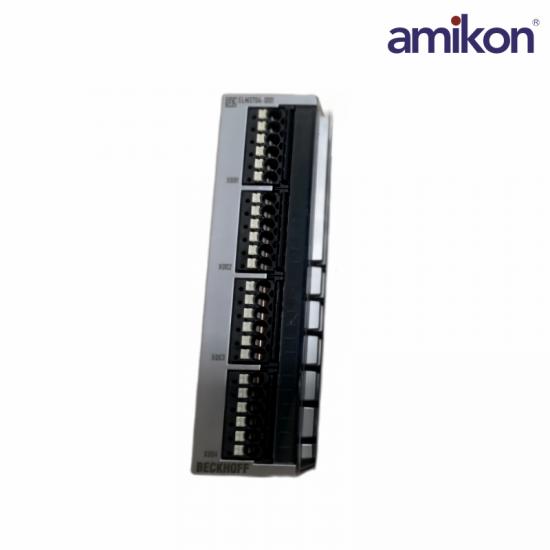

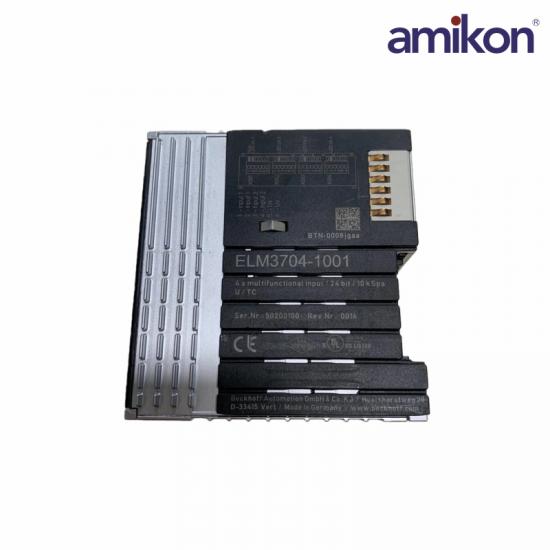

BECKHOFF ELM3704-1001 Measurement terminal module

ELM3704-1001
ELM3704-1001
ELM3704-1001

BECKHOFF ELM3704-1001 Measurement terminal module

  • Brand/Manufature:

    BECKHOFF
  • Product Origin:

    Germany
  • Lead Time:

    IN STOCK
  • Condition:

    Brand New And 100% Original
  • Certificate:

    Coo

Number of Channels:4

Technology:Multi-function (thermocouple and voltage aligned)

Signal Type:Differential

Connection Technology:2-/3-/4-/5-/6-wire

Connection Type:Push-in, service plug 6-pin

Max. Sampling Rate:Max. 100 µs / 10 ksps (per channel, simultaneously)

Oversampling Factor:n = 1…100 selectable (max. 10 ksamples/s)

Internal Resistance:> 4 MΩ

Electrical Isolation | Channel/Bus:707 V DC (type test)

Electrical Isolation | Channel/SGND:707 V DC (type test)

Current Consumption E-bus:Typ. 890 mA

Weight:Approx. 350 g

Operating Temperature:0…55 °C

Storage Temperature:-25…+85 °C

Thermal Dissipation:Typ. 3 W



The ELM3704-1001 with a sampling rate of 10 ksps is designed for fast thermocouple measurements where the ELM3344 and ELM3348 terminals with 1 ksps per channel are not sufficient. For this purpose, the ELM3704-1001 corresponds to the ELM3704-0000, but is only aligned in the thermocouple and voltage measurement function. Thus, all other measuring ranges from the ELM3704-0000 are available to the user (full/half/quarter bridge, 20 mA, 5 kΩ/RTD, IEPE) if they are calibrated on the system side.
