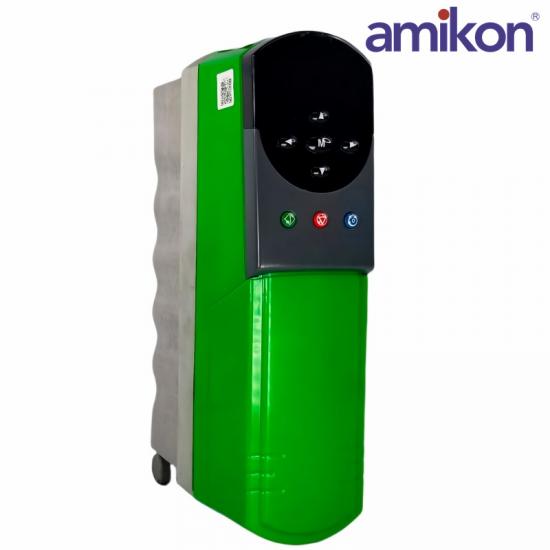

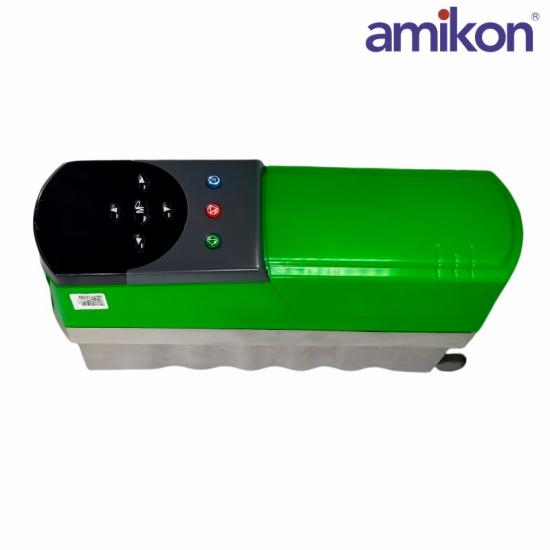

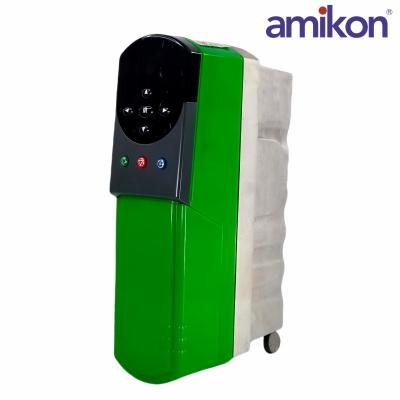

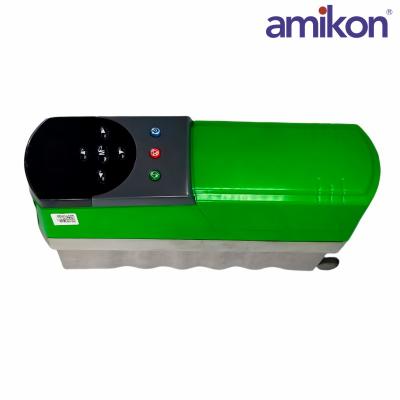

The Control Techniques UNI1405 Unidrive Inverter is a versatile, high-performance variable frequency drive designed for industrial applications that require precise motor control, energy efficiency, and reliability. This inverter is part of the Unidrive family, known for its robust design and advanced control capabilities, making it suitable for a wide range of applications in various industries.

The UNI1405 features advanced motor control algorithms, including flux vector control and sensorless vector control, providing precise and dynamic motor control.

UNI1405 Incorporates energy-saving features like regenerative braking and energy recovery systems, which contribute to lower operational costs and improved sustainability.

UNI1405 Offers a wide range of configurable digital and analog inputs/outputs, relays, and communication ports.

Model: UNI1405

Drive Type: Variable Frequency Drive (VFD)

Control Methods: Flux vector control, sensorless vector control, V/f control

Motor Types Supported: AC induction, synchronous, permanent magnet

Enclosure Type: IP20

Electrical Specifications

Voltage Range: 380-480 VAC (3-phase)

Power Ratings:

1.1 kW (1.5 HP)

2.2 kW (3 HP)

3.7 kW (5 HP)

5.5 kW (7.5 HP)

7.5 kW (10 HP)

11 kW (15 HP)

15 kW (20 HP)

Frequency Range: 0-400 Hz

Control Resolution: 16-bit

Frequency Resolution: 0.01 Hz

I/O and Communication

Digital Inputs: Configurable for various functions, including start/stop, direction, speed reference, etc.

Analog Inputs: 0-10 V, 4-20 mA

Analog Outputs: 0-10 V for speed or current feedback

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: Up to 95%, non-condensing

Weight:3 to 15 kg (6.6 to 33 lbs)
