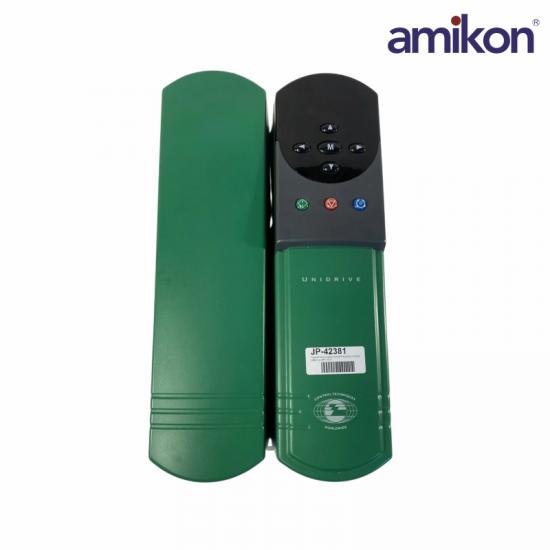

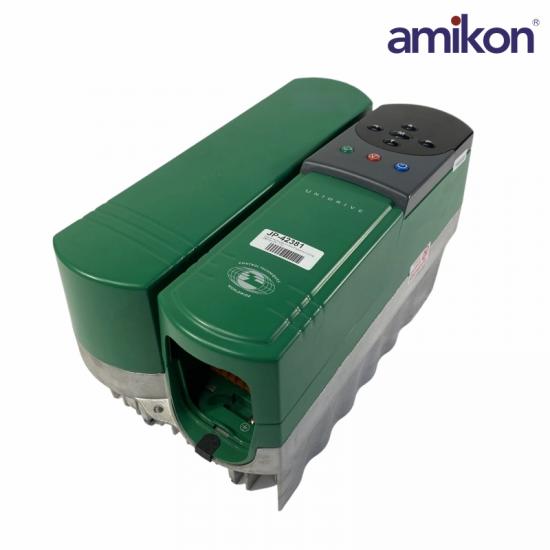

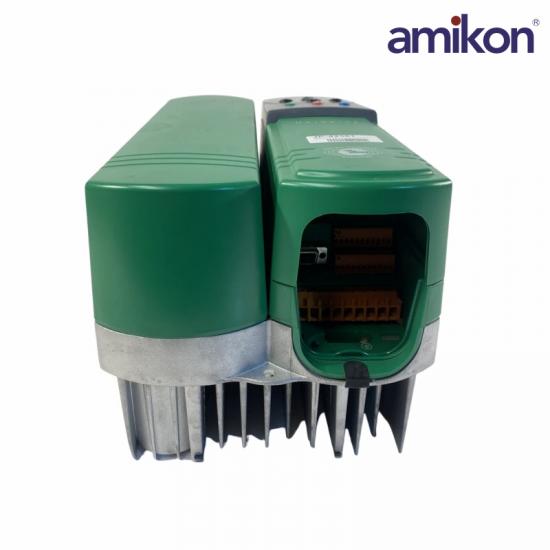

Manufacturer: Control Techniques

Series: Unidrive

Part Number: UNI2403

Product Description: Universal Variable Speed AC Drive

Weight: 8 kg (17 lbs.)

Operating Modes: Open Loop V/f, Open Loop Vector, Closed Loop Vector, Servo, Regen

Ambient Operating Temperature: 0 to 50 °C

Minimum Temperature at Power-Up: -10 °C

Humidity: 95% RH (no condensation)

Ambient Storage Temperature: -40 to 50 °C

Model Size Class: Size 2

Voltage Class: 400V

Voltage Range: 380 to 480 VAC ±10%

Nominal Power Rating: 11 kW (15 HP)

Output Current: 25A

Typical Input Current: 21A

The Control Techniques UNI2403 is classified as a universal variable speed AC drive, engineered to facilitate a range of operational modes. It supports open loop V/f control, open loop vector, closed loop vector, servo, and regeneration functionality, granting flexibility in various applications. With a power rating of 11 kW and corresponding 15 HP output, it is suitable for diverse industrial tasks.

Weighing in at 8 kg (17 lbs.), this unit can operate efficiently within the ambient temperature range of 0 to 50 °C, ensuring stability under normal conditions. However, it is capable of powering up even at minimum temperatures of -10 °C, allowing for versatility in colder environments. The absolute humidity tolerance is rated at 95% relative humidity, avoiding condensation that could impact performance.

For storage, the ambient temperature can safely range from -40 to 50 °C, extending potential application scenarios. Designed as a size 2 model, the UNI2403 operates on a voltage class of 400V with a permissible voltage fluctuation of ±10% within the 380 to 480 VAC range. The typical input current Figure for this drive is 21A while the output current can reach up to 25A, ensuring ample power delivery for various motor-driven applications.
