CUTLER HAMMER 1785K-PMPP-1700 OPERATOR INTERFACE

Ethernet port for network connectivity and integration into distributed control systems.

USB ports for data transfer and configuration.

Memory:

The interface panel usually has built-in memory, typically 512 MB to 1 GB, for storing project files, user settings, and historical data.

Processor:

Equipped with an industrial-grade processor, such as an ARM or x86-based CPU, ensuring reliable performance for control and monitoring tasks.

Power Supply:

Operates on a DC power supply, typically in the range of 24V DC (with a tolerance range depending on the specific model).

Environmental Ratings:

Operating Temperature: Designed to operate in a temperature range of 0°C to +50°C (32°F to 122°F).

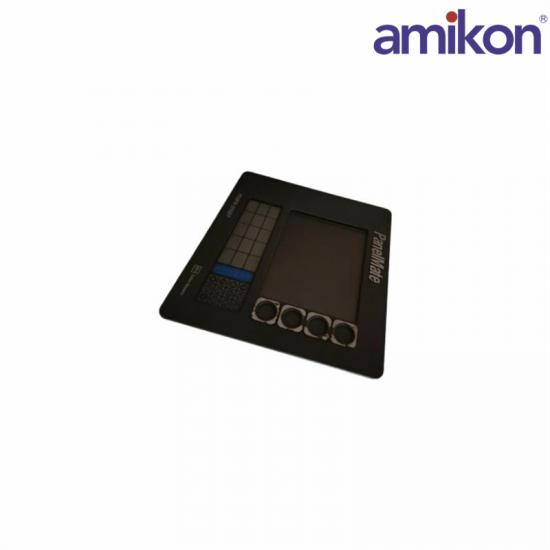

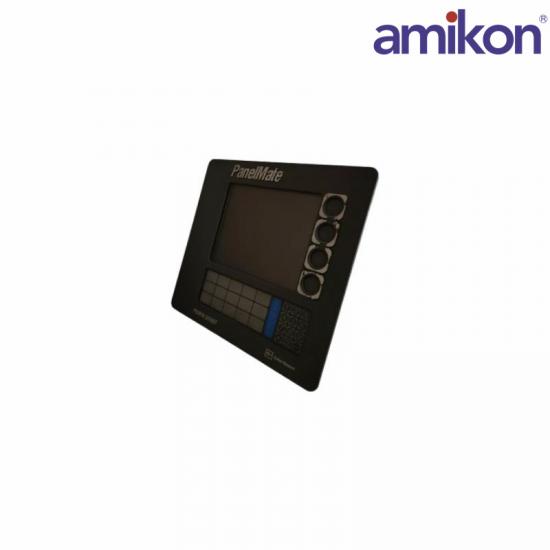

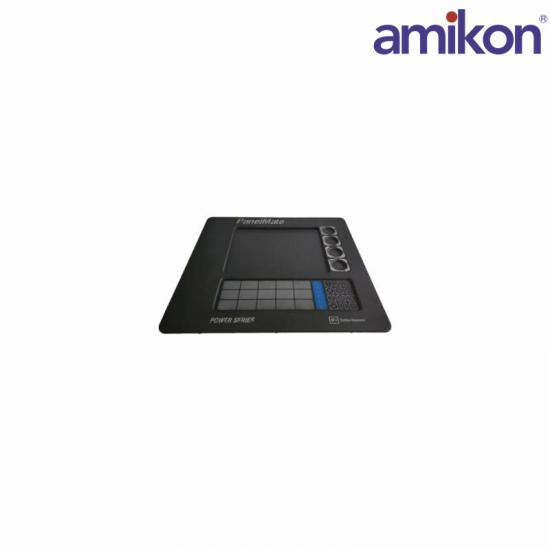

The Cutler-Hammer 1785K-PMPP-1700 is an operator interface panel used for controlling and monitoring industrial processes.

The operator interface typically features an LCD display with a graphical interface for clear visualization of process parameters and controls.

The screen size is generally around 7 inches to 12 inches, providing sufficient display area for detailed monitoring and control.

The display resolution is typically around 640 x 480 pixels (VGA), offering good clarity for graphical elements and text.

Often equipped with a resistive or capacitive touchscreen for user interaction, allowing operators to navigate through menus and input data easily.

Input/Output Connectivity:

Supports multiple I/O ports for connectivity with other devices, such as:

RS-232/RS-485 serial ports for communication with PLCs and other control equipment.
