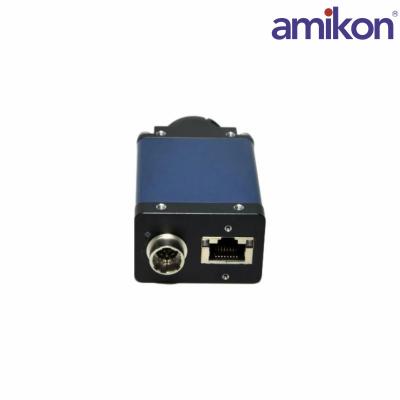

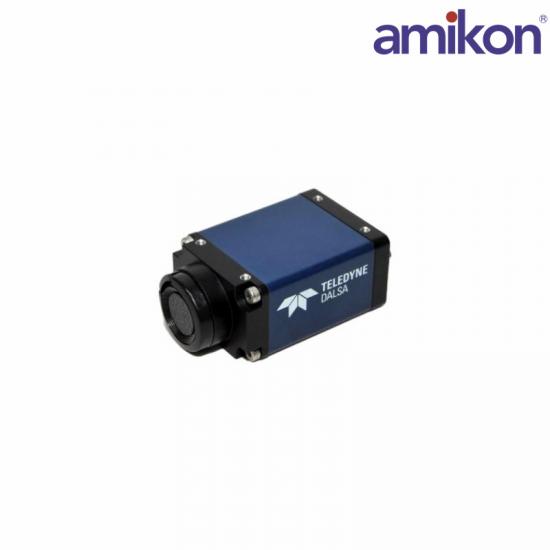

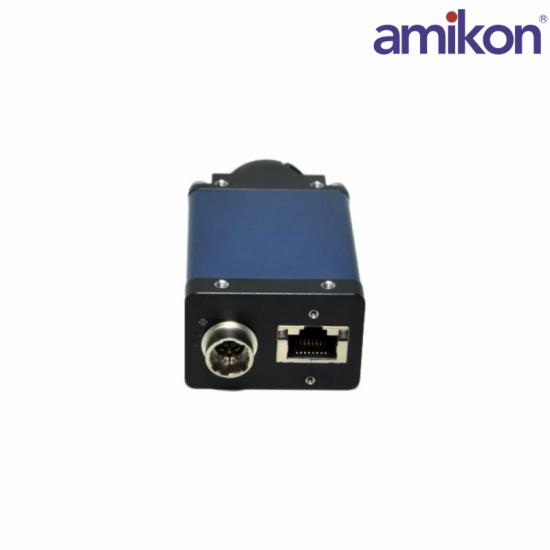

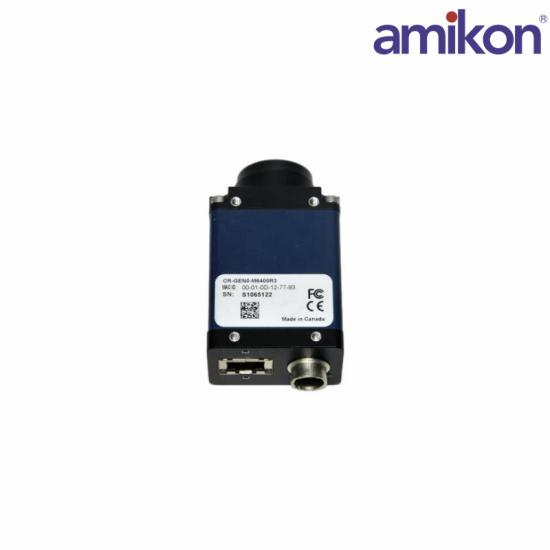

DALSA CR-GEN0-M6400R3 Industrial Camera

 Interface Type: GigE Vision (Gigabit Ethernet)

Data Transfer Rate: Up to 1 Gbps (1000 Mbps)

Connector: RJ45 connector for data and control signals

Power Supply: Power over Ethernet (PoE) supported.

Dynamic Range: Approximately 60 dB

Quantum Efficiency: High sensitivity for low-light imaging

Signal-to-Noise Ratio (SNR): Low noise performance for clear image capture

Operating Temperature: 0°C to +50°C

Storage Temperature: -20°C to +70°C

Humidity: 10% to 90% non-condensing

Vibration and Shock Resistance: Designed to withstand industrial environments

Dimensions: Approximately 29 mm x 44 mm x 58 mm

Weight: About 100-150 grams

Lens Mount: C-mount (compatible with various industrial lenses)

Housing: Robust metal housing with an IP30 rating

Power Supply: Power over Ethernet (PoE) or external power supply (12-24V DC)

Power Consumption: Typically around 3-5 W, depending on configuration

The DALSA CR-GEN0-M6400R3 industrial camera is part of the Genie Nano series, known for high-speed, high-resolution imaging suitable for various industrial applications.

Key Parameters:

1. Camera Specifications:

Model: CR-GEN0-M6400R3

Series: Genie Nano

Type: Area scan industrial camera

Resolution: 6.4 megapixels (3072 x 2048 pixels)

2. Sensor Specifications:

Sensor Type: CMOS (Complementary Metal-Oxide-Semiconductor)

Shutter Type: Global shutter (eliminates motion blur)

Pixel Size: 3.45 µm x 3.45 µm

Sensor Format: 1" optical format

3. Frame Rate:

Maximum Frame Rate: 10 frames per second (fps) at full resolution.

Higher Frame Rates: Possible at reduced resolutions.
