Brand: Deep Sea Electronics (DSE)

Model: DSE4520 MKII

Display: Backlit LCD (128 x 64 pixels)

Keypad: 6-button membrane keypad

Enclosure Rating: IP65 (front panel)

Operating Temperature: -25°C to +70°C

Storage Temperature: -40°C to +85°C

Humidity: 95% RH (non-condensing)

Supply Voltage: 8-35 V DC (9-32 V DC for CANbus operation)

Power Consumption: Typically 1.5 W (excluding external loads)

Battery Charging Output: 13.6 V DC, 1 A max

Digital Inputs: 6 (configurable)

Relay Outputs: 5 (configurable)

Analog Inputs: 2 (configurable)

Dimensions: 202mm x 150mm x 55mm (7.95" x 5.91" x 2.17")

Weight: 0.5 kg (1.1 lbs)

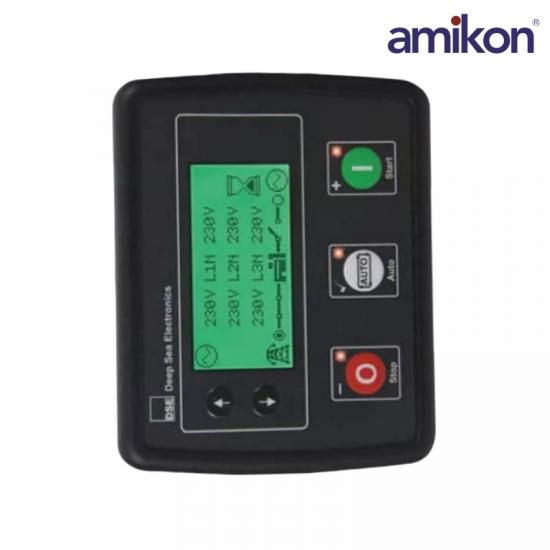

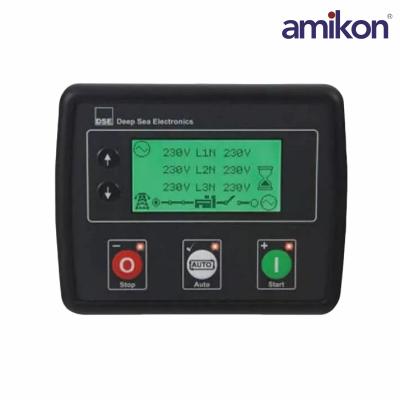

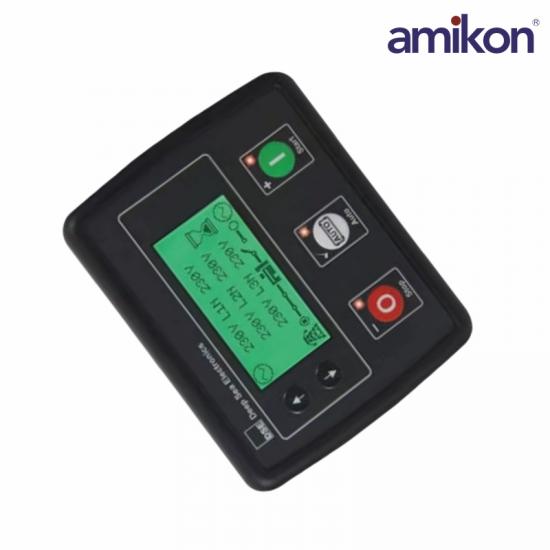

The Deep Sea Electronics DSE4520 MKII is a control panel designed for the monitoring and control of generator sets, providing advanced functionality and user-friendly operation for both industrial and commercial applications. This robust and reliable module offers a wide range of features for engine and generator protection, ensuring efficient performance and minimizing the risk of operational failures.

The DSE4520 MKII allows operators to monitor critical parameters such as voltage, current, frequency, and engine conditions including oil pressure, coolant temperature, and fuel level.

Equipped with a backlit LCD display, the DSE4520 MKII offers clear visibility of real-time system data, fault events, and status information. The user interface is intuitive, with easy-to-navigate controls that allow operators to quickly access operational settings and system diagnostics. The DSE4520 MKII control panel is designed to detect and alert users of any potential issues, including over/under voltage, phase failure, and other protective parameters, enabling swift corrective action and reducing downtime.

The DSE4520 MKII offers multiple I/O options for flexible control and customization, with support for Modbus RTU communication for integration with other systems. It is ideal for applications where generator sets need to be remotely monitored and controlled.

The DSE4520 MKII panel is suitable for use in a variety of sectors, such as power generation, emergency backup systems, and critical infrastructure, ensuring continuous and reliable operation.
