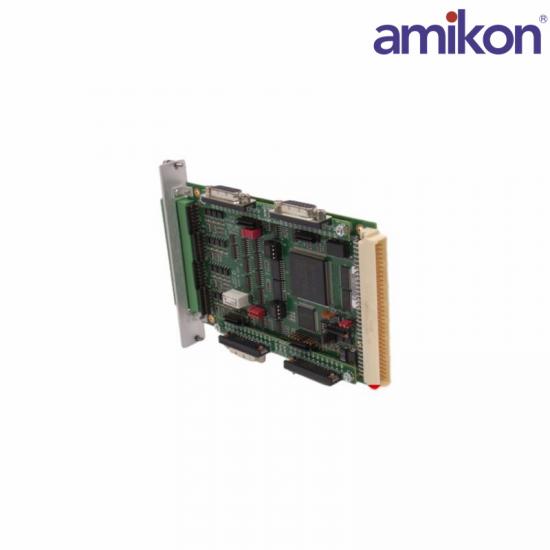

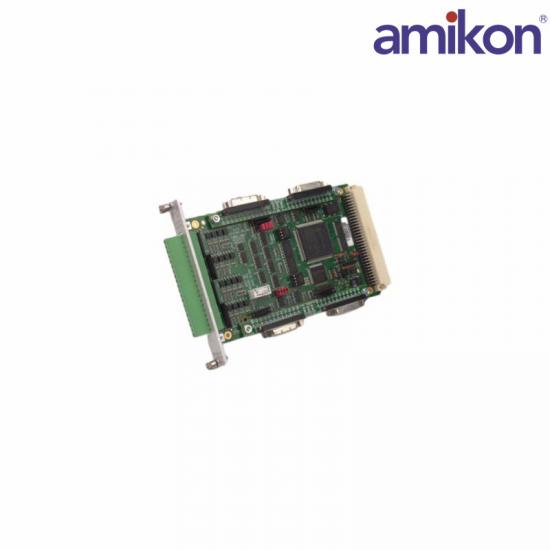

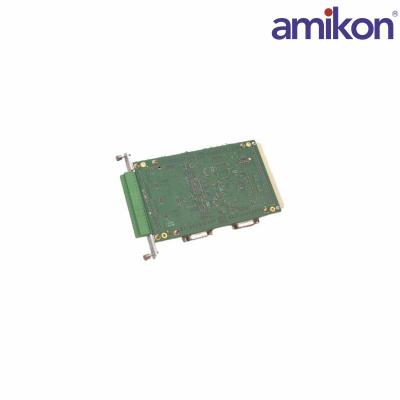

DELTA ACC-24E2S  603581-101 2-AXIS Axis Expansion Board

Digital Outputs: Relay or transistor outputs for controlling actuators or alarms.

Analog Inputs/Outputs: May include analog inputs for position feedback or sensor data.

Control Modes: Supports various control modes, including position control, velocity control, and torque control.

Interpolation: Capable of linear and circular interpolation between axes for smooth motion control.

Electronic Gearbox: Supports electronic gearing functions for synchronized motion.

Operating Temperature Range: Usually rated for 0°C to 60°C.

Humidity: Typically operates in environments with 5% to 95% non-condensing humidity.

The DELTA ACC-24E2S (603581-101) 2-Axis Axis Expansion Board is designed for enhancing the capabilities of Delta’s motion control systems.

Power Supply Voltage: Usually operates on a DC power supply, typically in the range of 24 V DC.

Power Consumption: Varies based on usage but generally around 20-30 W.

Axes Supported: Designed to control 2 axes simultaneously.

Digital Inputs: Multiple digital input channels for limit switches, emergency stops, and other control signals.
