Det-Tronics · Eagle Quantum Premier

EQ3700DW

Price and Availability Inquiry

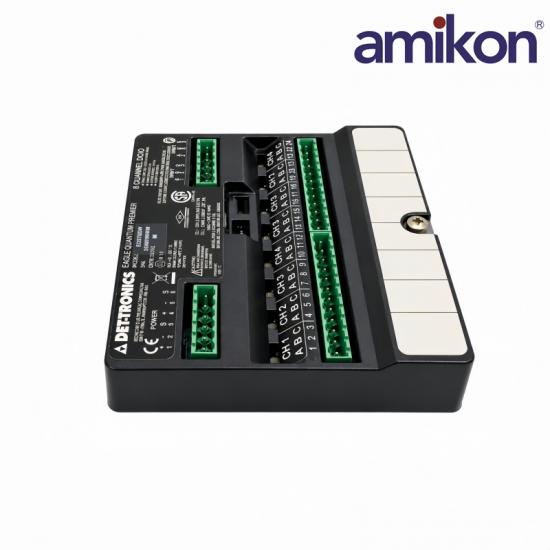

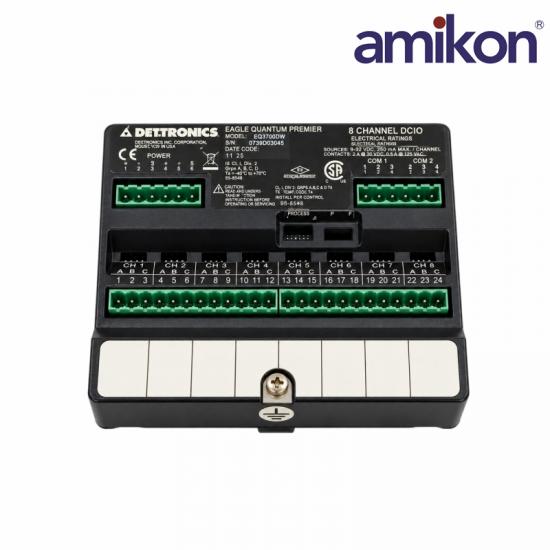

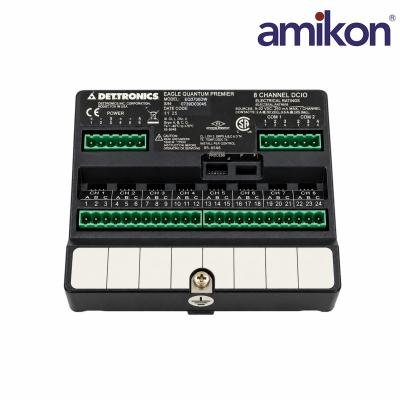

The Det-Tronics EQ3700DW, part number 007371-003, is a DIN-rail 8-channel discrete input/output module for the Eagle Quantum Premier fire and gas safety system. Each channel is configurable as an input or output with selectable wiring supervision.

Sales SupportDirect specialist contact

QuotationCurrent commercial details

DeliveryDHL · FedEx · UPS

Fast quotation support Send the model and required quantity directly to Lisa Lin using the contact options on the right.

Your AMIKON Contact

LL Lisa LinSales Specialist

WhatsApp +86 18965423501

Email sales7@amikon.cn

Request a Quote on WhatsApp Send Email Inquiry

For faster service, please include the model EQ3700DW and required quantity in your inquiry.

Det-Tronics EQ3700DW

Technical Specifications

Official identification, I/O configuration, electrical and installation data

01Product IdentityOfficial model identification

MANUFACTURERDet-Tronics

MODELEQ3700DW

PART NUMBER007371-003

SYSTEM FAMILYEagle Quantum Premier (EQP)

02I/O ConfigurationPublished DCIO channel data

CHANNELS8 configurable discrete I/O

CHANNEL MODESInput or output

DEVICE STATUS LEDS2

CHANNEL INDICATORS2 LEDs per channel

03Electrical DataPublished module ratings

INPUT VOLTAGE24 VDC nominal; 18–30 VDC

POWER REQUIREMENTS3 W nominal; 11 W maximum

OUTPUT VOLTAGEInput voltage − 0.5 VDC @ 2 A

OUTPUT CURRENT2 A per channel; 10 A total maximum

04Installation & EnvironmentPublished model and system data

LON COMMUNICATIONTransformer-isolated; 78.5 kbps

OPERATING TEMPERATURE−40 to +85 °C

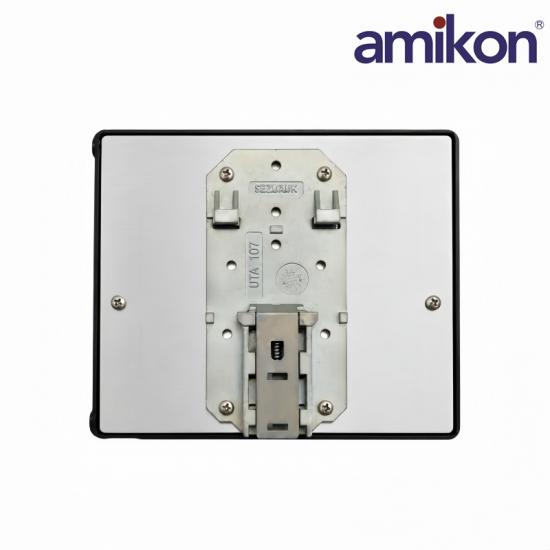

MOUNTING / SHIP WEIGHTDIN rail / 2.0 lb (0.90 kg)

TERMINAL WIRE SIZE0.75–4 mm² (18–12 AWG)

DET-TRONICS EQ3700DW PRODUCT SUPPORT

Frequently Asked Questions

Configuration, application, installation and ordering guidance for EQ3700DW.

How is EQ3700DW identified for ordering?

Use model EQ3700DW with part number 007371-003; the D code specifies DIN-rail mounting and W specifies FM/CSA/ATEX/IECEx approvals.

How are the eight DCIO channels configured?

Each channel is individually configured as an input or output with the required supervision mode.

Which field devices connect to input channels?

Input channels accept dry-contact devices such as heat, smoke or unitized flame detectors.

Which loads can output channels operate?

Output channels support 24 VDC signaling or releasing loads up to 2 A per channel.

Which wiring-supervision options are supported?

Select none, open-circuit detection, or open-and-short-circuit detection for the connected field circuit.

How is the module integrated into an EQP network?

The module communicates on the transformer-isolated LON/SLC at 78.5 kbps and must be configured in the EQP system.

Which details should be verified before replacement ordering?

Confirm EQ3700DW, part number 007371-003, DIN-rail mounting, W approvals, channel configuration and the installed EQP system requirements.
