Manufacturer : EATON

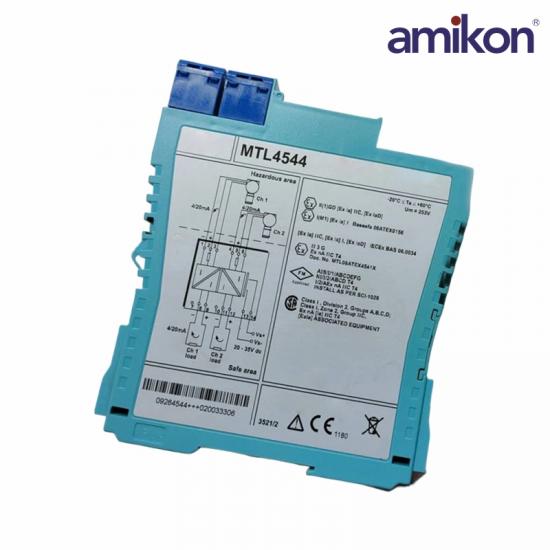

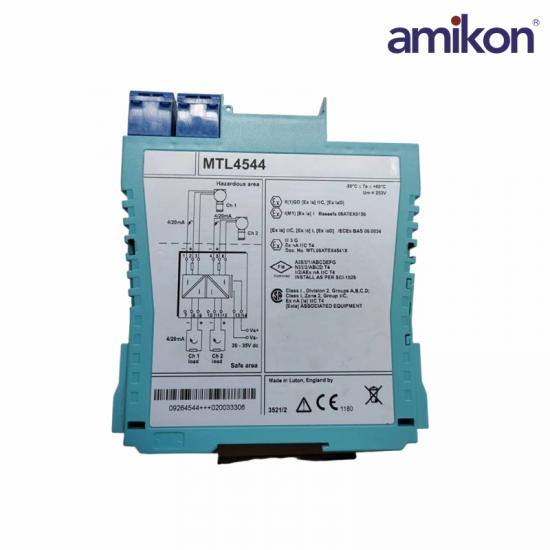

Product No. : MTL4544

Product Type : Repeater Power Supply

Signal range: 4 to 20mA

Under/over-range: 0 to 24mA

Safe-area circuit ripple : < 50µA peak-to-peak

Hazardous-area input

Signal range: 0 to 24mA (including over-range)

Transmitter voltage: 16.5V at 20mA

Transfer accuracy at 20°C : Better than 15µA

Temperature drift : < 0.8µA/°C

The MTL4544 provides fully-floating dc supplies for energising twoconventional 2-wire or 3-wire 4/20mA or HART transmitters located ina hazardous area,and repeats the current in other circuits to drive twosafe-area loads.For smart transmitters,the unit allows bi-directionaltransmission of digital communication signals superimposed on the4/20mA loop current. Alternatively, the MTL4544 acts as a currentsink for a safe-area connection rather than driving a current into theload.Separately powered current sources, such as 4-wire transmitterscan be connected but will not support HART communication.
