Description：

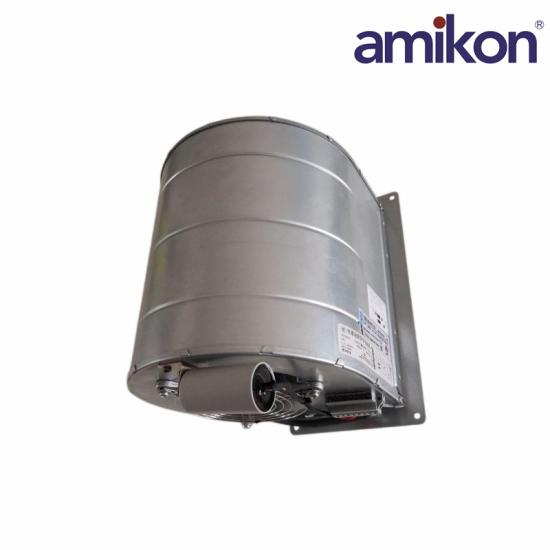

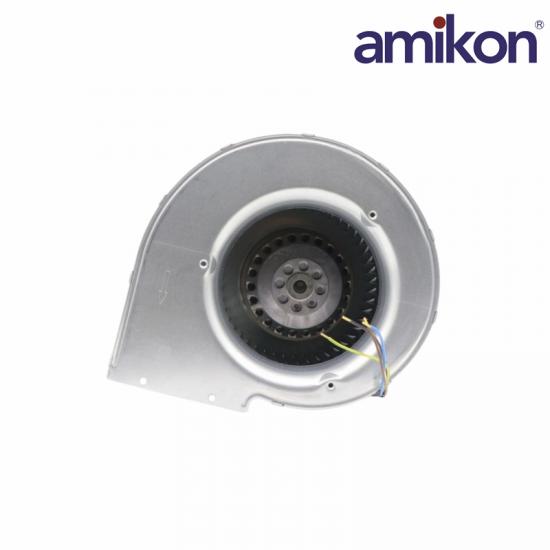

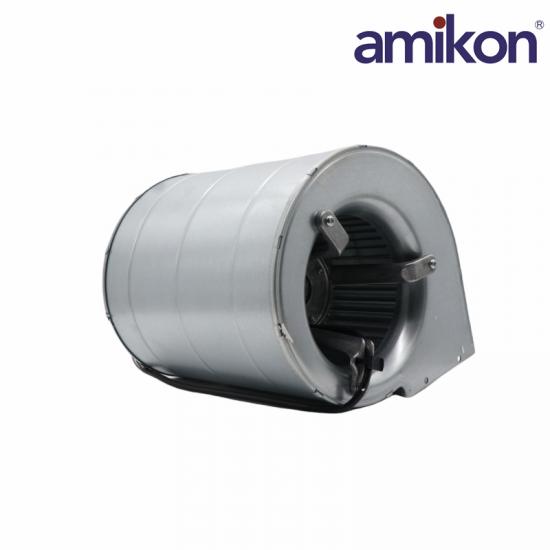

The ebm-papst D3G146-AH50-16 is a centrifugal cooling fan and dual-inlet EC blower designed for cooling applications associated with industrial inverters and variable speed drives. Its configuration provides forced-air cooling for equipment where continuous airflow is required during operation.

The D3G146-AH50-16 operates from a 200–277 V power supply and supports both 50 Hz and 60 Hz frequencies. This specified voltage and frequency range allows the blower to operate within the stated electrical supply conditions of compatible industrial equipment.

The unit has a rated current draw of 1.2 A. Together with its specified operating voltage, this electrical characteristic defines the stated power requirements of the blower.

For rotational performance, the D3G146-AH50-16 operates at 1700 RPM. This operating speed supports the centrifugal airflow function required for cooling industrial inverter and variable-speed-drive equipment.

Specification：

Frequently asked questions

Q : What is the rated voltage and power of the D3G146-AH50-16 fan?
A: It operates on a single-phase wide voltage input of 200–277 V AC at 50/60 Hz, with a rated power consumption of 165 W.

Q : What are its maximum airflow and speed ratings?
A: Under optimal conditions, it delivers a maximum airflow of 1,125 m³/h at a nominal speed of 1,700 RPM.

Q : How do I control the speed of the D3G146-AH50-16?
A: The onboard control electronics support dual control inputs: a 0–10 VDC linear signal or a PWM (Pulse Width Modulation) signal.

Q : What is the permissible ambient temperature operating range?
A: It is designed to safely operate in ambient factory temperatures ranging from -25 °C up to +60 °C.

Product Applications

Inverters and Electrical : Dedicated cooling fans for high-power inverters, servo drives, and industrial control cabinets, ensuring stable operation under high heat loads.
Ventilation and Air Conditioning (HVAC): Used in precision air conditioning, fresh air systems, fan filter units (FFUs), and various ductwork for supply and return air.
Refrigeration and Heating Equipment: Installed in commercial freezers, refrigerated display cases, hot air blowers, or precision temperature and humidity control equipment, providing continuous and reliable airflow circulation.
Rail Transportation and Industrial Machinery: Used in the electrical cooling systems of rail vehicles and in the forced convection of specific industrial aging chambers and drying equipment.
